2003 Kawasaki KL250G Super Sherpa Meter(S) OEM Parts Diagram

Submodel KL250-G7 Super Sherpa (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER(S)

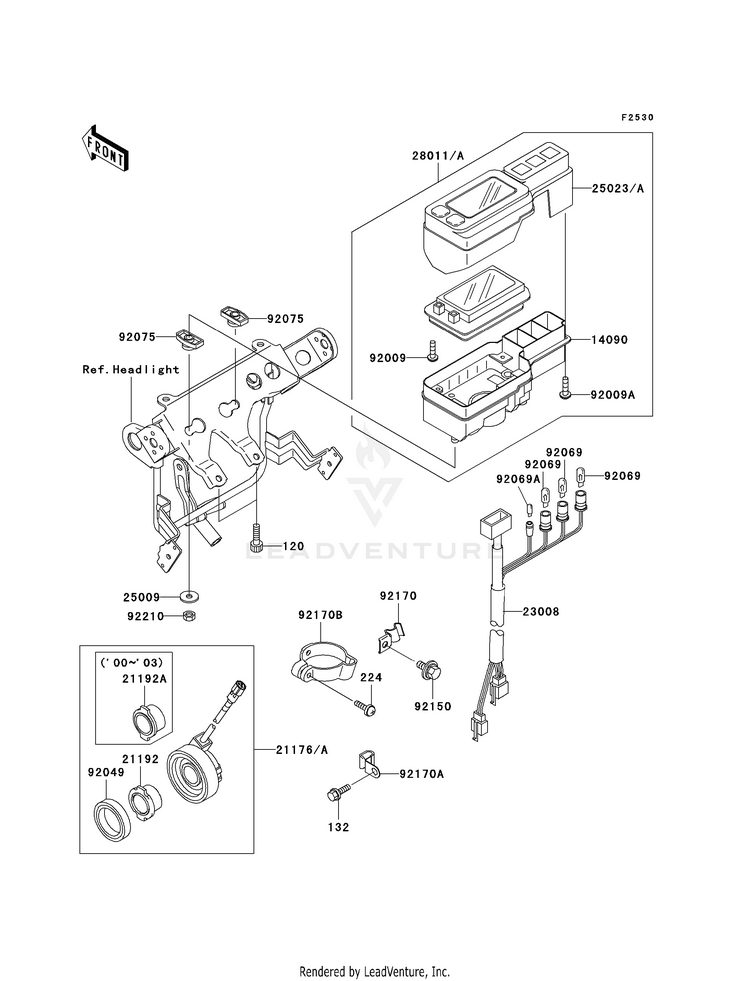

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CA0612

(replaces part #
120P0612)

BOLT-SOCKET,6X12
10+ In-Stock
132132BA0608

(replaces part #
132G0608)

BOLT-FLANGED-SMALL,6X8
10+ In-Stock
1409014090-1903COVER,METER CASE,LWR
Usually ships in 7-10 business days
21176A21176-0012

(replaces part #
21176-1091)

SENSOR,SPEED
Usually ships in 7-10 business days
21192A21192-0001

(replaces part #
21192-1051)

MAGNET,SPEED SENSOR
3 In-Stock
224224AA0520

(replaces part #
224B0520)

SCREW-PAN-WP-CROS
2 In-Stock
2300823008-1579SOCKET-ASSY,METER
Usually ships in 7-10 business days
2500992200-2276

(replaces part #
25009-004)

WASHER,5.2X16X1.2
7 In-Stock
2502325023-1245COVER-METER CASE,UPP | [CN]
Not Shipping
25023A25023-1250COVER-METER CASE,UPP | [US]
Usually ships in 7-10 business days
2801128011-1190METER,DIGITAL | [CN]
Not Shipping
28011A28011-1195METER,DIGITAL,MPH | [US]
Usually ships in 7-10 business days
9200992009-1326

(replaces part #
92009-1028)

SCREW,3X12
Usually ships in 7-10 business days
92009A92009-1592SCREW,TAPPING,3X14
Usually ships in 7-10 business days
9204992049-1172SEAL-OIL,METER GEAR CASE
2 In-Stock
9206992069-1007BULB,12V 3.4W,T10
10+ In-Stock
92069A92069-1068BULB,14V 3W,T6.5
9 In-Stock
9207592075-1581DAMPER,METER BRACKET
3 In-Stock
9215092150-1435BOLT,6X12
10+ In-Stock
9217092170-1782CLAMP,HARNESS
Usually ships in 7-10 business days
92170A92170-1804CLAMP
Usually ships in 7-10 business days
92170B92170-1852CLAMP,METER HARNESS
Usually ships in 7-10 business days
9221092210-1124NUT
4 In-Stock
