2003 Kawasaki KL250G Super Sherpa Owner's Tools OEM Parts Diagram

Submodel KL250-G7 Super Sherpa (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

OWNER'S TOOLS

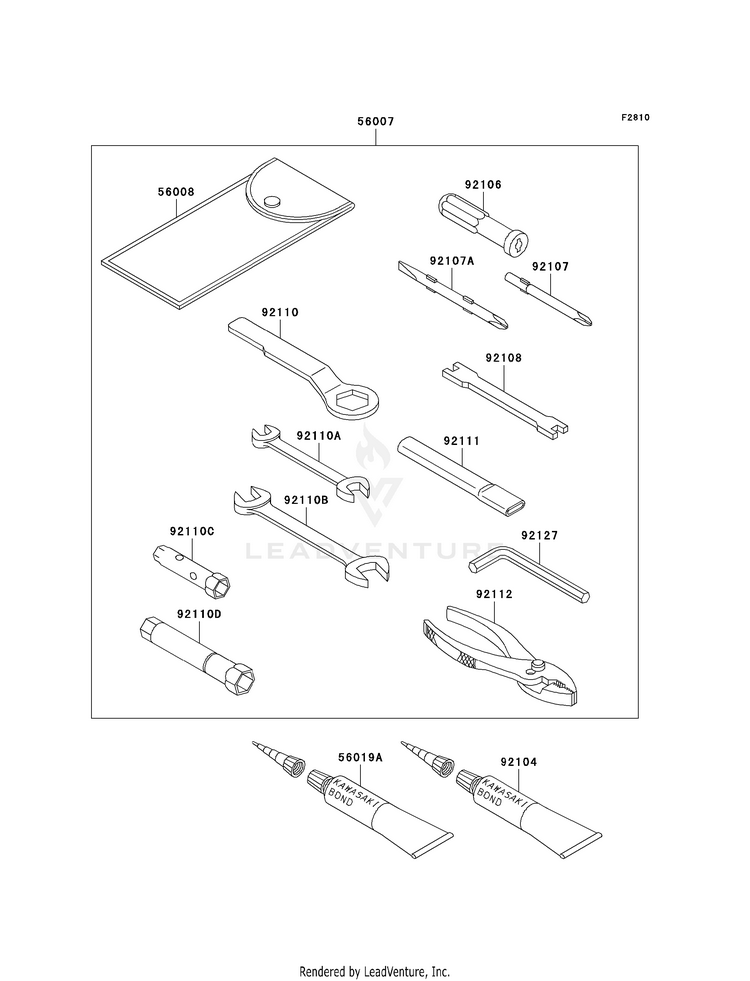

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
5600756007-1408TOOL-KIT
Not Shipping
5600856008-1075BAG,TOOL
Usually ships in 7-10 business days
56019A56019-120GASKET-LIQUID,TB1211,WHITE
Usually ships in 7-10 business days
9210492104-1003GASKET-LIQUID,TB1105,BLACK
Usually ships in 7-10 business days
9210692106-1001GRIP-SCREW DRIVER
Usually ships in 7-10 business days
9210792107-1002

(replaces part #
92107-005)

TOOL-DRIVER,#3PHILLIPS
1 In-Stock
92107A92107-1052

(replaces part #
92107-1051)

TOOL-DRIVER,#2PHILLIPS&SLOT
1 In-Stock
9210892108-011TIGHTENER,SPOKE
Usually ships in 7-10 business days
9211092110-1148TOOL-WRENCH,BOX END,22MM
Usually ships in 7-10 business days
92110A92110-1152TOOL-WRENCH,OPEN END,10X12
Usually ships in 7-10 business days
92110B92110-1153TOOL-WRENCH,OPEN END,14X17
Usually ships in 7-10 business days
92110C92110-1160TOOL-WRENCH,BOX,8&10MM
Usually ships in 7-10 business days
92110D92110-1172TOOL-WRENCH,BOX,16MM
Usually ships in 7-10 business days
9211192111-1052

(replaces part #
92111-1051)

TOOL-BAR
Usually ships in 7-10 business days
9211292112-003

(replaces part #
92112-1001)

TOOL-PLIERS
Usually ships in 7-10 business days
9212792127-003TOOL-WRENCH,ALLEN,6MM
Usually ships in 7-10 business days
