2003 Kawasaki KL250G Super Sherpa Transmission OEM Parts Diagram

Submodel KL250-G7 Super Sherpa (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

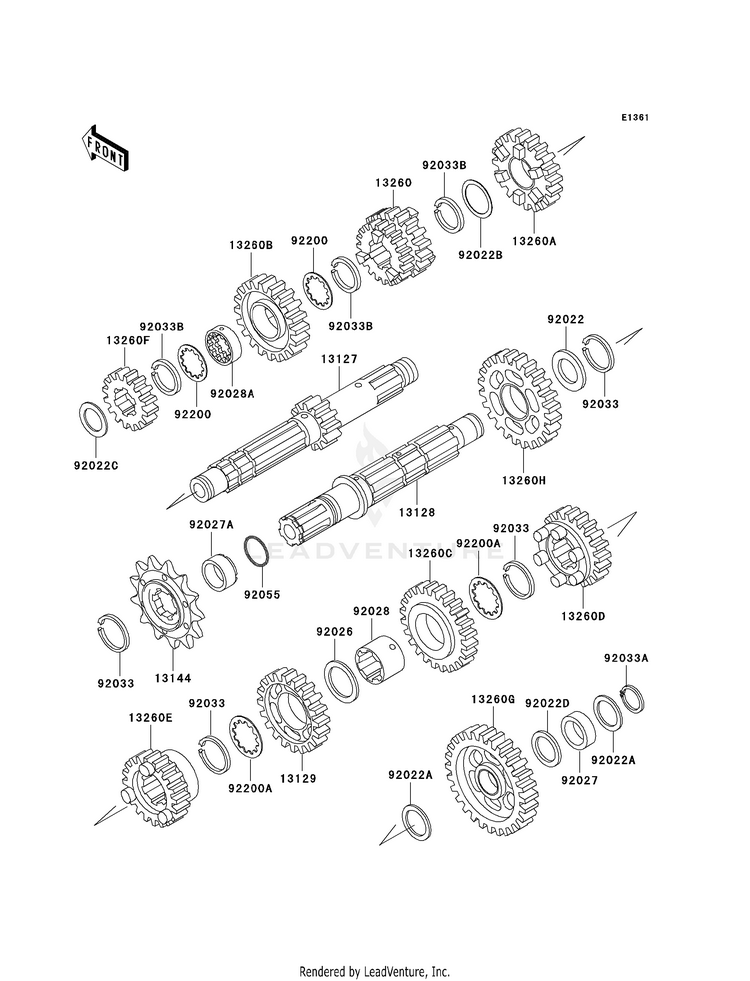

TRANSMISSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1312713127-1258SHAFT-TRANSMISSION IN
Usually ships in 7-10 business days
1312813128-1224SHAFT-TRANSMISSION OU
Usually ships in 7-10 business days
1312913129-1650GEAR,OUTPUT 3RD,27T
Usually ships in 7-10 business days
1314413144-1237SPROCKET-OUTPUT,14T
2 In-Stock
1326013260-1656GEAR,INPUT 3RD&4TH,18
Usually ships in 7-10 business days
13260A13262-1528

(replaces part #
13260-1657)

GEAR,INPUT 5TH,26T
Usually ships in 7-10 business days
13260B13260-1658GEAR,INPUT TOP,27T
Usually ships in 7-10 business days
13260C13260-1660GEAR,OUTPUT 4TH,31T
Usually ships in 7-10 business days
13260D13260-1661GEAR,OUTPUT 5TH,25T
Usually ships in 7-10 business days
13260E13260-1662GEAR,OUTPUT TOP,23T
Usually ships in 7-10 business days
13260F13260-1672GEAR,INPUT 2ND,16T
Usually ships in 7-10 business days
13260G13260-1673GEAR,OUTPUT LOW,34T
Usually ships in 7-10 business days
13260H13260-1674GEAR,OUTPUT 2ND,34T
Usually ships in 7-10 business days
9202292022-159WASHER,25.3X30X0.5
6 In-Stock
92022A92022-1614WASHER,17.3X25X0.5
3 In-Stock
92022B92022-198WASHER,22.3X27X0.5
Usually ships in 7-10 business days
92022C92022-255WASHER,17.3X28X1
10+ In-Stock
92022D92022-270WASHER,17.3X30X1.4
5 In-Stock
9202692026-079SPACER,30X38X1.0
Usually ships in 7-10 business days
9202792027-1315COLLAR,17X22X8.5
Usually ships in 7-10 business days
92027A92027-1800COLLAR,25X32X15.3
6 In-Stock
AFTERMARKET ALTERNATIVE
$29.00$23.9910+ In-Stock
9202892028-1822BUSHING,OUTPUT 3RD&4TH GEAR
Usually ships in 7-10 business days
92028A92028-1823BUSHING,INPUT TOP GEAR
Usually ships in 7-10 business days
9203392033-026RING-SNAP,24MM
10+ In-Stock
92033A92033-032RING-SNAP
6 In-Stock
92033B92033-1293RING-SNAP
Usually ships in 7-10 business days
9205592055-1293RING-O,21.5X1.5
10+ In-Stock
9220092200-1370WASHER,INPUT
Usually ships in 7-10 business days
92200A92200-1371WASHER,OUTPUT
Usually ships in 7-10 business days
