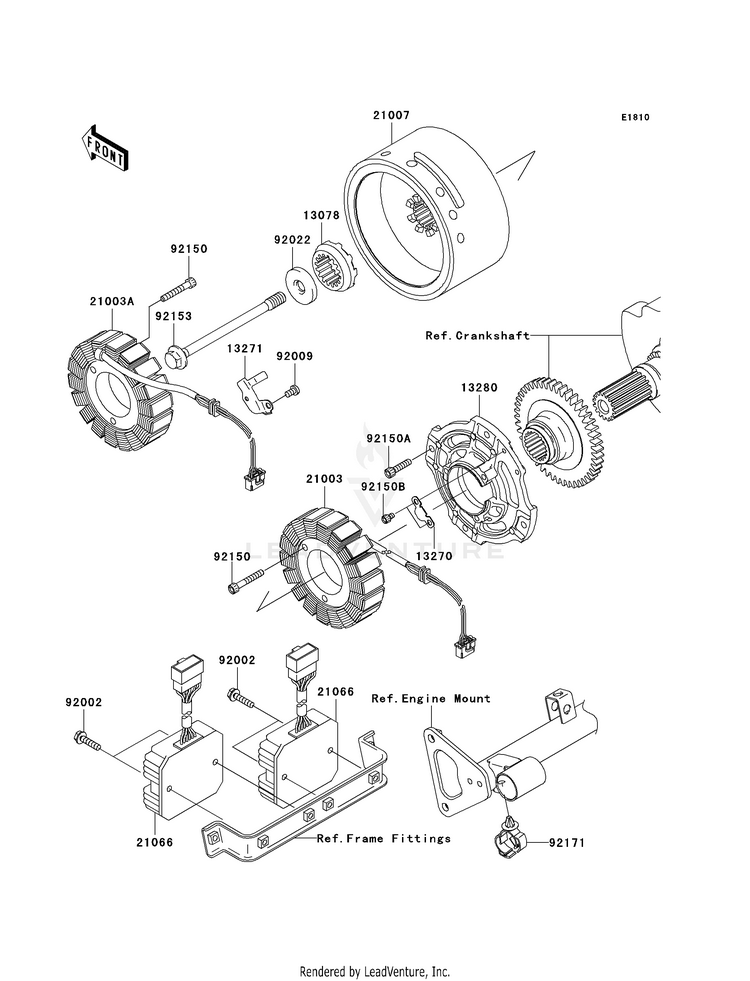

2003 Kawasaki Vulcan Classic VN1600A Generator OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13078	13078-1066	RATCHET	Usually ships in 7-10 business days
13270	13270-1925	PLATE	Usually ships in 7-10 business days
13271	13271-1325	PLATE	Usually ships in 7-10 business days
13280	13280-1069	HOLDER	Usually ships in 7-10 business days
21003	21003-0007	STATOR,INNER	Usually ships in 7-10 business days
21003A	21003-0008	STATOR,OUTER	Usually ships in 7-10 business days
21007	21007-1369	ROTOR	Usually ships in 7-10 business days
21066	21066-1106	REGULATOR-VOLTAGE	Usually ships in 7-10 business days
92002	92002-1086	BOLT,FLANGED,6X25	10+ In-Stock
92009	92009-1768	SCREW	Usually ships in 7-10 business days
92022	92022-1904	WASHER,12X40X6	Usually ships in 7-10 business days
92150	92150-1484	BOLT,SOCKET,6X35	Usually ships in 7-10 business days
92150A	92150-1654	BOLT	Usually ships in 7-10 business days
92150B	92150-1955	BOLT	Usually ships in 7-10 business days
92153	92153-1105	BOLT,12X154	Usually ships in 7-10 business days
92171	92171-0068	CLAMP,CLIP,DIA=20	Usually ships in 7-10 business days
