2003 Kawasaki Vulcan Classic VN1600A Radiator OEM Parts Diagram

Submodel VN1600-A1 Vulcan 1600 Classic (2003)

Shop Aftermarket Parts

RADIATOR

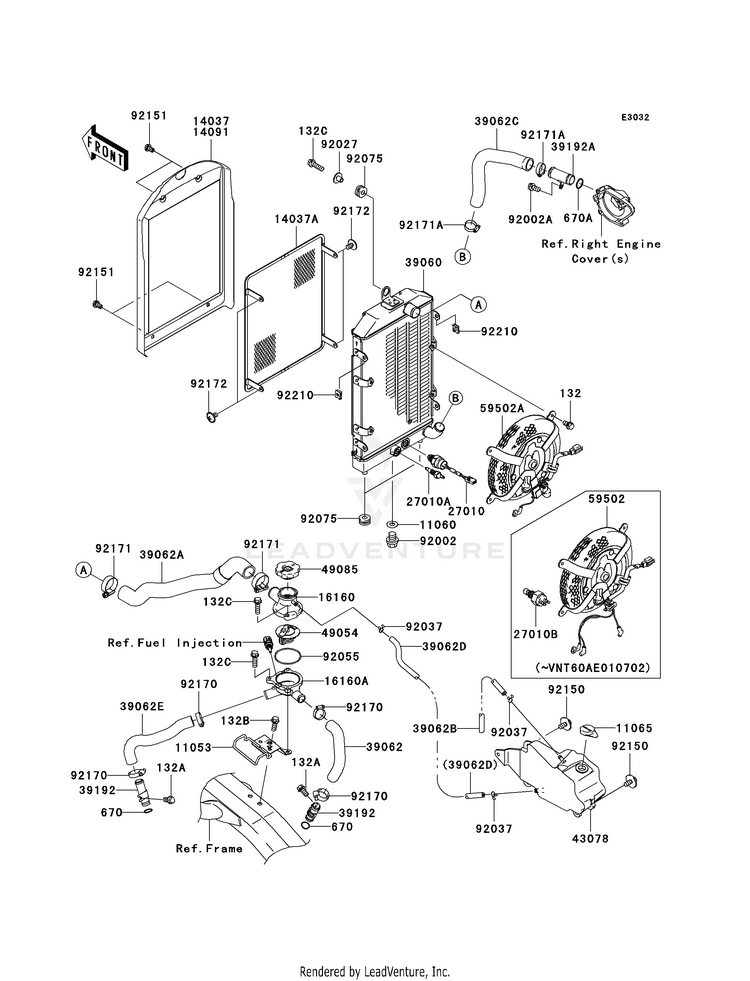

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311053-0009BRACKET,THERMOSTAT CA
Usually ships in 7-10 business days
1106011060-1767GASKET,DRAIN PLUG
3 In-Stock
1106511065-1093CAP,COOLANT
Usually ships in 7-10 business days
132132BB0610

(replaces part #
132J0610)

BOLT-FLANGED-SMALL,6X10
10+ In-Stock
132A132BB0612

(replaces part #
132J0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
132B132BB0616

(replaces part #
132J0616)

BOLT-FLANGED-SMALL,6X16
10+ In-Stock
132C132BB0620

(replaces part #
132J0620)

BOLT-FLANGED-SMALL,6X20
8 In-Stock
1403714091-0414

(replaces part #
14037-0010)

COVER
Usually ships in 7-10 business days
14037A14037-0014SCREEN,INNER
Usually ships in 7-10 business days
1616016160-0775

(replaces part #
16160-1152)

BODY,UPP
Usually ships in 7-10 business days
16160A16160-1361BODY,LWR
Usually ships in 7-10 business days
27010A27010-1305SWITCH
Usually ships in 7-10 business days
27010B27010-1364SWITCH,FAN | ( - VNT60AE010702)
Usually ships in 7-10 business days
3906039060-0019

(replaces part #
39060-0002)

RADIATOR
Usually ships in 7-10 business days
3906239062-0018HOSE-COOLING,RR HEAD-
Usually ships in 7-10 business days
39062A39062-0019HOSE-COOLING,RADIATOR
Usually ships in 7-10 business days
39062B39062-0080

(replaces part #
39062-1258)

HOSE-COOLING,5.5X10.5
Usually ships in 7-10 business days
39062C39062-1850HOSE-COOLING,RADIATOR
Usually ships in 7-10 business days
39062D39062-1934HOSE-COOLING,THERMO-R
Usually ships in 7-10 business days
39062E39062-1935HOSE-COOLING,FR HEAD-
Usually ships in 7-10 business days
3919239192-1094PIPE-WATER
Usually ships in 7-10 business days
39192A39192-1096PIPE-WATER
Usually ships in 7-10 business days
4307843078-1180RESERVOIR
Usually ships in 7-10 business days
4905449054-0004

(replaces part #
49054-1067)

THERMOSTAT
10+ In-Stock
4908549085-1067CAP-ASSY-PRESSURE
5 In-Stock
5950259502-0004FAN-ASSY | ( - VNT60AE010702)
Usually ships in 7-10 business days
670670B2014O RING,14MM
10+ In-Stock
670A670B2018O RING,18MM
10+ In-Stock
9200292002-1311BOLT
Usually ships in 7-10 business days
92002A132BB0612

(replaces part #
92002-1569)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
9202792027-1450COLLAR,L=13.1,BLACK
9 In-Stock
9203792037-147CLAMP,TUBE
10+ In-Stock
9205592055-112RING-O,53.5X2.6
10+ In-Stock
9207592075-1690DAMPER,10X24X12
10+ In-Stock
9215092150-1504

(replaces part #
92150-1392)

BOLT
8 In-Stock
9215192151-1809BOLT,6X10
Not Shipping
9217092170-1032CLAMP,COOLING HOSE
Usually ships in 7-10 business days
9217192171-0179CLAMP
10+ In-Stock
92171A92171-0261CLAMP
10+ In-Stock
9217292172-0005SCREW,6X10
10+ In-Stock
9221092210-1125NUT
10+ In-Stock
