2003 Kawasaki Vulcan Classic VN1600A Taillight(S) OEM Parts Diagram

Submodel VN1600-A1 Vulcan 1600 Classic (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT(S)

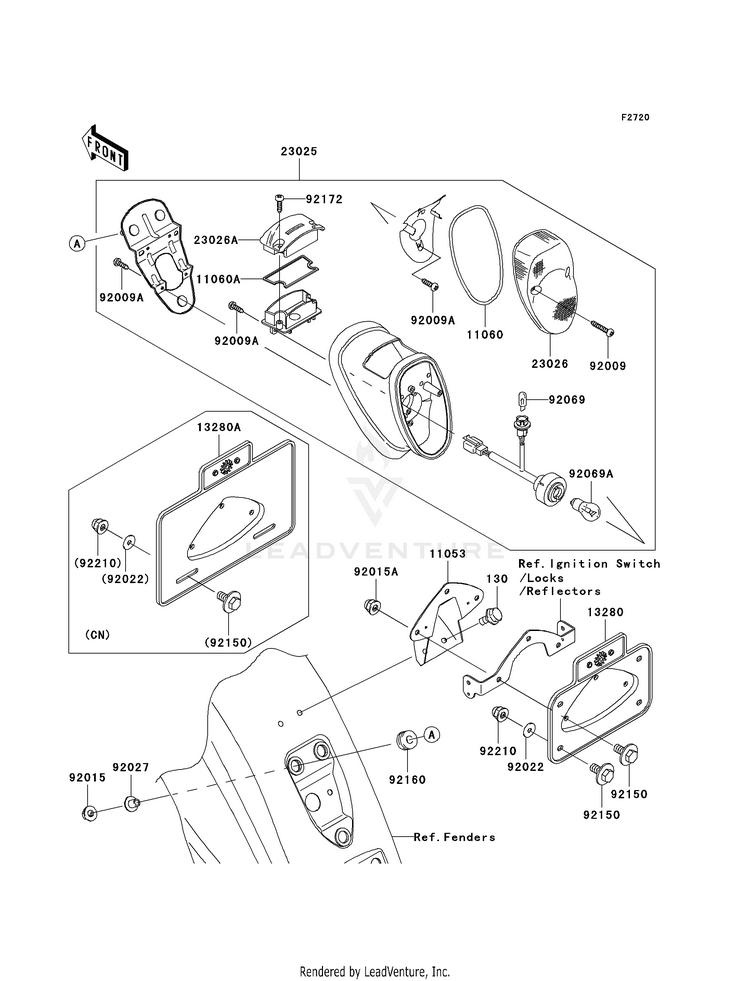

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311053-1220BRACKET,LICENSE PLATE
Usually ships in 7-10 business days
1106011060-1884GASKET,TAIL LAMP
Usually ships in 7-10 business days
11060A11060-1939GASKET,LICENSE LENS
Usually ships in 7-10 business days
130130BB0612

(replaces part #
130J0612)

BOLT-FLANGED,6X12
10+ In-Stock
1328013280-1103HOLDER,LICENSE PLATE | [CA,US]
Usually ships in 7-10 business days
13280A13280-1130HOLDER,LICENSE PLATE | [CN]
Usually ships in 7-10 business days
2302523025-1333LAMP-TAIL
Usually ships in 7-10 business days
2302623026-1220LENS,TAIL
Usually ships in 7-10 business days
23026A23026-1224LENS,LICENSE
Usually ships in 7-10 business days
9200992009-1378SCREW,TAPPING,4X20
10+ In-Stock
92009A92009-1381SCREW,TAPPING,4X12
Usually ships in 7-10 business days
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
92015A92015-1385NUT,CAP,6MM
Usually ships in 7-10 business days
9202292022-1346WASHER,6.5X20X1.6,BLACK | [CA,US]
10+ In-Stock
9202792027-1450COLLAR,L=13.1,BLACK
9 In-Stock
9206992069-1016BULB,12V 5W
6 In-Stock
92069A92069-1084BULB,12V 21/5W
3 In-Stock
9215092150-1133BOLT,6X14 | [CA,US]
2 In-Stock
9216092160-1162DAMPER
10+ In-Stock
9217292172-0084SCREW,TAPPING,4X12
Usually ships in 7-10 business days
9221092210-0003NUT,CAP,6MM | [CA,US]
10+ In-Stock
