THROTTLE

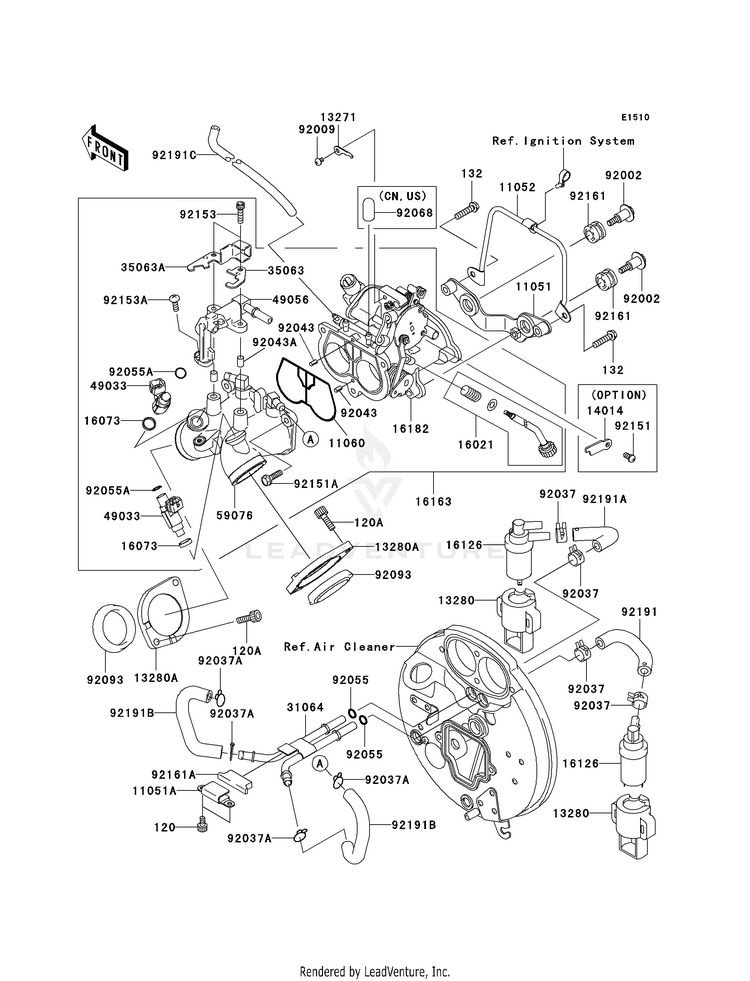

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105111051-1333BRACKET
Usually ships in 7-10 business days
11051A11051-1345BRACKET
Usually ships in 7-10 business days
1105211052-1067BRACKET,HIGH TENSHION
Usually ships in 7-10 business days
1106011060-1928GASKET,THROTTLE BODY
Usually ships in 7-10 business days
120120CB0510

(replaces part #
120S0510)

BOLT-SOCKET,5X10
Usually ships in 7-10 business days
120A120CD0620

(replaces part #
120Z0620)

BOLT-SOCKET
10+ In-Stock
132132BB0625

(replaces part #
132J0625)

BOLT-FLANGED-SMALL,6X25
10+ In-Stock
1327113271-1314PLATE
Usually ships in 7-10 business days
1328013280-1139HOLDER
Usually ships in 7-10 business days
13280A13280-1154HOLDER
Usually ships in 7-10 business days
1401414014-1142PLATE-POSITION | (OPTION)
Usually ships in 7-10 business days
1602116021-1227SCREW-THROTTLE STOP
Usually ships in 7-10 business days
1607316073-3707INSULATOR
9 In-Stock
1612616126-1372VALVE
Usually ships in 7-10 business days
1616316163-1126THROTTLE-ASSY
Usually ships in 7-10 business days
1618216182-0001BODY-THROTTLE
Usually ships in 7-10 business days
3106431064-1242PIPE-COMP
Usually ships in 7-10 business days
3506335063-0030STAY
Usually ships in 7-10 business days
35063A35063-0038STAY
Usually ships in 7-10 business days
4903349033-3707NOZZLE-INJECTION
Usually ships in 7-10 business days
4905649056-0002PIPE-INJECTION
Usually ships in 7-10 business days
5907659076-0002MANIFOLD-INTAKE
Usually ships in 7-10 business days
9200292002-1595BOLT,HEAD COVER
Usually ships in 7-10 business days
9200992009-1903SCREW
Usually ships in 7-10 business days
9203792037-1181CLAMP,HOSE CLIP
10+ In-Stock
92037A92037-1271CLAMP,12.5MM
5 In-Stock
9204392043-1600PIN,THROTTLE BODY
Usually ships in 7-10 business days
92043A92043-1601PIN,DELIVERY PIPE
Usually ships in 7-10 business days
9205592055-0290 RING,8MM
4 In-Stock
92055A92055-1622RING-O,INJECTION NOZZLE
10+ In-Stock
9206892068-006PLUG,12X25 | [CN,US]
10+ In-Stock
9209392093-0072

(replaces part #
92093-1484)

SEAL
6 In-Stock
9215192151-1528BOLT | (OPTION)
Usually ships in 7-10 business days
92151A92151-1587BOLT,THROTTLE BODY
Usually ships in 7-10 business days
9215392153-0378BOLT,5X20
Usually ships in 7-10 business days
92153A92153-0379BOLT
Usually ships in 7-10 business days
9216192161-1058DAMPER
Usually ships in 7-10 business days
92161A92161-1062DAMPER
Usually ships in 7-10 business days
9219192191-1367TUBE,REAR VALVE,RED
Usually ships in 7-10 business days
92191A92191-1368TUBE,FRONT VALVE,BLUE
Usually ships in 7-10 business days
92191B92191-1608TUBE
Usually ships in 7-10 business days
92191C92191-1821TUBE,THROTTLE-BOOST S
