2003 Kawasaki Vulcan Nomad VN1500Fi Footrests OEM Parts Diagram

Submodel VN1500-L4 Vulcan 1500 Nomad Fi (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FOOTRESTS

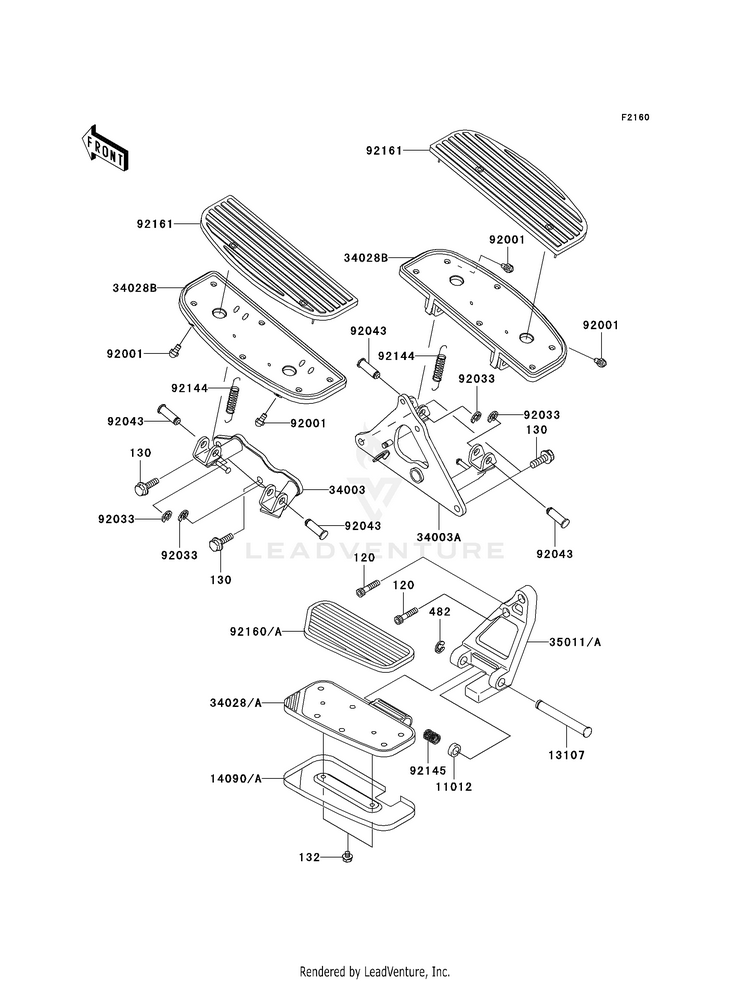

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1498CAP,MUFFLER STAY
Usually ships in 7-10 business days
120120CB0835

(replaces part #
120S0835)

BOLT-SOCKET,8X35
Usually ships in 7-10 business days
130130BB1030

(replaces part #
130J1030)

BOLT-FLANGED,10X30
Usually ships in 7-10 business days
1310713107-1174SHAFT,REAR STEP
Usually ships in 7-10 business days
132132E0608BOLT-FLANGED-SMALL,6X
Usually ships in 7-10 business days
1409014090-1907COVER,REAR STEP,LH
Usually ships in 7-10 business days
14090A14090-1908COVER,REAR STEP,RH
Usually ships in 7-10 business days
3400334003-1501HOLDER-STEP,FR,LH
Usually ships in 7-10 business days
34003A34003-1502HOLDER-STEP,FR,RH
Usually ships in 7-10 business days
3402834028-1459STEP,RR,LH
Usually ships in 7-10 business days
34028A34028-1460STEP,RR,RH
Usually ships in 7-10 business days
34028B34028-1497STEP,FR
Usually ships in 7-10 business days
3501135011-1897STAY,REAR STEP,LH
Usually ships in 7-10 business days
35011A35011-1898STAY,REAR STEP,RH
Usually ships in 7-10 business days
482482EA0200

(replaces part #
482L0200)

CIRCLIP-TYPE-E,12MM
Usually ships in 7-10 business days
9200192001-1905BOLT,BANK SENSOR
Usually ships in 7-10 business days
9203392033-1166RING-SNAP,10MM
9 In-Stock
9204392043-1358PIN,12X37
1 In-Stock
9214492144-1266SPRING
4 In-Stock
9214592145-1130SPRING,REAR STEP
Usually ships in 7-10 business days
9216092160-1904DAMPER,REAR STEP,LH
Usually ships in 7-10 business days
92160A92160-1905DAMPER,REAR STEP,RH
Usually ships in 7-10 business days
9216192161-1154DAMPER,FRONT STEP
Usually ships in 7-10 business days
