2003 Kawasaki Vulcan Nomad VN1500Fi Left Engine Cover(S) OEM Parts Diagram

Submodel VN1500-L4 Vulcan 1500 Nomad Fi (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

LEFT ENGINE COVER(S)

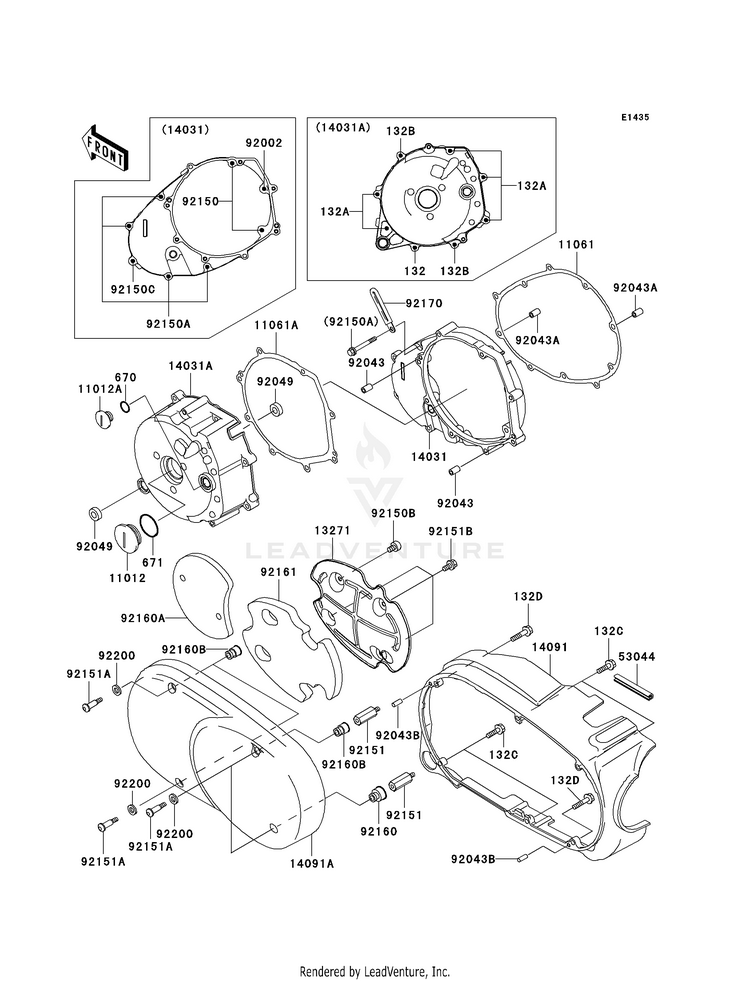

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1362CAP
1 In-Stock
11012A11012-1363CAP,TOP MARK
2 In-Stock
1106111061-1079GASKET,GENERATOR COVE
2 In-Stock
11061A11061-1080GASKET,GENERATOR COVE
2 In-Stock
132132BB0620

(replaces part #
132J0620)

BOLT-FLANGED-SMALL,6X20
8 In-Stock
1327113271-1496PLATE
Usually ships in 7-10 business days
132A132BB0630

(replaces part #
132J0630)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
132B132BB0660

(replaces part #
132J0660)

BOLT,6X60
Usually ships in 7-10 business days
132C132BA0620

(replaces part #
132V0620)

BOLT-FLANGED-SMALL,6X20
10+ In-Stock
132D132BA0630

(replaces part #
132V0630)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
1403114031-1348COVER-GENERATOR,IN
Usually ships in 7-10 business days
14031A14031-1349COVER-GENERATOR,OUT
Usually ships in 7-10 business days
1409114091-1206COVER,LH,INNER
Usually ships in 7-10 business days
14091A14091-1297COVER,LH,OUTER
Usually ships in 7-10 business days
5304453044-1312TRIM
Usually ships in 7-10 business days
670670B2018O RING,18MM
10+ In-Stock
671671B2540O RING,40MM
6 In-Stock
9200292002-1566BOLT,6X40
1 In-Stock
9204392043-1262PIN,4.2X6X12
9 In-Stock
92043A92043-1263PIN,6.2X8X14
10+ In-Stock
92043B92043-1690PIN,6X16
Usually ships in 7-10 business days
9204992049-1398SEAL-OIL,VB13193
7 In-Stock
92150132BB0630

(replaces part #
92150-1021)

BOLT-FLANGED-SMALL,6X30
10+ In-Stock
92150A132BB0625

(replaces part #
92150-1779)

BOLT-FLANGED-SMALL,6X25
10+ In-Stock
92150B92150-1864BOLT,SPROCKET,6X10
Usually ships in 7-10 business days
92150C92150-1967BOLT,6X35
Usually ships in 7-10 business days
9215192151-1062BOLT
Usually ships in 7-10 business days
92151A92151-1796BOLT,L=32
8 In-Stock
92151B92151-1884BOLT,6X10
Usually ships in 7-10 business days
9216092160-1718DAMPER
Usually ships in 7-10 business days
92160A92160-1719DAMPER
Usually ships in 7-10 business days
92160B92160-1730DAMPER
Usually ships in 7-10 business days
9216192161-1179DAMPER
Usually ships in 7-10 business days
9217092170-1514CLAMP
10+ In-Stock
9220092200-1296WASHER
8 In-Stock
