2003 Kawasaki Vulcan Nomad VN1500Fi Saddlebags (Vn1500-L4) OEM Parts Diagram

Submodel VN1500-L4 Vulcan 1500 Nomad Fi (2003)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SADDLEBAGS (VN1500-L4)

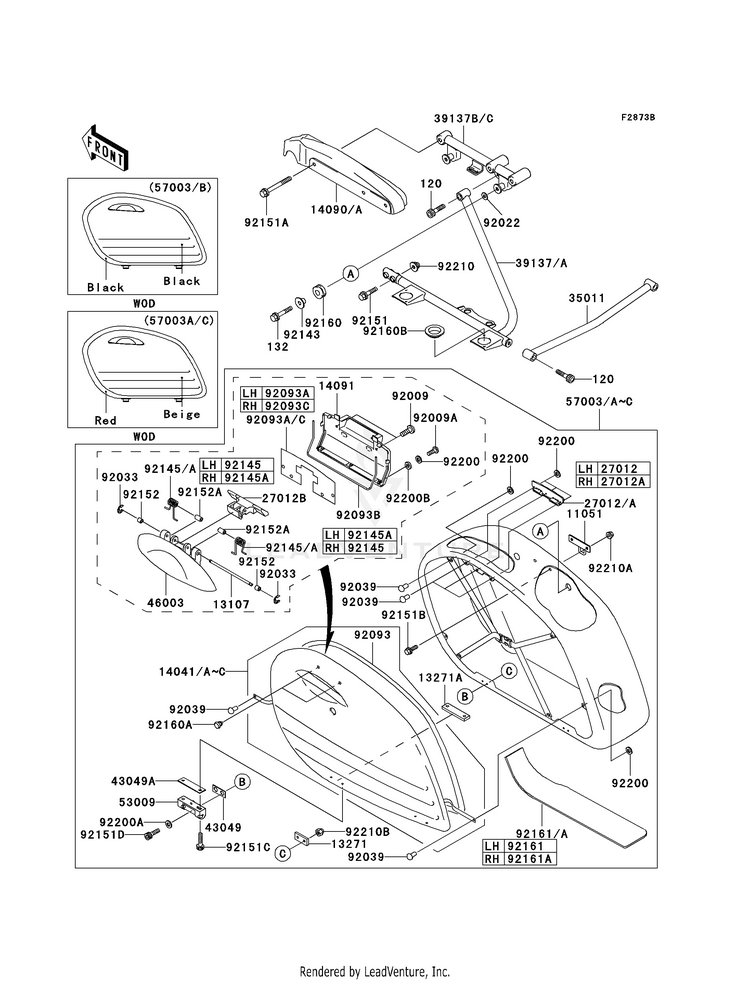

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105111051-1104BRACKET,SIDE BAG BODY
Usually ships in 7-10 business days
120120CB0835

(replaces part #
120S0835)

BOLT-SOCKET,8X35
Usually ships in 7-10 business days
1310713107-1403SHAFT
Usually ships in 7-10 business days
132132BB0845

(replaces part #
132J0845)

BOLT-FLANGED-SMALL
Usually ships in 7-10 business days
1327113271-1146PLATE
Usually ships in 7-10 business days
13271A13271-1147PLATE
Usually ships in 7-10 business days
1404114041-1130-B5COVER-COMP,SIDE BAG,L
Usually ships in 7-10 business days
14041A14041-1130-X9COVER-COMP,SIDE BAG,L
Usually ships in 7-10 business days
14041B14041-1131-B5COVER-COMP,SIDE BAG,R
Usually ships in 7-10 business days
14041C14041-1131-X9COVER-COMP,SIDE BAG,R
Usually ships in 7-10 business days
1409014090-1894COVER,RR FENDER,LH
Usually ships in 7-10 business days
14090A14090-1895COVER,RR FENDER,RH
Usually ships in 7-10 business days
1409114091-1069COVER,LID MAINTENANCE
Usually ships in 7-10 business days
2701227012-1571HOOK,LOCK PLATE,LH
Usually ships in 7-10 business days
27012A27012-1572HOOK,LOCK PLATE,RH
Usually ships in 7-10 business days
27012B27012-1575HOOK,HANDLE
Usually ships in 7-10 business days
3501135011-1896STAY,SIDE BAG
Not Shipping
3913739137-1067STAY-COMP,SIDE BAG,LH
Usually ships in 7-10 business days
39137A39137-1068STAY-COMP,SIDE BAG,RH
Usually ships in 7-10 business days
39137B39137-1075STAY-COMP,SIDE BAG,LH
Usually ships in 7-10 business days
39137C39137-1076STAY-COMP,SIDE BAG,RH
Usually ships in 7-10 business days
4304943049-1084PACKING
Usually ships in 7-10 business days
43049A43049-1086PACKING
Usually ships in 7-10 business days
4600346003-1505HANDLE,SIDE BAG
Usually ships in 7-10 business days
5300953009-1104HINGE,SIDE BAG
Usually ships in 7-10 business days
5700357003-1084-B5BAG-ASSY,LH,BLACK
Usually ships in 7-10 business days
57003A57003-1084-456BAG-ASSY,LH,RED/BEIGE
Usually ships in 7-10 business days
57003B57003-1085-B5BAG-ASSY,RH,BLACK
Usually ships in 7-10 business days
57003C57003-1085-456BAG-ASSY,RH,RED/BEIGE
Usually ships in 7-10 business days
9200992009-1870SCREW,TAPPING,4X12
Usually ships in 7-10 business days
92009A92009-1871SCREW,TAPPING,3X8
Usually ships in 7-10 business days
9202292022-1317WASHER,8.5X20X1.6,BLACK
10+ In-Stock
9203392033-1300RING-SNAP
Usually ships in 7-10 business days
9203992039-1236RIVET
Usually ships in 7-10 business days
9209392093-1486SEAL,SIDE BAG COVER
Usually ships in 7-10 business days
92093A92093-1487SEAL,SIDE BAG,LH
Usually ships in 7-10 business days
92093B92093-1488SEAL
Usually ships in 7-10 business days
92093C92093-1489SEAL,SIDE BAG,RH
Usually ships in 7-10 business days
9214392143-1450COLLAR
5 In-Stock
9214592145-1175SPRING
Usually ships in 7-10 business days
92145A92145-1200SPRING
Usually ships in 7-10 business days
9215192151-1402BOLT,FLANGED,8X35
Usually ships in 7-10 business days
92151A92151-1403BOLT,FLANGED,8X75
Usually ships in 7-10 business days
92151B92151-1435BOLT,FLANGED,6X16
Usually ships in 7-10 business days
92151C92151-1436BOLT,SOCKET,4X22
Usually ships in 7-10 business days
92151D92151-1437BOLT,SOCKET,4X18
Usually ships in 7-10 business days
9215292152-1121COLLAR
Usually ships in 7-10 business days
92152A92152-1122COLLAR
Usually ships in 7-10 business days
9216092160-1012DAMPER
10+ In-Stock
92160A92160-1976DAMPER
Usually ships in 7-10 business days
92160B92160-1981DAMPER
Usually ships in 7-10 business days
9216192161-1171DAMPER,SIDE BAG,LH
Usually ships in 7-10 business days
92161A92161-1176DAMPER,SIDE BAG,RH
Usually ships in 7-10 business days
9220092200-1442WASHER,3MM
Usually ships in 7-10 business days
92200A92200-1443WASHER,4MM
Usually ships in 7-10 business days
92200B92200-1444WASHER,3MM
Usually ships in 7-10 business days
9221092210-1161NUT,CAP,8MM
Usually ships in 7-10 business days
92210A92210-1167NUT,CAP,6MM
Usually ships in 7-10 business days
92210B92210-1168NUT,CAP,4MM
Usually ships in 7-10 business days
