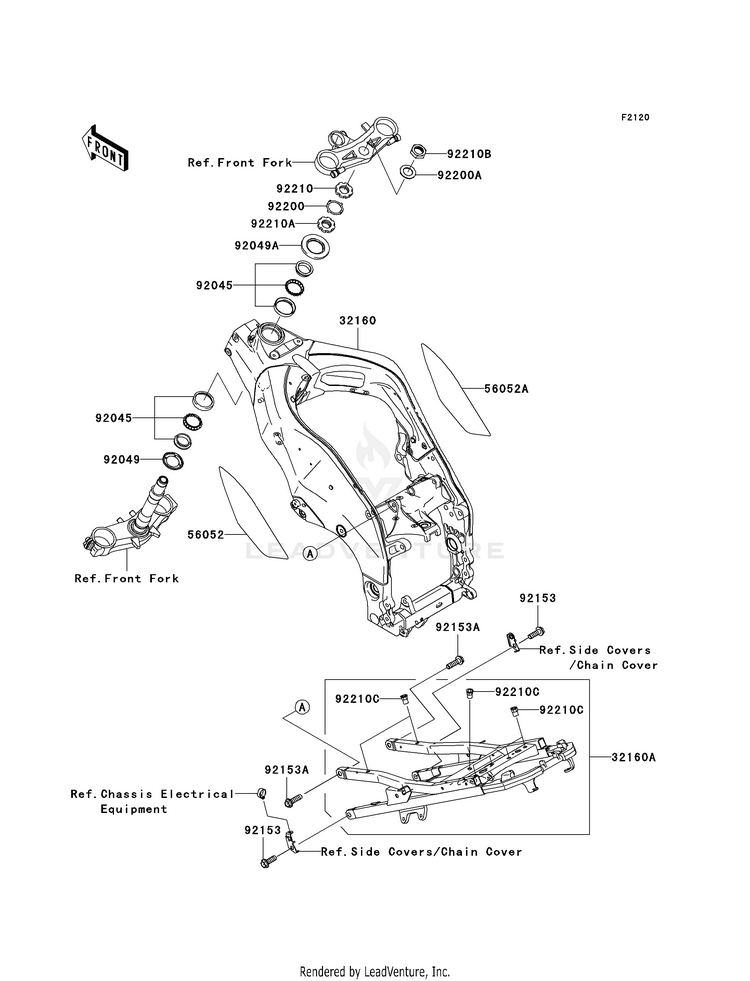

2005 Kawasaki Ninja ZX-10R Frame OEM Parts Diagram
Submodel ZX1000-C2 Ninja ZX-10R (2005)
FRAME
Stuck? Click here for OEM ordering tips.
Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)
Click and drag to reposition image. Use mouse wheel to zoom in and out.
