2005 Kawasaki Vulcan Nomad VN1600D Chassis Electrical Equipment OEM Parts Diagram

Submodel VN1600-D1 Vulcan 1600 Nomad (2005)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

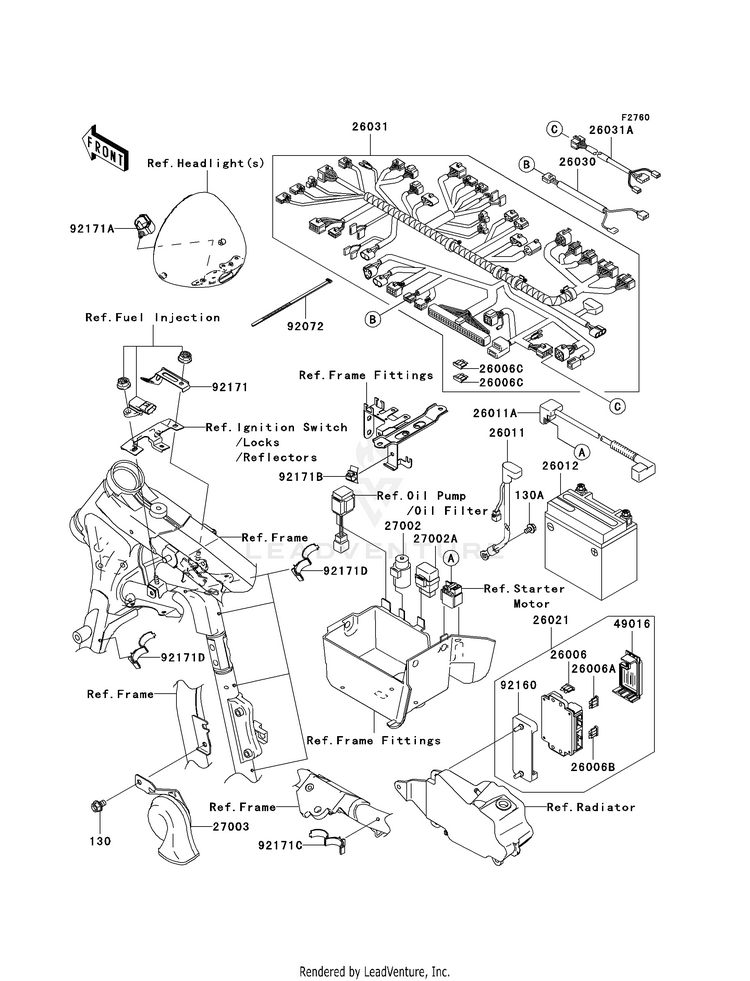

CHASSIS ELECTRICAL EQUIPMENT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BB0812

(replaces part #
130J0812)

BOLT-FLANGED,8X12
8 In-Stock
130A130BA0610

(replaces part #
130V0610)

BOLT-FLANGED,6X10
10+ In-Stock
2600626006-1006FUSE,BLADE,30A,GREEN
Usually ships in 7-10 business days
26006A26006-1007FUSE,BLADE,10A,RED
Usually ships in 7-10 business days
26006B26006-1061FUSE,BLADE,15A,BLUE
Usually ships in 7-10 business days
26006C26006-1075FUSE,15A
Usually ships in 7-10 business days
2601126011-0007WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
26011A26011-0018WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
2601226012-0954

(replaces part #
26012-1371)

BATTERY,FTZ16-BS,12V 18AH
Usually ships in 7-10 business days
2602126021-0076

(replaces part #
26021-0002)

JUNCTION BOX
Not Shipping
2603026030-1450HARNESS,SUB
Usually ships in 7-10 business days
2603126031-0478

(replaces part #
26031-0317)

HARNESS,MAIN
Usually ships in 7-10 business days
26031A26031-1077HARNESS,TAIL
Usually ships in 7-10 business days
2700227002-1051RELAY-ASSY
9 In-Stock
27002A27002-1113RELAY-ASSY,SIGNAL LAMP
Usually ships in 7-10 business days
2700327003-0027HORN
Usually ships in 7-10 business days
4901649016-0005COVER-SEAL,FUSE
4 In-Stock
9207292072-1197BAND,L=365
Usually ships in 7-10 business days
9216092160-1650DAMPER,JUNCTION BOX
Usually ships in 7-10 business days
9217192171-0065CLAMP,HARNESS COUPLER
Usually ships in 7-10 business days
92171A92171-0069CLAMP,20MM DIA.
Usually ships in 7-10 business days
92171B92171-1269CLAMP,HARNESS
Usually ships in 7-10 business days
92171C92171-1423CLAMP,10MM DIA.
4 In-Stock
92171D92171-1424CLAMP,15MM DIA.
3 In-Stock
