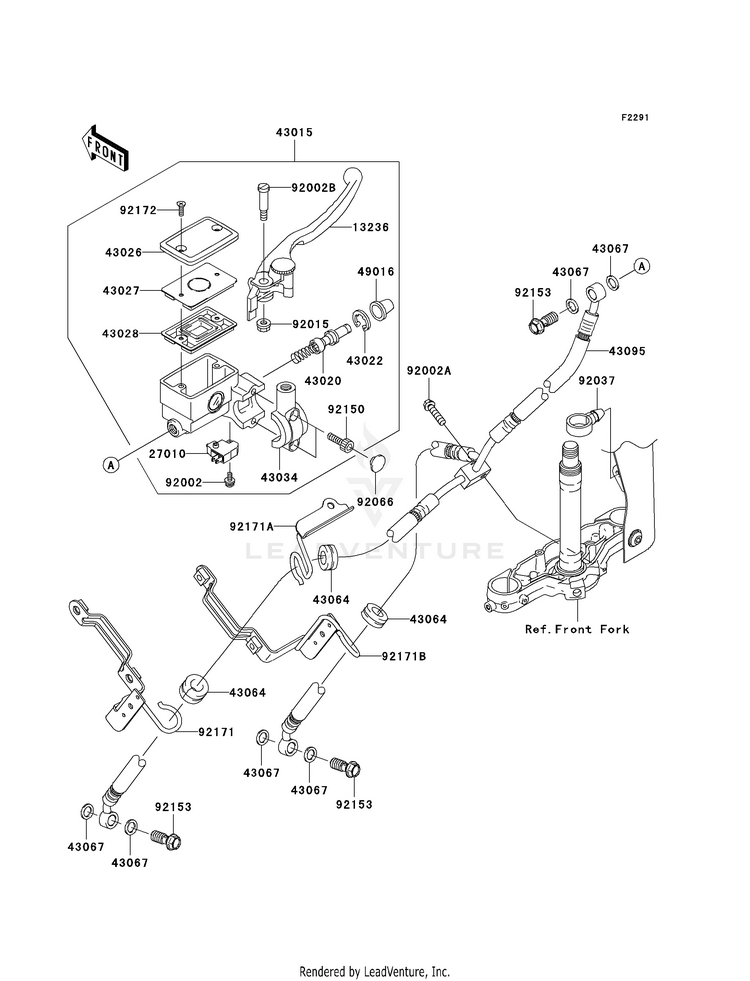

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1323613236-1315LEVER-COMP,FRONT BRAKE
Usually ships in 7-10 business days
2701027010-1170

(replaces part #
27010-0025)

SWITCH,BRAKE
4 In-Stock
4301543015-0025CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-1054PISTON-COMP-BRAKE,FR
1 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.076 In-Stock
4302243022-1010STOPPER-BRAKE,PISTON
8 In-Stock
4302643026-0003CAP-BRAKE
Usually ships in 7-10 business days
4302743027-1059PLATE-DIAPHRAGM
Usually ships in 7-10 business days
4302843028-1058DIAPHRAGM,MASTER CYLINDER
1 In-Stock
4303443034-1172HOLDER-BRAKE
2 In-Stock
4306443064-006GROMMET,HOSE CLAMP
4 In-Stock
4306749091-0001

(replaces part #
43067-001)

WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
4309543095-0188

(replaces part #
43095-0149)

HOSE-BRAKE,FR
Usually ships in 7-10 business days
4901649016-1044COVER-SEAL,MASTER CYLINDER
6 In-Stock
9200292002-1323BOLT,SCREW,4X12
5 In-Stock
92002A92154-0497

(replaces part #
92002-1344)

BOLT,FLANGED,6X25
Usually ships in 7-10 business days
92002B92002-1561BOLT,LEVER SET
1 In-Stock
9201592015-1528NUT,FLANGED,6MM
10+ In-Stock
9203792037-1827CLAMP,HOSE
10+ In-Stock
9206692066-1301PLUG
Usually ships in 7-10 business days
9215092150-1025BOLT,SOCKET,6MM
2 In-Stock
9215392153-0627BOLT,OIL,L=23
10+ In-Stock
9217192171-0115CLAMP,BRAKE HOSE,LH
Usually ships in 7-10 business days
92171A92171-0466CLAMP,BRAKE HOSE,LH
Usually ships in 7-10 business days
92171B92171-0468CLAMP,BRAKE HOSE,RH
Usually ships in 7-10 business days
9217292172-0083SCREW
10+ In-Stock
