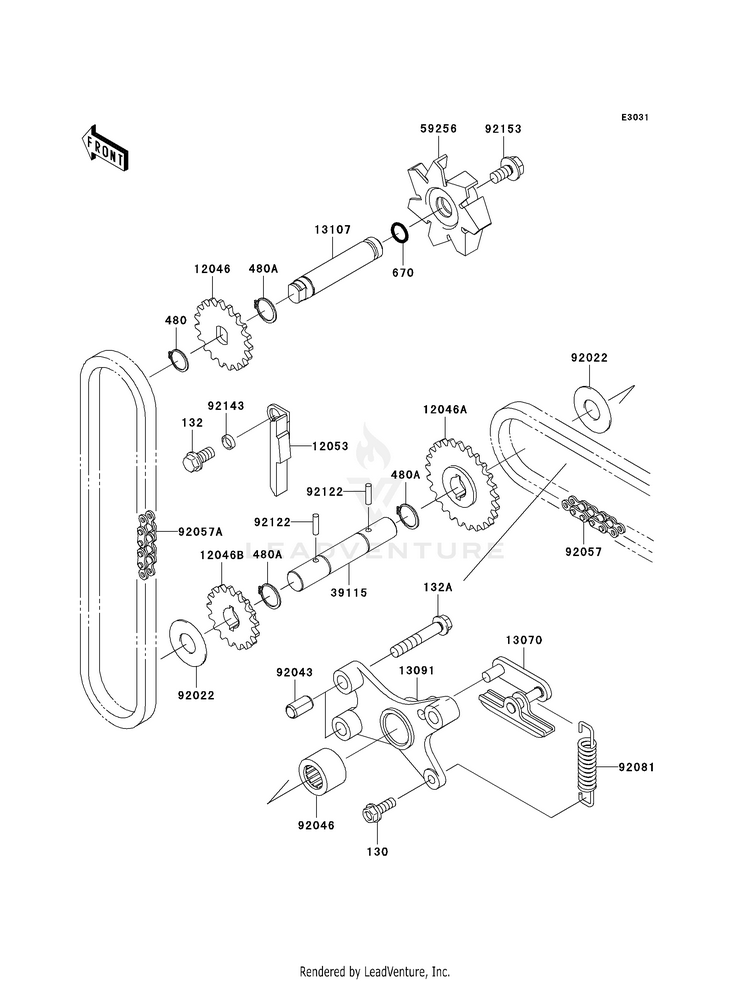

WATER PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1204612046-1079SPROCKET,OIL PUMP,19T
Usually ships in 7-10 business days
12046A12046-1096SPROCKET,CRANK IDLER,25T
Usually ships in 7-10 business days
12046B12046-1097SPROCKET,IDLER,17T
Usually ships in 7-10 business days
1205312053-1227GUIDE-CHAIN
Usually ships in 7-10 business days
130130D0514BOLT-FLANGED
Usually ships in 7-10 business days
1307013070-1178GUIDE
Usually ships in 7-10 business days
1309113091-1471HOLDER
Usually ships in 7-10 business days
1310713107-1196SHAFT,IMPELLER
Usually ships in 7-10 business days
132132BA0612

(replaces part #
132G0612)

BOLT-FLANGED-SMALL,6X12
10+ In-Stock
132A132BA0635

(replaces part #
132G0635)

BOLT-FLANGED-SMALL,6X35
10+ In-Stock
3911539115-1058SHAFT-IDLER
Usually ships in 7-10 business days
480480J1100CIRCLIP-TYPE-C,11MM
10+ In-Stock
480A480J1200CIRCLIP-TYPE-C,12MM
10+ In-Stock
5925659256-1066IMPELLER
Usually ships in 7-10 business days
670670D1509O RING,9MM
10+ In-Stock
9202292022-1852WASHER,12X27.5X1.0
Usually ships in 7-10 business days
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204692046-1163BEARING-NEEDLE,HK1212
Usually ships in 7-10 business days
9205792057-1230CHAIN,BS25HX46L
Usually ships in 7-10 business days
92057A92057-1231CHAIN,BS25HX44L
Usually ships in 7-10 business days
9208192081-1791SPRING,IDLER SHAFT
Usually ships in 7-10 business days
9212292122-1126ROLLER,3X15.8
Usually ships in 7-10 business days
9214392143-1123COLLAR
Usually ships in 7-10 business days
9215392153-0009BOLT,FLANGED,6X12
Usually ships in 7-10 business days
