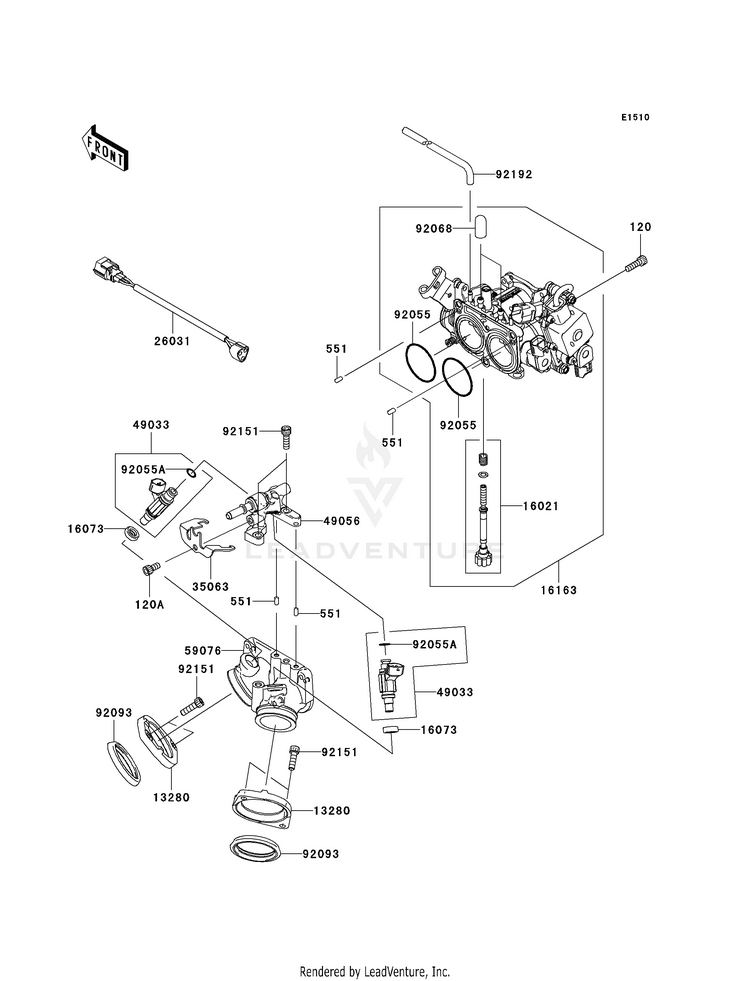

2006 Kawasaki Vulcan Classic VN900 Throttle (B6f/B7f) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
120	120CA0620	BOLT-SOCKET,6X20	10+ In-Stock
120A	120CB0612	BOLT-SOCKET,6X12	Usually ships in 7-10 business days
13280	13280-1154	HOLDER	Usually ships in 7-10 business days
16021	16021-0016	SCREW-THROTTLE STOP	Usually ships in 7-10 business days
16073	16073-3707	INSULATOR	9 In-Stock
16163	16163-0076	THROTTLE-ASSY,TTK34	Usually ships in 7-10 business days
26031	26031-0472	HARNESS	Usually ships in 7-10 business days
35063	35063-0240	STAY	Usually ships in 7-10 business days
49033	49033-0011	NOZZLE-INJECTION	3 In-Stock
49056	49056-0011	PIPE-INJECTION	Usually ships in 7-10 business days
551	551R0408	PIN-DOWEL	Usually ships in 7-10 business days
59076	59076-0003	MANIFOLD-INTAKE	Usually ships in 7-10 business days
92055	92055-0118	RING-O	Usually ships in 7-10 business days
92055A	92055-1622	RING-O,INJECTION NOZZLE	10+ In-Stock
92068	92068-006	PLUG,12X25	10+ In-Stock
92093	92093-0072	SEAL	6 In-Stock
92151	92151-3774	BOLT,SOCKET,6X20	Usually ships in 7-10 business days
92192	92192-0308	TUBE,SENSOR-THROBO	Usually ships in 7-10 business days
