2006 Kawasaki Vulcan Drifter VN800 Starter Motor OEM Parts Diagram

Submodel VN800E6F Vulcan 800 Drifter (2006)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER MOTOR

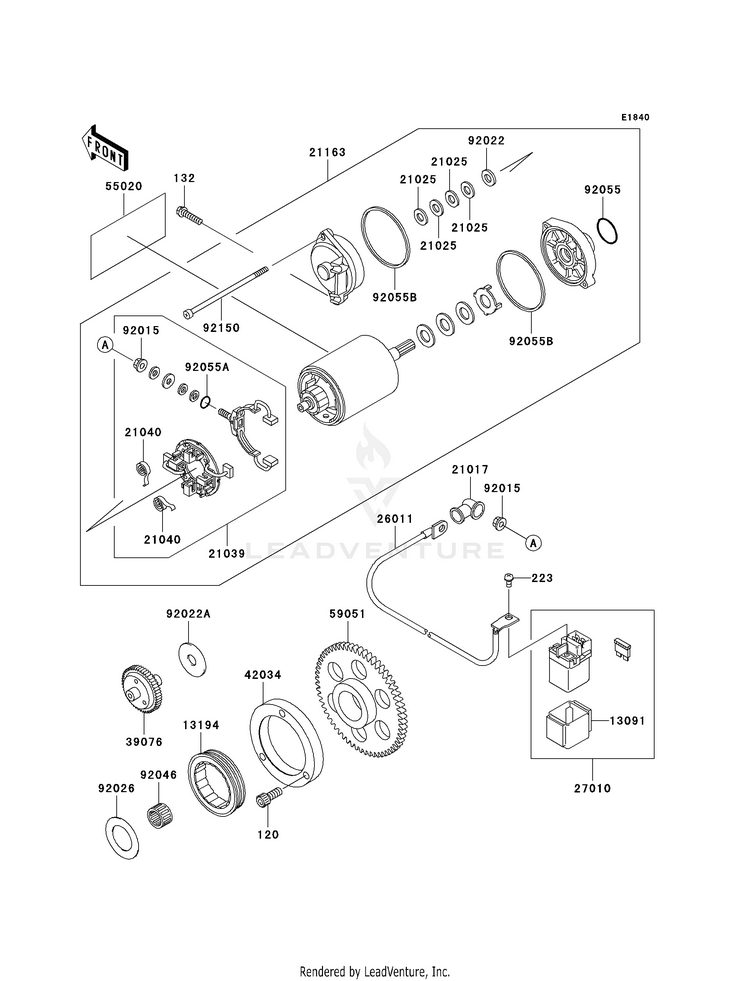

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CB0820

(replaces part #
120Q0820)

BOLT-SOCKET,8X20
Usually ships in 7-10 business days
1309113091-1884HOLDER,MAGNETIC SWITC
Usually ships in 7-10 business days
1319413194-1085CLUTCH-ONEWAY
Usually ships in 7-10 business days
132132BB0625

(replaces part #
132J0625)

BOLT-FLANGED-SMALL,6X25
10+ In-Stock
2101721017-017GROMMET,STARTER TERMINAL
2 In-Stock
2102521025-011WASHER,9.1X18X0.2
Usually ships in 7-10 business days
2103921039-1060BRUSH,CARBON
1 In-Stock
2104021040-1055SPRING-BRUSH
Usually ships in 7-10 business days
2116321163-1263STARTER-ELECTRIC
Usually ships in 7-10 business days
223223AA0510

(replaces part #
223D0510)

SCREW-PAN-WS-CROS,5X10
Usually ships in 7-10 business days
2601126011-1700WIRE-LEAD
Usually ships in 7-10 business days
2701027010-0786

(replaces part #
27010-1327)

SWITCH,MAGNETIC
Usually ships in 7-10 business days
3907639076-1070LIMITER,STARTER IDLE
Usually ships in 7-10 business days
4203442034-1143COUPLING
Usually ships in 7-10 business days
5502055020-1589GUARD,STARTER MOTER
Usually ships in 7-10 business days
5905159051-1130GEAR-SPUR,STARTER,63T
Usually ships in 7-10 business days
9201592015-1476NUT,STARTER MOTOR
Usually ships in 7-10 business days
9202292022-1132WASHER,9.1X18X0.8
Usually ships in 7-10 business days
92022A92022-1664WASHER,12.3X38X2.0
Usually ships in 7-10 business days
9202692026-087SPACER,29.1X47.5X1.2
Usually ships in 7-10 business days
9204692046-1137BEARING-NEEDLE
Usually ships in 7-10 business days
9205592055-1276RING-O
7 In-Stock
92055A92055-1370RING-O,4.5X2.0
4 In-Stock
92055B92055-1381RING-O,STARTER MOTOR
4 In-Stock
9215092150-1913BOLT,STARTER MOTOR
Usually ships in 7-10 business days
