2006 Kawasaki Vulcan Nomad VN1600D Front Fork (D6f) OEM Parts Diagram

Submodel VN1600D6F Vulcan 1600 Nomad (2006)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK (D6F)

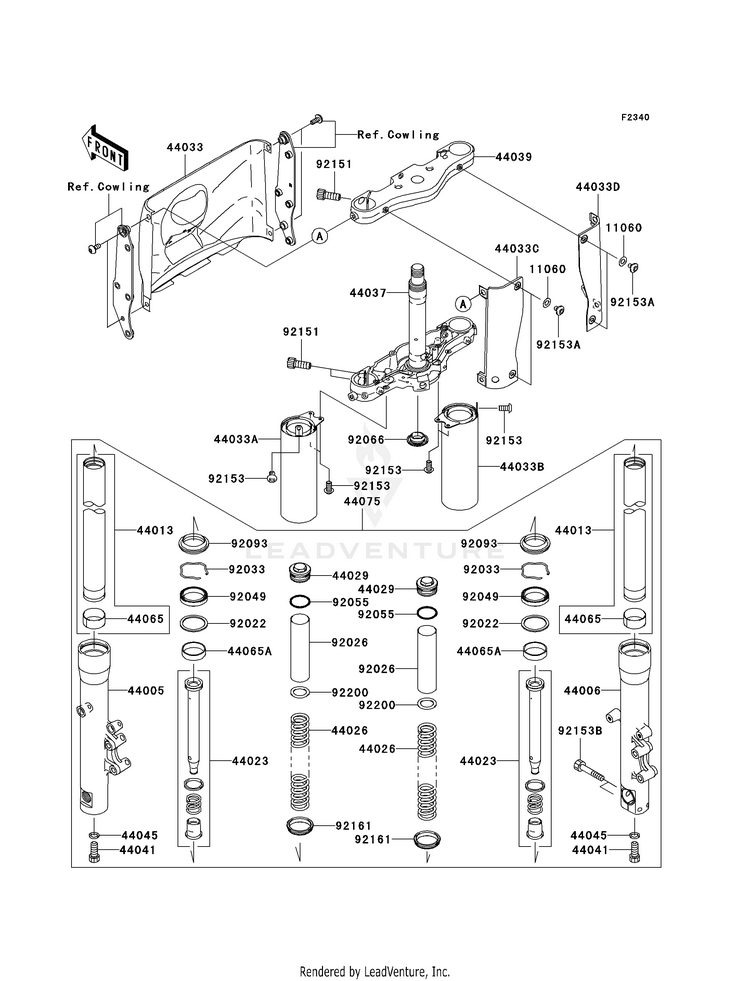

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1994GASKET,6.2X12X0.3
10+ In-Stock
4400544005-1436PIPE-LEFT FORK OUTER
Usually ships in 7-10 business days
4400644006-0006PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-0024PIPE-FORK INNER
Usually ships in 7-10 business days
4402344023-0004CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-0050SPRING-FRONT FORK
Usually ships in 7-10 business days
4402944029-1154SEAT-FORK SPRING
Usually ships in 7-10 business days
4403344033-0013COVER-FORK,CNT
Usually ships in 7-10 business days
44033A44033-0027COVER-FORK,INNER,LH
Usually ships in 7-10 business days
44033B44033-0028COVER-FORK,INNER,RH
Usually ships in 7-10 business days
44033C44033-0029COVER-FORK,RR,LH
Usually ships in 7-10 business days
44033D44033-0031COVER-FORK,RR,RH
Usually ships in 7-10 business days
4403744037-0021HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0019HOLDER-FORK UPPER
Usually ships in 7-10 business days
4404144041-040BOLT,SOCKET,FORK CYLINDER
3 In-Stock
4404544045-057GASKET,FORK CYLINDER
10+ In-Stock
4406544065-0003BUSHING-FRONT FORK
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$47.00$39.9910+ In-Stock
44065A44065-1143BUSHING-FRONT FORK
Usually ships in 7-10 business days
4407544075-0054DAMPER-SET-FORK
Usually ships in 7-10 business days
9202292022-1299WASHER
10+ In-Stock
9202692026-0062SPACER,FORK,L=141.5
Usually ships in 7-10 business days
9203392033-1077RING-SNAP
10+ In-Stock
9204992049-0007SEAL-OIL
10+ In-Stock
9205592055-1123RING-O
8 In-Stock
9206692066-0032PLUG
Usually ships in 7-10 business days
9209392093-1480SEAL,FORK OUTER TUBE
10+ In-Stock
9215192151-1358BOLT,SOCKET,10X25
Usually ships in 7-10 business days
9215392153-0300BOLT
Usually ships in 7-10 business days
92153A92154-1834

(replaces part #
92153-0411)

BOLT,SOCKET,6X10
Usually ships in 7-10 business days
92153B92153-0425BOLT
Usually ships in 7-10 business days
9216192161-1343DAMPER
Usually ships in 7-10 business days
9220092200-1253WASHER
Usually ships in 7-10 business days
