2007 Kawasaki Vulcan Classic VN1600A Frame Fittings OEM Parts Diagram

Submodel VN1600A7F Vulcan 1600 Classic (2007)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME FITTINGS

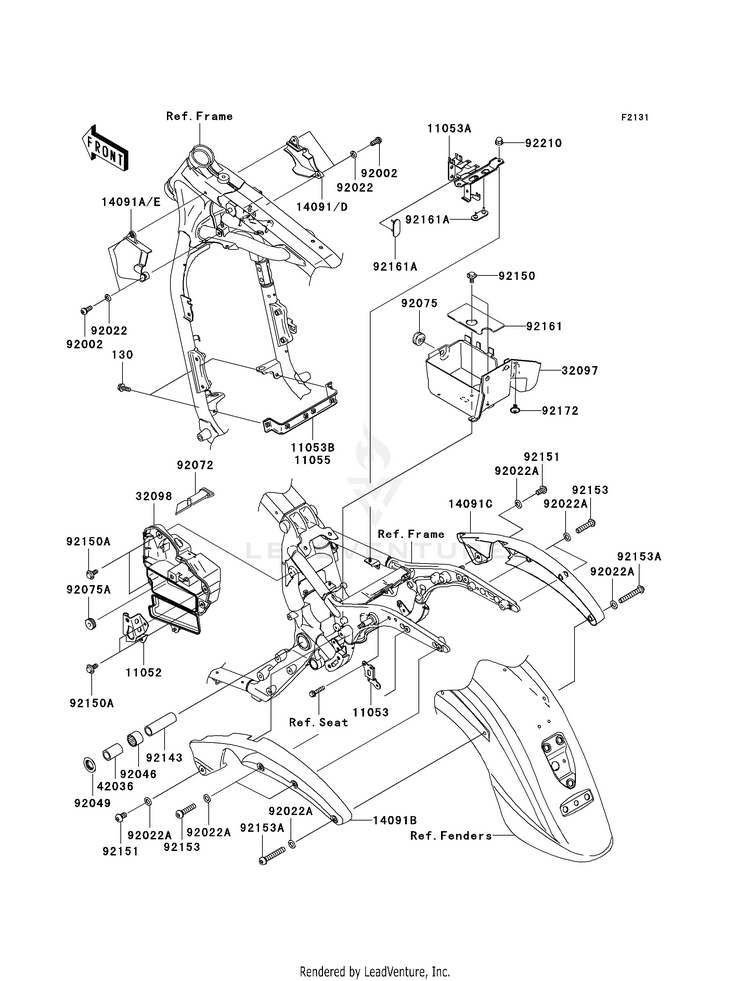

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105211052-1234BRACKET,SIDE COVER LO
Usually ships in 7-10 business days
1105311053-0143BRACKET,HELMET LOCK
Usually ships in 7-10 business days
11053A11053-0289BRACKET,BATTERY BAND
Usually ships in 7-10 business days
11053B11053-0434BRACKET,REGULATOR
Usually ships in 7-10 business days
130130BB0616

(replaces part #
130J0616)

BOLT-FLANGED,6X16
10+ In-Stock
1409114091-0054COVER,HEAD PIPE,RH
Usually ships in 7-10 business days
14091A14091-0092COVER,HEAD PIPE,LH
Usually ships in 7-10 business days
14091B14091-0380COVER,FENDER,LH
Usually ships in 7-10 business days
14091C14091-0381COVER,FENDER,RH
Usually ships in 7-10 business days
3209732097-1192CASE-BATTERY
Usually ships in 7-10 business days
3209832098-1137CASE-TOOL
Usually ships in 7-10 business days
4203642036-1330SLEEVE,L=45
Usually ships in 7-10 business days
9200292002-1700BOLT,6X14
Usually ships in 7-10 business days
9202292022-183WASHER,6.2X11X1.5
8 In-Stock
92022A92022-3043WASHER,PLAIN,8MM
10+ In-Stock
9204692046-1202BEARING-NEEDLE,BM2824
Usually ships in 7-10 business days
9204992049-1181SEAL-OIL,28X34X5.7
4 In-Stock
9207292072-1331BAND
Usually ships in 7-10 business days
9207592075-1067DAMPER
6 In-Stock
92075A92075-1629DAMPER
5 In-Stock
9214392143-1878COLLAR,20.2X27X90
Usually ships in 7-10 business days
9215092150-1133BOLT,6X14
2 In-Stock
92150A92150-1198BOLT,6X16
4 In-Stock
9215192151-1438BOLT,8X14
Usually ships in 7-10 business days
9215392153-0419BOLT,SOCKET,8X35
Usually ships in 7-10 business days
92153A92153-0420BOLT,SOCKET,8X50
Usually ships in 7-10 business days
9216192161-1097DAMPER,BATTERY
Usually ships in 7-10 business days
92161A92161-1214DAMPER,BATTERY BAND
Usually ships in 7-10 business days
9217292172-0005SCREW,6X10
10+ In-Stock
9221092210-0003NUT,CAP,6MM
10+ In-Stock
