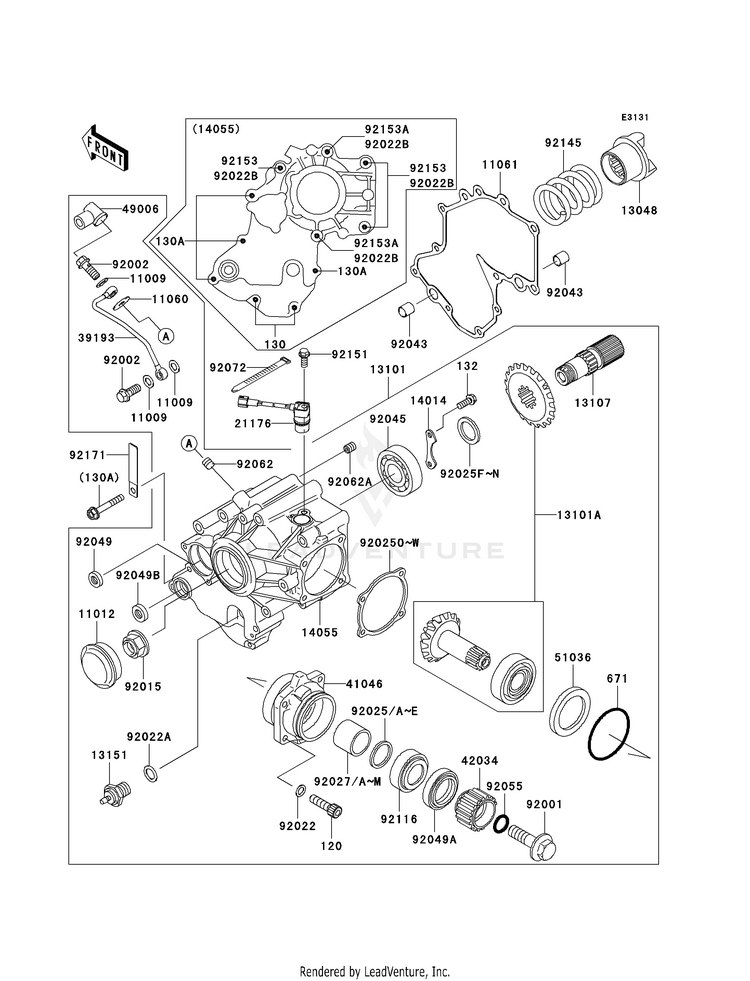

FRONT BEVEL GEAR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1344GASKET,8.2X14X1.0
10+ In-Stock
1101211012-1071CAP
Usually ships in 7-10 business days
1106011060-1872GASKET
Usually ships in 7-10 business days
1106111061-0046GASKET,BEVEL GEAR CAS
Usually ships in 7-10 business days
120120CB0830

(replaces part #
120S0830)

BOLT-SOCKET,8X30
10+ In-Stock
130130CB0630

(replaces part #
130S0630)

BOLT-FLANGED,6X30
Usually ships in 7-10 business days
1304813048-1085CAM-DAMPER
Usually ships in 7-10 business days
130A130CB0640

(replaces part #
130S0640)

BOLT-FLANGED
Usually ships in 7-10 business days
1310113101-0020GEAR-ASSY
Usually ships in 7-10 business days
13101A13101-5088GEAR-ASSY,BEVEL,FR
Usually ships in 7-10 business days
1310713107-1525SHAFT,BEVEL,FR
Usually ships in 7-10 business days
1315113151-1010SWITCH-COMP
Usually ships in 7-10 business days
132132BA0616

(replaces part #
132G0616)

BOLT-FLANGED-SMALL,6X16
10+ In-Stock
1401414014-1136PLATE-POSITION
Usually ships in 7-10 business days
1405514055-0006CASE-GEAR,FRONT BEVEL
Usually ships in 7-10 business days
2117621176-0037SENSOR,SPEED
Usually ships in 7-10 business days
3919339193-1026PIPE-OIL
Usually ships in 7-10 business days
4104641046-1099HOUSING-BEARING
Usually ships in 7-10 business days
4203442034-1091COUPLING,FR DRIVEN
Usually ships in 7-10 business days
4900649006-1041

(replaces part #
49006-1040)

BOOT,DUST
5103651036-1002CUP
Usually ships in 7-10 business days
671671B2565O RING,65MM
10+ In-Stock
9200192001-1169BOLT,FLANGED,12X42
Usually ships in 7-10 business days
9200292002-1429BOLT,BANJO,8X20
Usually ships in 7-10 business days
9201592015-1554NUT,24MM
Usually ships in 7-10 business days
9202292022-1028WASHER,8.5X13X1
10+ In-Stock
92022A92022-1211WASHER
Usually ships in 7-10 business days
92022B410AA0800

(replaces part #
92022-1582)

WASHER-PLAIN-SMALL,8MM
10+ In-Stock
9202592025-1072SHIM,25.2X29.8X1.70
Usually ships in 7-10 business days
92025A92025-1073SHIM,25.2X29.8X1.72
1 In-Stock
92025B92025-1074SHIM,25.2X29.8X1.74
Usually ships in 7-10 business days
92025C92025-1075SHIM,25.2X29.8X1.76
Usually ships in 7-10 business days
92025D92025-1076SHIM,25.2X29.8X1.78
Usually ships in 7-10 business days
92025E92025-1077SHIM,25.2X29.8X1.80
Usually ships in 7-10 business days
92025F92025-1688SHIM,25.3X36X0.15
Usually ships in 7-10 business days
92025G92025-1689SHIM,25.3X36X0.50
Usually ships in 7-10 business days
92025H92025-1690SHIM,25.3X36X0.60
Usually ships in 7-10 business days
92025I92025-1691SHIM,25.3X36X0.70
Usually ships in 7-10 business days
92025J92025-1692SHIM,25.3X36X0.80
Usually ships in 7-10 business days
92025K92025-1693SHIM,25.3X36X0.90
Usually ships in 7-10 business days
92025L92025-1694SHIM,25.3X36X1.00
Usually ships in 7-10 business days
92025M92025-1695SHIM,25.3X36X1.10
Usually ships in 7-10 business days
92025N92025-1696SHIM,25.3X36X1.20
Usually ships in 7-10 business days
92025O92025-1818SHIM,T=0.15
Usually ships in 7-10 business days
92025P92025-1819SHIM,T=0.50
Usually ships in 7-10 business days
92025Q92025-1820SHIM,T=0.60
Usually ships in 7-10 business days
92025R92025-1821SHIM,T=0.70
Usually ships in 7-10 business days
92025S92025-1822SHIM,T=0.80
Usually ships in 7-10 business days
92025T92025-1823SHIM,T=0.90
Usually ships in 7-10 business days
92025U92025-1824SHIM,T=1.00
Usually ships in 7-10 business days
92025V92025-1825SHIM,T=1.20
Usually ships in 7-10 business days
92025W92025-1826SHIM,T=0.10
1 In-Stock
9202792027-1152COLLAR,25.2X29.8X22.8
Usually ships in 7-10 business days
92027A92027-1153COLLAR,25.2X29.8X22.9
Usually ships in 7-10 business days
92027B92027-1154COLLAR,25.2X29.8X23
Usually ships in 7-10 business days
92027C92027-1155COLLAR,25.2X29.8X23.1
Usually ships in 7-10 business days
92027D92027-1156COLLAR,25.2X29.8X23.2
Usually ships in 7-10 business days
92027E92027-1157COLLAR,25.2X29.8X23.3
Usually ships in 7-10 business days
92027F92027-1158COLLAR,25.2X29.8X23.4
Usually ships in 7-10 business days
92027G92027-1159COLLAR,25.2X29.8X23.5
Usually ships in 7-10 business days
92027H92027-1160COLLAR,25.2X29.8X23.6
Usually ships in 7-10 business days
92027I92027-1161COLLAR,25.2X29.8X23.7
Usually ships in 7-10 business days
92027J92027-1162COLLAR,25.2X29.8X23.8
Usually ships in 7-10 business days
92027K92027-1163COLLAR,25.2X29.8X23.9
Usually ships in 7-10 business days
92027L92027-1164COLLAR,25.2X29.8X24
Usually ships in 7-10 business days
92027M92027-1165COLLAR,25.2X29.8X24.1
Usually ships in 7-10 business days
9204392043-1279PIN,11.5X14X14
4 In-Stock
9204592045-1165BEARING-BALL,6305C2
Usually ships in 7-10 business days
9204992049-1017SEAL-OIL,SD-8187
2 In-Stock
92049A92049-1038SEAL-OIL,TC35527
Usually ships in 7-10 business days
92049B92049-1519SEAL-OIL,TC13225.5
1 In-Stock
9205592055-1044RING-O,ID=18.64
4 In-Stock
9206292062-1078NOZZLE,6X8,GREEN
3 In-Stock
92062A92062-1083NOZZLE
Usually ships in 7-10 business days
9207292072-1195BAND,L=202
10+ In-Stock
9211692116-1062BEARING-ROLLER,HI-CAP30205
Usually ships in 7-10 business days
9214592145-1102SPRING,CAM DAMPER
Usually ships in 7-10 business days
9215192151-1755BOLT,FLANGED,6X14
Usually ships in 7-10 business days
9215392153-0433BOLT,8X80
Usually ships in 7-10 business days
92153A92153-0434BOLT,8X95
Usually ships in 7-10 business days
9217192171-0652CLAMP,L=60
10+ In-Stock
