HANDLEBAR

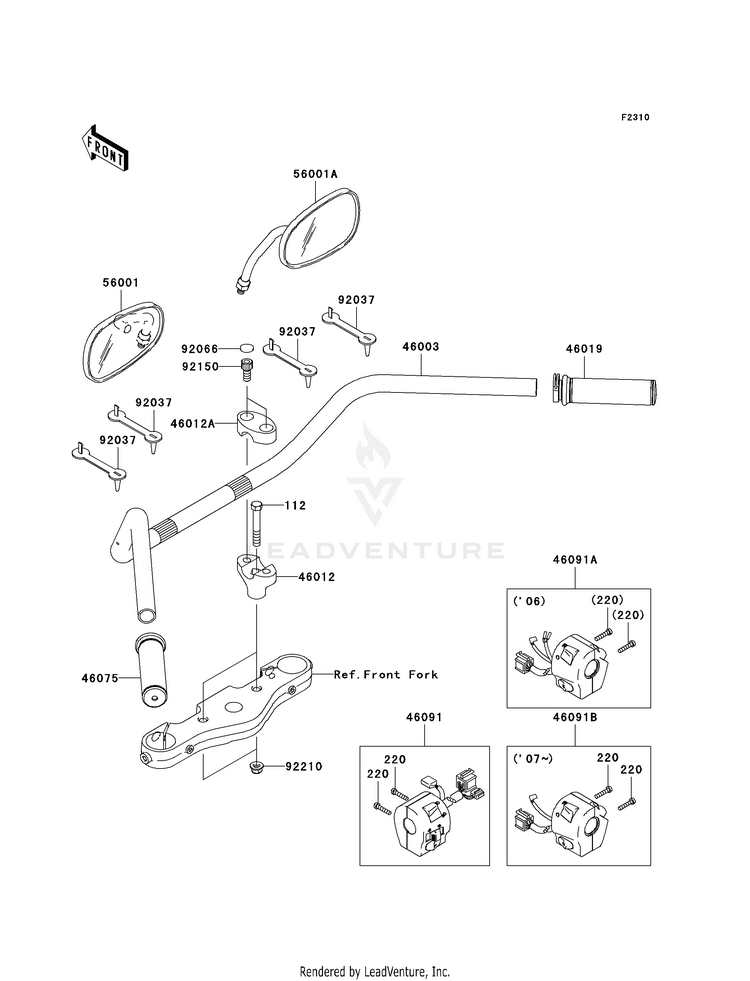

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
112112BA1065

(replaces part #
112H1065)

BOLT-UPSET,10X65
Usually ships in 7-10 business days
220220R0525SCREW-PAN-CROS,5X25
Usually ships in 7-10 business days
4600346003-0011HANDLE
1 In-Stock
4601246012-1272HOLDER-HANDLE,LWR
Not Shipping
46012A46012-1273HOLDER-HANDLE,UPP
1 In-Stock
4601946019-1123GRIP-ASSY,THROTTLE
Usually ships in 7-10 business days
4607546075-1212GRIP,LH
1 In-Stock
4609146091-0018HOUSING-ASSY-CONTROL,
Usually ships in 7-10 business days
46091B46091-0078HOUSING-ASSY-CONTROL,
Usually ships in 7-10 business days
5600156001-1592MIRROR-ASSY,LH
Usually ships in 7-10 business days
56001A56001-1593MIRROR-ASSY,RH
Usually ships in 7-10 business days
9203792037-1903CLAMP,SPEED,L=80.5
10+ In-Stock
9206692066-1285PLUG
1 In-Stock
9215092150-1942BOLT,SOCKET,10X23
Usually ships in 7-10 business days
9221092210-1139NUT,LOCK,FLANGED,10MM
4 In-Stock
