Assemblies

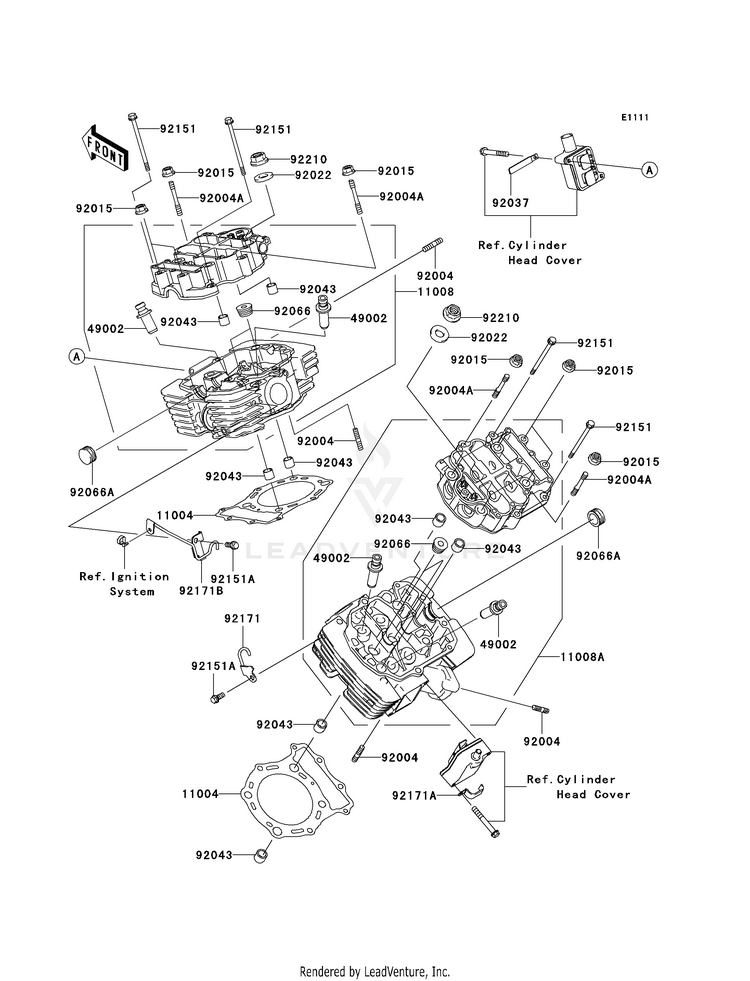

2007 Kawasaki Vulcan Nomad VN1600D Cylinder Head OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11004	11004-1334	GASKET-HEAD	4 In-Stock
11008	11008-0043	HEAD-COMP-CYLINDER	Usually ships in 7-10 business days
11008A	11008-0044	HEAD-COMP-CYLINDER	Usually ships in 7-10 business days
49002	49002-1088	GUIDE-VALVE	Usually ships in 7-10 business days
92004	172BA0825 (replaces part # 92004-1214)	BOLT-STUD,8X25	10+ In-Stock
92004A	92004-1224	STUD,8X46.5	Usually ships in 7-10 business days
92015	92015-1406	NUT,FLANGED,8MM	10+ In-Stock
92022	92022-1862	WASHER,12.3X25X3.2	Usually ships in 7-10 business days
92037	92037-1539	CLAMP,L=45	8 In-Stock
92043	92043-1608	PIN,13X16X14	Usually ships in 7-10 business days
92066	92066-0002	PLUG,PT1/2X12.5	9 In-Stock
92066A	92066-0031	PLUG	2 In-Stock
92151	92151-1058	BOLT,6X115	Usually ships in 7-10 business days
92151A	132BC0614 (replaces part # 92151-1423)	BOLT-FLANGED-SMALL,6X14	4 In-Stock
92171	92171-0005	CLAMP	Usually ships in 7-10 business days
92171A	92171-0011	CLAMP	Usually ships in 7-10 business days
92171B	92171-0127	CLAMP,HEAD,FR	Usually ships in 7-10 business days
92210	92210-0115	NUT,12MM	Usually ships in 7-10 business days
