FRONT FORK (D7F/D7FA/D8F/D8FA)

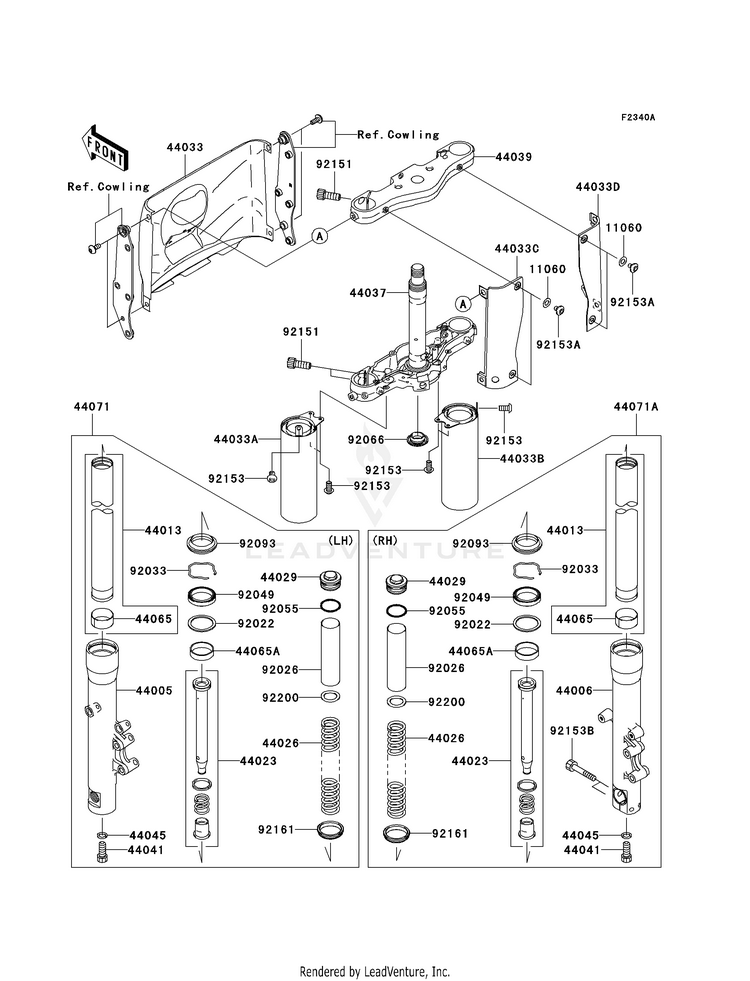

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106011060-1994GASKET,6.2X12X0.3
10+ In-Stock
4400544005-1436PIPE-LEFT FORK OUTER
Usually ships in 7-10 business days
4400644006-0006PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-0024PIPE-FORK INNER
Usually ships in 7-10 business days
4402344023-0004CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-0050SPRING-FRONT FORK
Usually ships in 7-10 business days
4402944029-1154SEAT-FORK SPRING
Usually ships in 7-10 business days
4403344033-0013COVER-FORK,CNT
Usually ships in 7-10 business days
44033A44033-0027COVER-FORK,INNER,LH
Usually ships in 7-10 business days
44033B44033-0028COVER-FORK,INNER,RH
Usually ships in 7-10 business days
44033C44033-0029COVER-FORK,RR,LH
Usually ships in 7-10 business days
44033D44033-0031COVER-FORK,RR,RH
Usually ships in 7-10 business days
4403744037-0021HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0019HOLDER-FORK UPPER
Usually ships in 7-10 business days
4404144041-040BOLT,SOCKET,FORK CYLINDER
3 In-Stock
4404544045-057GASKET,FORK CYLINDER
10+ In-Stock
4406544065-0003BUSHING-FRONT FORK
Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$47.00$39.9910+ In-Stock
44065A44065-1143BUSHING-FRONT FORK
Usually ships in 7-10 business days
4407144071-0156DAMPER-ASSY,FORK,LH
Usually ships in 7-10 business days
44071A44071-0157DAMPER-ASSY,FORK,RH
Usually ships in 7-10 business days
9202292022-1299WASHER
10+ In-Stock
9202692026-0062SPACER,FORK,L=141.5
Usually ships in 7-10 business days
9203392033-1077RING-SNAP
10+ In-Stock
9204992049-0007SEAL-OIL
10+ In-Stock
9205592055-1123RING-O
8 In-Stock
9206692066-0032PLUG
Usually ships in 7-10 business days
9209392093-1480SEAL,FORK OUTER TUBE
10+ In-Stock
9215192151-1358BOLT,SOCKET,10X25
Usually ships in 7-10 business days
9215392153-0300BOLT
Usually ships in 7-10 business days
92153A92154-1834

(replaces part #
92153-0411)

BOLT,SOCKET,6X10
Usually ships in 7-10 business days
92153B92153-0425BOLT
Usually ships in 7-10 business days
9216192161-1343DAMPER
Usually ships in 7-10 business days
9220092200-1253WASHER
Usually ships in 7-10 business days
