2007 Kawasaki Vulcan Nomad VN1600D Transmission OEM Parts Diagram

Submodel VN1600D7FA Vulcan 1600 Nomad (2007)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

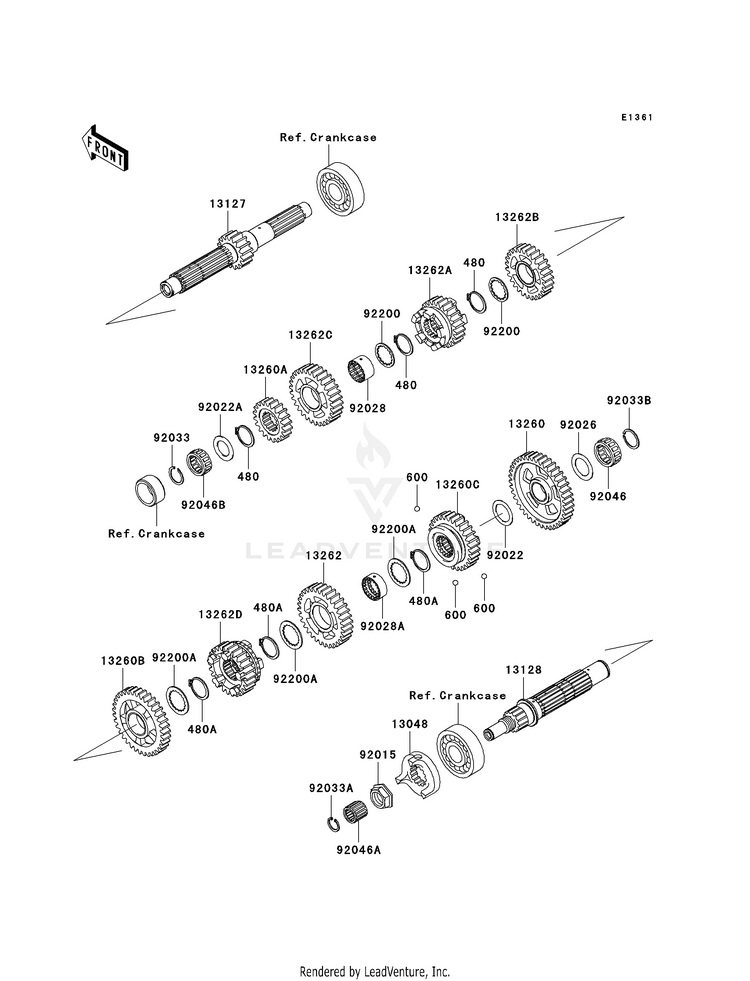

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1304813048-1086CAM-DAMPER
Usually ships in 7-10 business days
1312713127-1288SHAFT-TRANSMISSION IN
Usually ships in 7-10 business days
1312813128-0002SHAFT-TRANSMISSION OU
Usually ships in 7-10 business days
1326013260-1910GEAR,OUTPUT LOW,40T
Usually ships in 7-10 business days
13260A13260-1914GEAR,INPUT 2ND,22T
Usually ships in 7-10 business days
13260B13260-1918GEAR,OUTPUT 2ND,35T
Usually ships in 7-10 business days
13260C13260-1920GEAR,OUTPUT 4TH,28T
Usually ships in 7-10 business days
1326213262-0093GEAR,OUTPUT 3RD,31T
Usually ships in 7-10 business days
13262A13262-1068GEAR,INPUT 3RD,26T
Usually ships in 7-10 business days
13262B13262-1069GEAR,INPUT 4TH,29T
Usually ships in 7-10 business days
13262C13262-1070GEAR,INPUT 5TH,32T
Usually ships in 7-10 business days
13262D13262-1072GEAR,OUTPUT 5TH,25T
Usually ships in 7-10 business days
480480J2800CIRCLIP-TYPE-C,28MM
9 In-Stock
480A480J2900CIRCLIP
Usually ships in 7-10 business days
600600A0500BALL-STEEL,5/32
Usually ships in 7-10 business days
9201592015-1610NUT,20MM
Usually ships in 7-10 business days
9202292022-1855WASHER,OUTPUT,LOW
Usually ships in 7-10 business days
92022A92022-212WASHER,22.3X35X1.6
Usually ships in 7-10 business days
9202692026-1536SPACER
Usually ships in 7-10 business days
9202892028-1990BUSHING,INPUT TOP GEA
Usually ships in 7-10 business days
92028A92028-1991BUSHING,OUTPUT 3RD GE
Usually ships in 7-10 business days
9203392033-025RING-SNAP,20X25.5X1.2
10+ In-Stock
92033A92033-032RING-SNAP
6 In-Stock
92033B92033-1172RING-SNAP,25MM
10+ In-Stock
9204692046-1259BEARING-NEEDLE
Usually ships in 7-10 business days
92046A92046-1260BEARING-NEEDLE,FWF-162222
Usually ships in 7-10 business days
92046B92046-1293BEARING-NEEDLE,BN5022
Usually ships in 7-10 business days
9220092200-1240WASHER,28.5X34.0X1.5
3 In-Stock
92200A92200-1381WASHER,30.3X40X1.5
Usually ships in 7-10 business days
