2008 Kawasaki BRUTE FORCE 650 4x4i Brake Pedal OEM Parts Diagram

Submodel KVF650H8F Brute Force 650 4x4i (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

BRAKE PEDAL

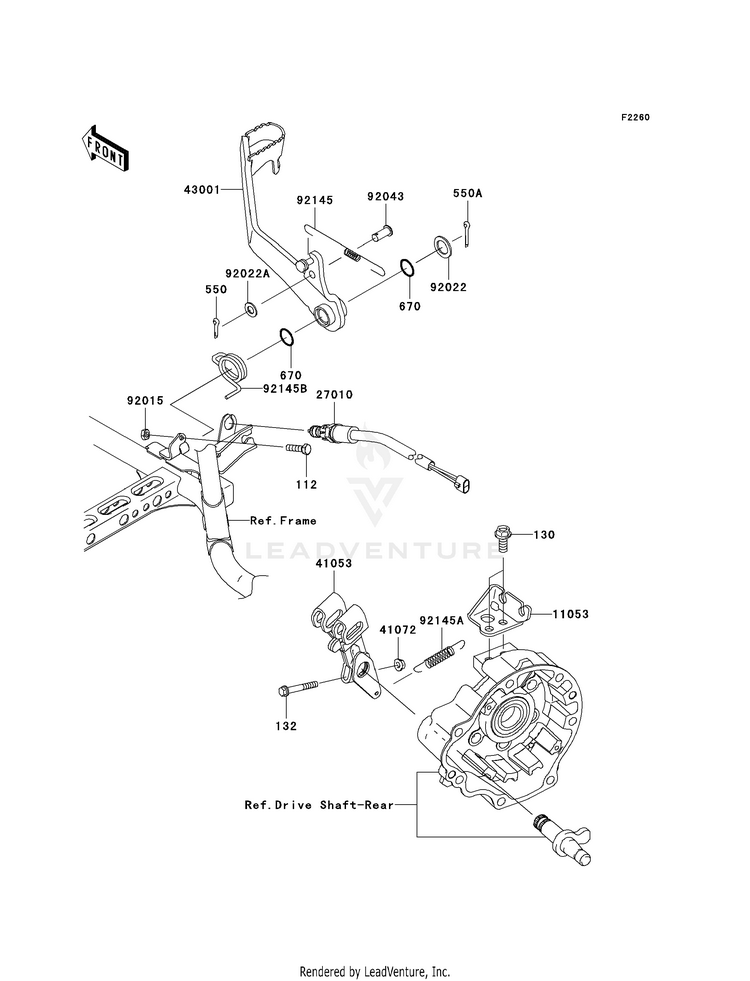

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311053-0642BRACKET,BRAKE CABLE
Usually ships in 7-10 business days
112112AA0622

(replaces part #
112D0622)

BOLT-UPSET,6X22
Usually ships in 7-10 business days
130130BB0820

(replaces part #
130J0820)

BOLT-FLANGED,8X20
10+ In-Stock
132132BA0640

(replaces part #
132G0640)

BOLT-FLANGED-SMALL,6X40
10+ In-Stock
2701027010-1494SWITCH,BRAKE
Usually ships in 7-10 business days
4105341053-5001

(replaces part #
41053-0006)

LEVER-BRAKE CAM
Usually ships in 7-10 business days
4107241072-007NUT,6MM
5 In-Stock
4300143001-0092

(replaces part #
43001-0036)

LEVER-BRAKE,PEDAL
Usually ships in 7-10 business days
550550AA2015

(replaces part #
550D2015)

PIN-COTTER,2.0X15
10+ In-Stock
550A550AA2022

(replaces part #
550D2022)

PIN-COTTER,2.0X22
6 In-Stock
670670B2015O RING,15MM
10+ In-Stock
9201592015-1410NUT,6MM
Usually ships in 7-10 business days
9202292022-1049WASHER,15.5X24X1.6
Usually ships in 7-10 business days
92022A410AA0800

(replaces part #
92022-1582)

WASHER-PLAIN-SMALL,8MM
10+ In-Stock
9204392043-1013PIN,8X16
2 In-Stock
9214592145-0144SPRING,REAR BRAKE SWITCH
5 In-Stock
92145A92145-1313SPRING,BRAKE LEVER RETURN
4 In-Stock
92145B92145-1421SPRING,BRAKE PEDAL RETURN
Usually ships in 7-10 business days
