2008 Kawasaki BRUTE FORCE 650 4x4i Frame Fittings OEM Parts Diagram

Submodel KVF650F8F Brute Force 650 4x4i (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME FITTINGS

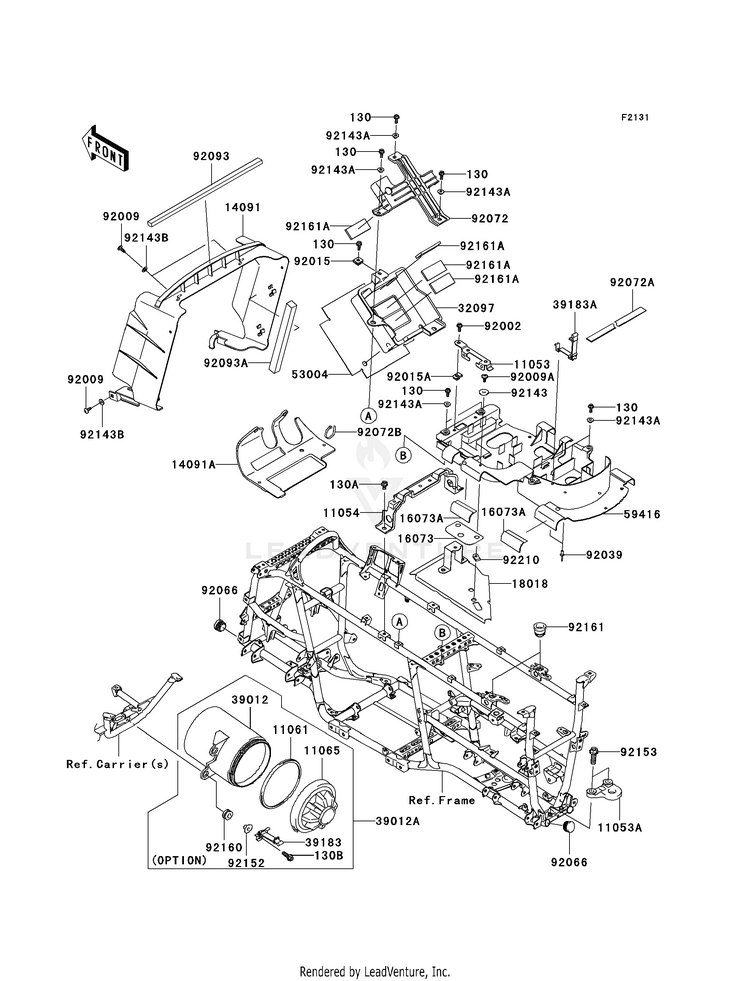

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311053-0937BRACKET,FUSE ASSY
Usually ships in 7-10 business days
11053A11053-1638BRACKET,TRAILER HITCH
Usually ships in 7-10 business days
1105411054-1236BRACKET,SEAT&BATTERY BAND
Usually ships in 7-10 business days
1106111061-0072GASKET,TOOL CASE | (OPTION)
Usually ships in 7-10 business days
1106511065-0088CAP,TOOL CASE | (OPTION)
Usually ships in 7-10 business days
130130BB0616BOLT-FLANGED,6X16
10+ In-Stock
130A130BB0812BOLT-FLANGED,8X12
8 In-Stock
130B130BB0825BOLT-FLANGED,8X25 | (OPTION)
5 In-Stock
1409114091-0338COVER,RADIATOR
Usually ships in 7-10 business days
14091A14091-0540COVER,AIR CLEANER
Usually ships in 7-10 business days
1607316073-0035INSULATOR,ELECTRIC CA
Usually ships in 7-10 business days
16073A16073-0933

(replaces part #
16073-0036)

INSULATOR,ELECTRIC CASE
Usually ships in 7-10 business days
1801818018-0009PLATE-HEAT GUARD
Usually ships in 7-10 business days
3209732097-0009CASE-BATTERY
Usually ships in 7-10 business days
3901239012-0005CASE-STORAGE | (OPTION)
Usually ships in 7-10 business days
39012A39012-5013CASE-STORAGE | (OPTION)
Usually ships in 7-10 business days
3918339183-0003BAND-ASSY,TOOL BAG | (OPTION)
Usually ships in 7-10 business days
39183A39183-1065BAND-ASSY,TOOL BAG
Usually ships in 7-10 business days
5300453004-0002MAT,BATTERY CASE
Usually ships in 7-10 business days
5941659416-0004CASE-ELECTRIC
Usually ships in 7-10 business days
9200292154-1893

(replaces part #
92002-1571)

BOLT,FLANGED-SMALL,6X16
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
92009A92009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9201592015-1094NUT,6MM
6 In-Stock
92015A92015-1602NUT,6MM
10+ In-Stock
9203992039-3719RIVET,4.8MM
Usually ships in 7-10 business days
9206692066-0036PLUG
5 In-Stock
9207292072-0033BAND,BATTERY
6 In-Stock
92072A92072-0040BAND,MAGIC TAPE
Usually ships in 7-10 business days
92072B92072-1239BAND,L=188
9 In-Stock
9209392093-0024SEAL,L=408
Usually ships in 7-10 business days
92093A92093-0028SEAL,L=250
6 In-Stock
9214392143-1025COLLAR,L=6.5
4 In-Stock
92143A92143-1057COLLAR
10+ In-Stock
92143B92143-1087COLLAR
10+ In-Stock
9215292152-0155COLLAR | (OPTION)
Usually ships in 7-10 business days
9215392153-0847BOLT,FLANGED,12X35
Usually ships in 7-10 business days
9216092160-1151DAMPER,MUFFLER CONNEC | (OPTION)
Usually ships in 7-10 business days
9216192161-0048DAMPER
4 In-Stock
92161A92161-1127DAMPER,30X70X5
6 In-Stock
9221092210-1331NUT
Usually ships in 7-10 business days
