2008 Kawasaki BRUTE FORCE 750 4x4i Front Fender(S) OEM Parts Diagram

Submodel KVF750F8F Brute Force 750 4x4i (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

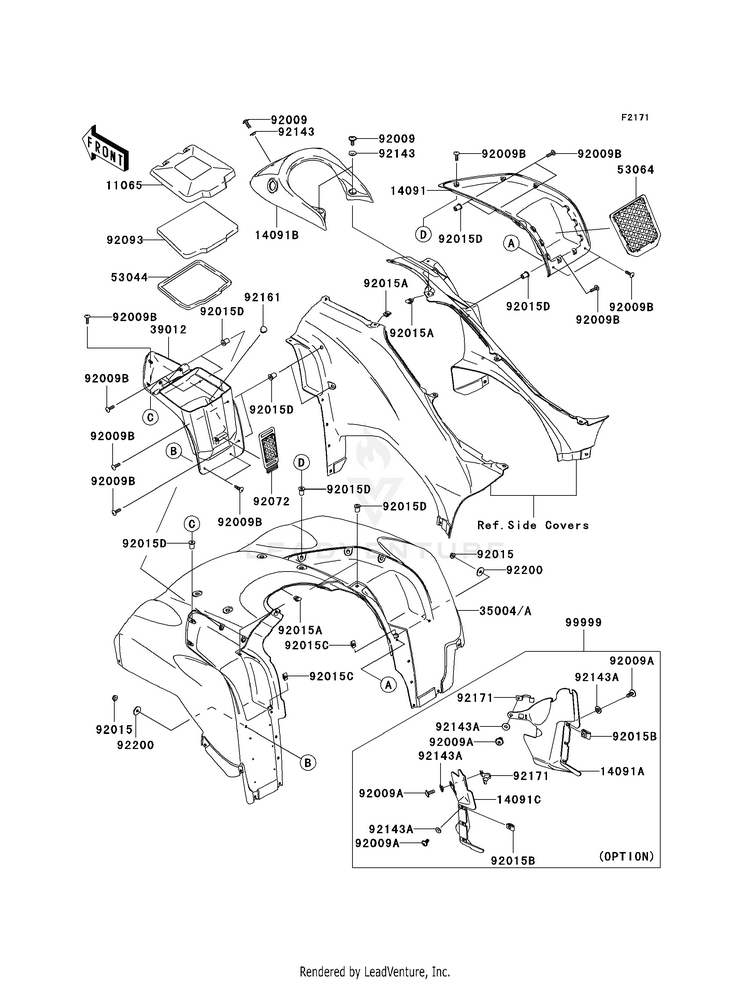

FRONT FENDER(S)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0194-6ZCAP,STORAGE,F.BLACK
5 In-Stock
1409114091-0136-6ZCOVER,POCKET,RH,F.BLACK
1 In-Stock
14091A14091-0179COVER,SIDE,INNER,RH | (OPTION)
Usually ships in 7-10 business days
14091B14092-0769-6Z

(replaces part #
14091-0270-6Z)

COVER,TOP,F.BLACK
2 In-Stock
14091C14091-0337COVER,SIDE,INNER,LH | (OPTION)
Usually ships in 7-10 business days
3500435004-0315-16J

(replaces part #
35004-0108-16J)

FENDER-FRONT,M.N.BLUE
Usually ships in 7-10 business days
3901239012-0015-6ZCASE-STORAGE,F.BLACK
Usually ships in 7-10 business days
5304453044-0037TRIM,L=700
1 In-Stock
5306453064-0002NET-CARGO
6 In-Stock
9200992009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
92009A92009-1694

(replaces part #
92009-1621)

SCREW,6X16 | (OPTION)
10+ In-Stock
92009B92009-1655SCREW,5X18
10+ In-Stock
9201592015-1259NUT,FLANGED,5MM
10+ In-Stock
92015A92015-1602NUT,6MM
10+ In-Stock
92015B92015-1602NUT,6MM | (OPTION)
10+ In-Stock
92015C92015-1710NUT,5MM
10+ In-Stock
92015D92015-1757NUT,WELL,5MM
10+ In-Stock
9207292072-0095BAND,STORAGE
3 In-Stock
9209392093-0568

(replaces part #
92093-0136)

SEAL,STORAGE CAP
1 In-Stock
9214392143-1087COLLAR
10+ In-Stock
92143A92143-1087COLLAR | (OPTION)
10+ In-Stock
9216192161-0586DAMPER
3 In-Stock
9217192171-0223CLAMP | (OPTION)
Usually ships in 7-10 business days
9220092200-0284WASHER,5.5X20X1.2
10+ In-Stock
9999999999-0055INNER FENDER KIT | (OPTION)
Usually ships in 7-10 business days
