2008 Kawasaki BRUTE FORCE 750 4x4i Rear Suspension OEM Parts Diagram

Submodel KVF750F8F Brute Force 750 4x4i (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SUSPENSION

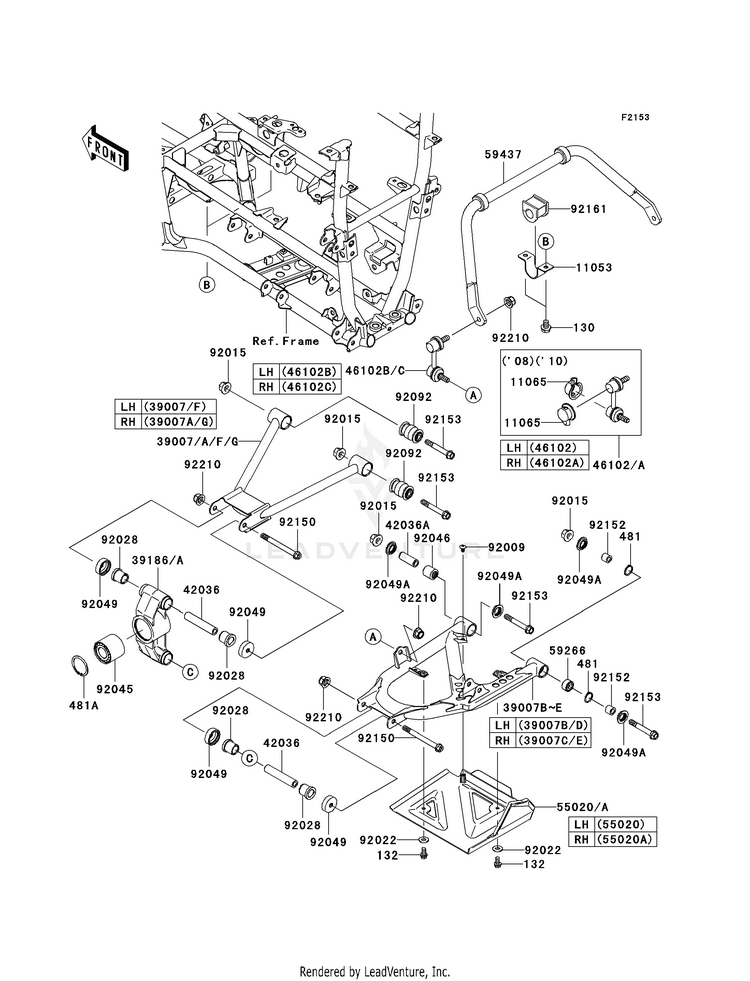

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105311056-1062

(replaces part #
11053-1833)

BRACKET,STABILIZER
Usually ships in 7-10 business days
1106511065-0086CAP
Usually ships in 7-10 business days
130130BB0812BOLT-FLANGED,8X12
8 In-Stock
132132BB0612BOLT-FLANGED-SMALL,6X12
10+ In-Stock
3900739007-0021ARM-SUSP,RR,UPP,LH
Not Shipping
39007A39007-0022ARM-SUSP,RR,UPP,RH
Usually ships in 7-10 business days
39007B39007-0038ARM-SUSP,RR,LWR,LH
Usually ships in 7-10 business days
39007C39007-0039ARM-SUSP,RR,LWR,RH
Usually ships in 7-10 business days
3918639186-0030KNUCKLE,RR
Usually ships in 7-10 business days
4203642036-1190SLEEVE,10X17X85.6
4 In-Stock
42036A42036-1376SLEEVE
7 In-Stock
4610246102-0100

(replaces part #
46102-0055)

ROD,STABILIZER
7 In-Stock
46102A46102-0101

(replaces part #
46102-0056)

ROD,STABILIZER,RH
5 In-Stock
481481J2400CIRCLIP-TYPE-C,24MM
10+ In-Stock
481A481J5200CIRCLIP-TYPE-C,52MM
6 In-Stock
5502055020-0972-6Z

(replaces part #
55020-0166-6Z)

GUARD,REAR ARM,LH,F.BLACK
Usually ships in 7-10 business days
55020A55020-0973-6Z

(replaces part #
55020-0167-6Z)

GUARD,REAR ARM,RH,F.BLACK
Usually ships in 7-10 business days
5926659266-0013JOINT-BALL
8 In-Stock
5943759437-0001STABILIZER
Usually ships in 7-10 business days
9200992009-1480SCREW,6X12
6 In-Stock
9201592015-1415NUT,FLANGED,10MM
10+ In-Stock
9202292022-024WASHER,7X16X1.2
7 In-Stock
9202892028-1466BUSHING
10+ In-Stock
9204592045-0094BEARING-BALL,25BWD02ACA68
4 In-Stock
9204692046-1046BEARING-NEEDLE
10+ In-Stock
9204992049-1198SEAL-OIL,KNUCKLE
10+ In-Stock
92049A92049-1223SEAL-OIL,MHA17245.7F
10+ In-Stock
9209292092-0004BUSHING-RUBBER
10+ In-Stock
9215092150-1624BOLT,FLANGED,10X105
10+ In-Stock
9215292152-1455COLLAR,10X17X14.5
8 In-Stock
9215392153-0666BOLT,FLANGED,10X70
Usually ships in 7-10 business days
9216192161-0265DAMPER
6 In-Stock
9221092210-0276NUT,LOCK,FLANGED,10MM
10+ In-Stock
