2008 Kawasaki Concours ZG1400B Cylinder Head OEM Parts Diagram

Submodel ZG1400B8F Concours 14 (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER HEAD

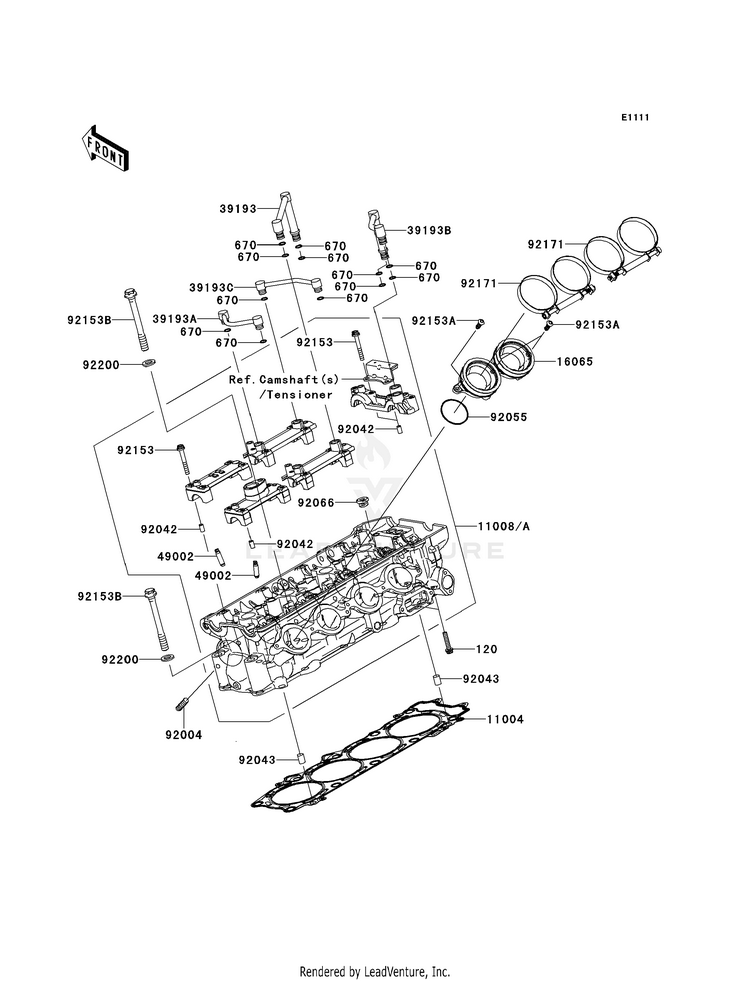

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100411004-0059GASKET-HEAD
1 In-Stock
1100811008-0147HEAD-COMP-CYLINDER
Usually ships in 7-10 business days
120120CD0630BOLT-SOCKET,6X30
Usually ships in 7-10 business days
1606516065-0040HOLDER-CARBURETOR
Usually ships in 7-10 business days
3919339193-0039PIPE-OIL
Usually ships in 7-10 business days
39193A39193-0040PIPE-OIL
Usually ships in 7-10 business days
39193B39193-0041PIPE-OIL
Usually ships in 7-10 business days
39193C39193-0042PIPE-OIL
Usually ships in 7-10 business days
4900249002-0014GUIDE-VALVE
Usually ships in 7-10 business days
670670D1509O RING,9MM
10+ In-Stock
9200492004-0025STUD,8X22
10+ In-Stock
9204292042-007PIN,DOWEL,6.3X8X14
10+ In-Stock
9204392043-1264PIN,8.2X10X14
10+ In-Stock
9205592055-1600RING-O,47X1.9
10+ In-Stock
9206692066-0832

(replaces part #
92066-0016)

PLUG,18X10
6 In-Stock
9215392153-0656BOLT,SOCKET,6X45
10+ In-Stock
92153A92153-1629BOLT,TORX,6X18
Usually ships in 7-10 business days
92153B92153-1674BOLT,FLANGED-SHALL,11
Usually ships in 7-10 business days
9217192171-1892CLAMP
Usually ships in 7-10 business days
9220092200-0341WASHER,11.5X21X2.3
Usually ships in 7-10 business days
