2008 Kawasaki Concours ZG1400B Front Bevel Gear OEM Parts Diagram

Submodel ZG1400B8F Concours 14 (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BEVEL GEAR

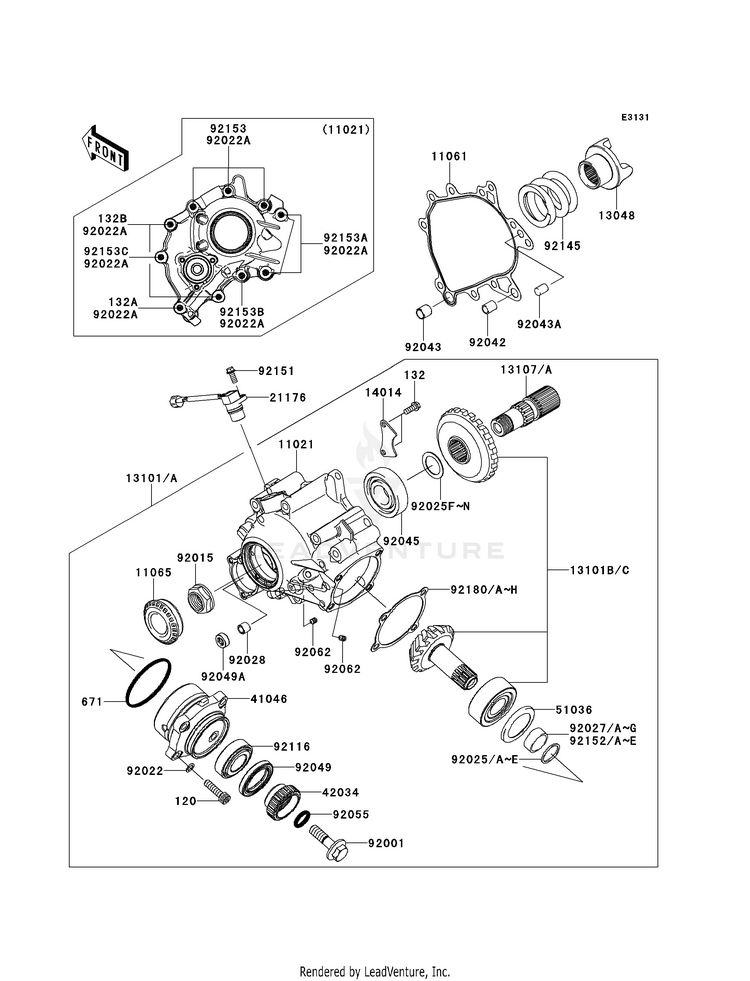

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1102111021-0014-458CASE-ASSY,FR GEAR,P.SILVER
Usually ships in 7-10 business days
1106111061-0310GASKET,FR GEAR CASE
Usually ships in 7-10 business days
1106511065-0165CAP
Usually ships in 7-10 business days
120120CB0830BOLT-SOCKET,8X30
10+ In-Stock
1304813048-0004CAM-DAMPER
Usually ships in 7-10 business days
1310113101-0115-458

(replaces part #
13101-0063-458)

GEAR-ASSY,P.SILVER | ( - ZXT40AE040175)
Usually ships in 7-10 business days
13101A13101-0115-458

(replaces part #
13101-0098-458)

GEAR-ASSY,P.SILVER | ( ZXT40AE040176 - )
Usually ships in 7-10 business days
13101B13101-5090GEAR-ASSY,BEVEL,FR | ( - ZXT40AE040175)
Usually ships in 7-10 business days
13101C13101-5092GEAR-ASSY,BEVEL,FR | ( ZXT40AE040176 - )
Usually ships in 7-10 business days
1310713107-0142SHAFT,DRIVE | ( - ZXT40AE040175)
Usually ships in 7-10 business days
13107A13107-0201SHAFT,DRIVE | ( ZXT40AE040176 - )
Usually ships in 7-10 business days
132132BA0616BOLT-FLANGED-SMALL,6X16
10+ In-Stock
132A132BB0850BOLT-FLANGED-SMALL,8X50
Usually ships in 7-10 business days
132B132BD0835BOLT-FLANGED-SMALL,8X35
Usually ships in 7-10 business days
1401414014-0031PLATE-POSITION
Usually ships in 7-10 business days
2117621176-0037SENSOR,SPEED
Usually ships in 7-10 business days
4104641046-0016HOUSING-BEARING
Usually ships in 7-10 business days
4203442034-0046COUPLING,FR,DRIVEN
Usually ships in 7-10 business days
5103651036-1002CUP
Usually ships in 7-10 business days
671671D2570O RING,69.4X3.1
Usually ships in 7-10 business days
9200192001-1169BOLT,FLANGED,12X42
Usually ships in 7-10 business days
9201592015-1554NUT,24MM
Usually ships in 7-10 business days
9202292022-1028WASHER,8.5X13X1
10+ In-Stock
92022A410AA0800

(replaces part #
92022-1582)

WASHER-PLAIN-SMALL,8MM
10+ In-Stock
9202592025-1072SHIM,25.2X29.8X1.70
Usually ships in 7-10 business days
92025A92025-1073SHIM,25.2X29.8X1.72
1 In-Stock
92025B92025-1074SHIM,25.2X29.8X1.74
Usually ships in 7-10 business days
92025C92025-1075SHIM,25.2X29.8X1.76
Usually ships in 7-10 business days
92025D92025-1076SHIM,25.2X29.8X1.78
Usually ships in 7-10 business days
92025E92025-1077SHIM,25.2X29.8X1.80
Usually ships in 7-10 business days
92025F92025-1688SHIM,25.3X36X0.15
Usually ships in 7-10 business days
92025G92025-1689SHIM,25.3X36X0.50
Usually ships in 7-10 business days
92025H92025-1690SHIM,25.3X36X0.60
Usually ships in 7-10 business days
92025I92025-1691SHIM,25.3X36X0.70
Usually ships in 7-10 business days
92025J92025-1692SHIM,25.3X36X0.80
Usually ships in 7-10 business days
92025K92025-1693SHIM,25.3X36X0.90
Usually ships in 7-10 business days
92025L92025-1694SHIM,25.3X36X1.00
Usually ships in 7-10 business days
92025M92025-1695SHIM,25.3X36X1.10
Usually ships in 7-10 business days
92025N92025-1696SHIM,25.3X36X1.20
Usually ships in 7-10 business days
9202792027-1403COLLAR,25.2X29.8X10.4
Usually ships in 7-10 business days
92027A92027-1404COLLAR,25.2X29.8X10.5
Usually ships in 7-10 business days
92027B92027-1405COLLAR,25.2X29.8X10.6
Usually ships in 7-10 business days
92027C92027-1406COLLAR,25.2X29.8X10.7
Usually ships in 7-10 business days
92027D92027-1407COLLAR,25.2X29.8X10.8
Usually ships in 7-10 business days
92027E92027-1408COLLAR,25.2X29.8X10.9
Usually ships in 7-10 business days
92027F92027-1409COLLAR,25.2X29.8X11.0
Usually ships in 7-10 business days
92027G92027-1410COLLAR,25.2X29.8X11.1
Usually ships in 7-10 business days
9202892028-1750BUSHING,8X12X10
Usually ships in 7-10 business days
9204292043-0963

(replaces part #
92042-031)

PIN,12X14
Usually ships in 7-10 business days
9204392043-1279PIN,11.5X14X14
4 In-Stock
92043A92043-1506PIN,10X14
10+ In-Stock
9204592045-0063BEARING-BALL,6305-13
Usually ships in 7-10 business days
9204992049-1038SEAL-OIL,TC35527
Usually ships in 7-10 business days
92049A92049-1566SEAL-OIL
Usually ships in 7-10 business days
9205592055-0130RING-O,18.7X3.5
Usually ships in 7-10 business days
9206292062-1078NOZZLE,6X8,GREEN
3 In-Stock
9211692116-1062BEARING-ROLLER,HI-CAP30205
Usually ships in 7-10 business days
9214592145-0430SPRING,CAM DAMPER
Usually ships in 7-10 business days
9215192151-1755BOLT,FLANGED,6X14
Usually ships in 7-10 business days
9215292152-0480COLLAR,25.2X29.8X11.2
Usually ships in 7-10 business days
92152A92152-0481COLLAR,25.2X29.8X11.3
Usually ships in 7-10 business days
92152B92152-0482COLLAR,25.2X29.8X11.4
Usually ships in 7-10 business days
92152C92152-0483COLLAR,25.2X29.8X11.5
Usually ships in 7-10 business days
92152D92152-0484COLLAR,25.2X29.8X11.6
Usually ships in 7-10 business days
92152E92152-0485COLLAR,25.2X29.8X11.7
Usually ships in 7-10 business days
9215392153-0434BOLT,8X95
Usually ships in 7-10 business days
92153A92153-1874BOLT,8X92
Usually ships in 7-10 business days
92153B92153-1953BOLT,FLANGED,8X95
Usually ships in 7-10 business days
92153C92153-1954BOLT,FLANGED-SMALL,8X35
Usually ships in 7-10 business days
9218092180-0227SHIM,T=0.1
Usually ships in 7-10 business days
92180A92180-0228SHIM,T=0.15
Usually ships in 7-10 business days
92180B92180-0229SHIM,T=0.5
Usually ships in 7-10 business days
92180C92180-0230SHIM,T=0.6
Usually ships in 7-10 business days
92180D92180-0231SHIM,T=0.7
Usually ships in 7-10 business days
92180E92180-0232SHIM,T=0.8
Usually ships in 7-10 business days
92180F92180-0233SHIM,T=0.9
Usually ships in 7-10 business days
92180G92180-0234SHIM,T=1.0
Usually ships in 7-10 business days
92180H92180-0235SHIM,T=1.2
Usually ships in 7-10 business days
