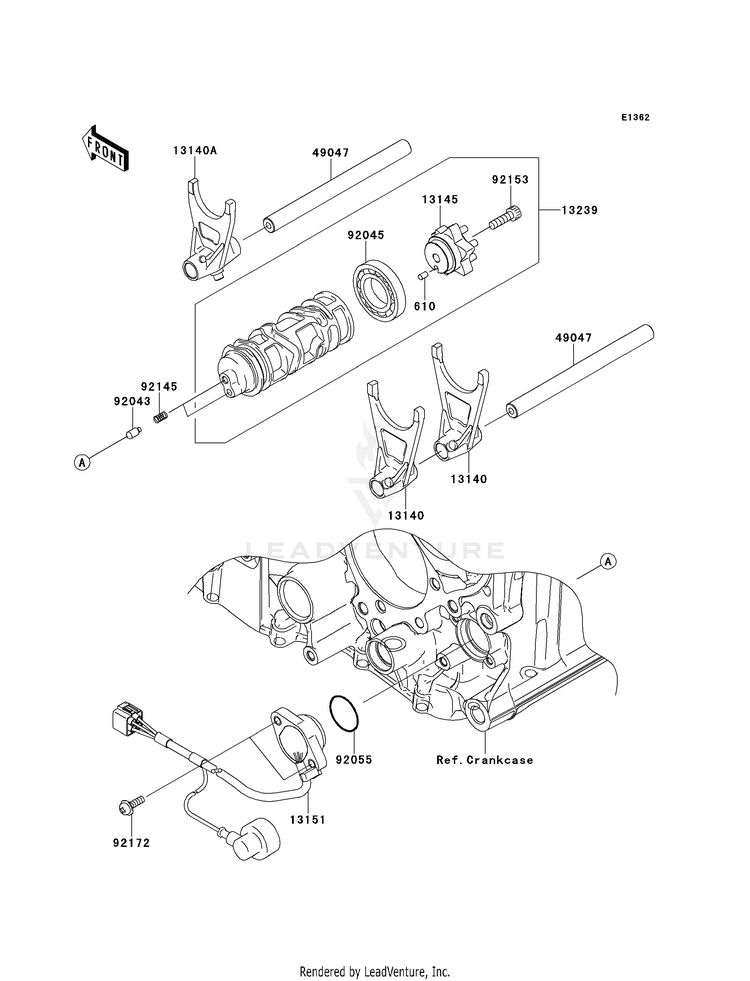

2008 Kawasaki Concours ZG1400B Gear Change Drum/Shift Fork(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13140	13140-0050 (replaces part # 13140-0030)	FORK-SHIFT,OUTPUT	Usually ships in 7-10 business days
13140A	13140-0046	FORK-SHIFT,INPUT	Usually ships in 7-10 business days
13145	13145-0023	CAM-CHANGE DRUM	1 In-Stock
13151	13151-0605 (replaces part # 13151-0031)	SWITCH-COMP,NEUTRAL	Usually ships in 7-10 business days
13239	13239-0023	DRUM-ASSY-CHANGE	Usually ships in 7-10 business days
49047	49047-0023	ROD-SHIFT	Usually ships in 7-10 business days
610	610A0406	ROLLER,4X6	4 In-Stock
92043	92043-1654	PIN	5 In-Stock
92045	92045-1045	BEARING-BALL,16005	Usually ships in 7-10 business days
92055	92055-091	RING-O,27.7X2.4	10+ In-Stock
92145	92145-1414	SPRING	10+ In-Stock
92153	92154-1837 (replaces part # 92153-1031)	BOLT,SOCKET,6X20	Usually ships in 7-10 business days
92172	92172-0270	SCREW-PAN-WS-CROS,5X1	Usually ships in 7-10 business days
