2008 Kawasaki MULE 3010 4X4 Diesel Master Cylinder OEM Parts Diagram

Submodel KAF950D8F Mule 3010 Diesel 4X4 (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

MASTER CYLINDER

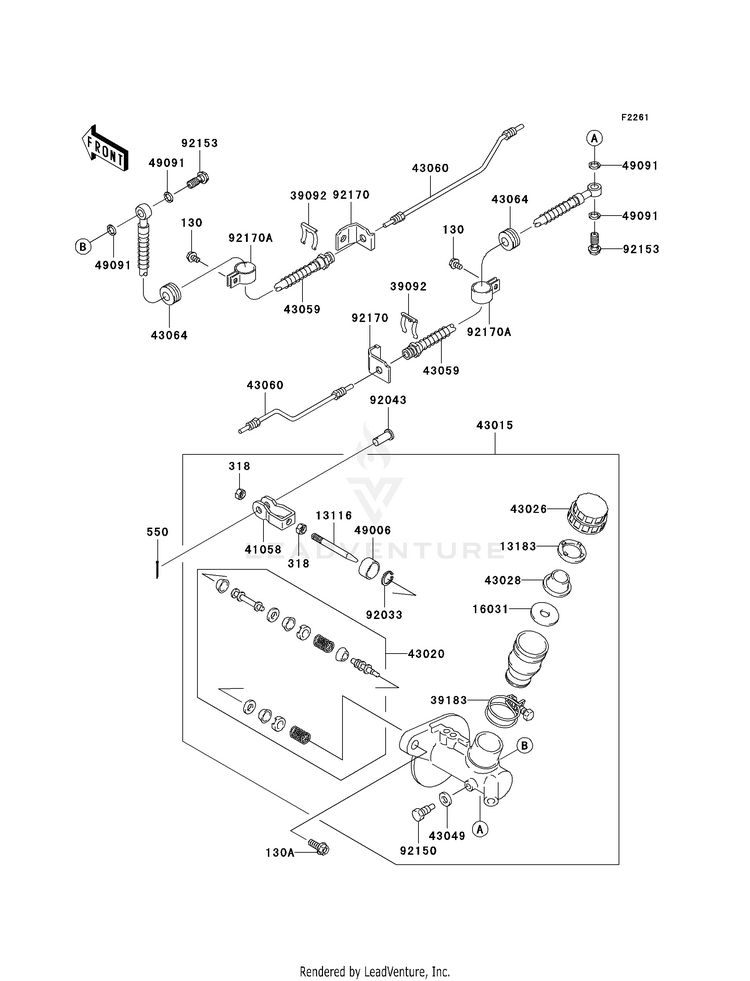

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130AA0610

(replaces part #
130D0610)

BOLT-FLANGED,6X10
10+ In-Stock
130A130AA0820

(replaces part #
130D0820)

BOLT-FLANGED,8X20
Usually ships in 7-10 business days
1311613116-1134ROD-PUSH
Usually ships in 7-10 business days
1318313183-1306PLATE
2 In-Stock
1603116031-1069FLOAT
Usually ships in 7-10 business days
318318BA0800

(replaces part #
318H0800)

NUT-HEX-SMALL,8MM
10+ In-Stock
3909239092-1052PIN-HAIR
3 In-Stock
3918339183-1055BAND-ASSY
Usually ships in 7-10 business days
4105841058-1053RODEND-BRAKE
Usually ships in 7-10 business days
4301543015-0833

(replaces part #
43015-1682)

CYLINDER-ASSY-MASTER
Usually ships in 7-10 business days
4302043020-0038

(replaces part #
43020-1124)

PISTON-COMP-BRAKE
4 In-Stock
4302643026-1067CAP-BRAKE
Usually ships in 7-10 business days
4302843028-1078DIAPHRAGM
4 In-Stock
4304943049-1065PACKING
Usually ships in 7-10 business days
4305943095-1822

(replaces part #
43059-1489)

HOSE-BRAKE,FR
Usually ships in 7-10 business days
4306043060-1082PIPE-BRAKE,FR
Usually ships in 7-10 business days
4306443064-007GROMMET,HOSE CLAMP
5 In-Stock
4900649006-1245BOOT
Usually ships in 7-10 business days
4909149091-0001WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
550550AA2518

(replaces part #
550D2518)

PIN-COTTER,2.5X18
9 In-Stock
9203392033-1255RING-SNAP
Usually ships in 7-10 business days
9204392043-1039PIN
7 In-Stock
9215092150-1165BOLT,STOP
Usually ships in 7-10 business days
9215392153-0627BOLT,OIL,L=23
10+ In-Stock
9217092170-1093CLAMP,BRAKE PIPE
Usually ships in 7-10 business days
92170A92170-1173CLAMP,HOSE
Usually ships in 7-10 business days
