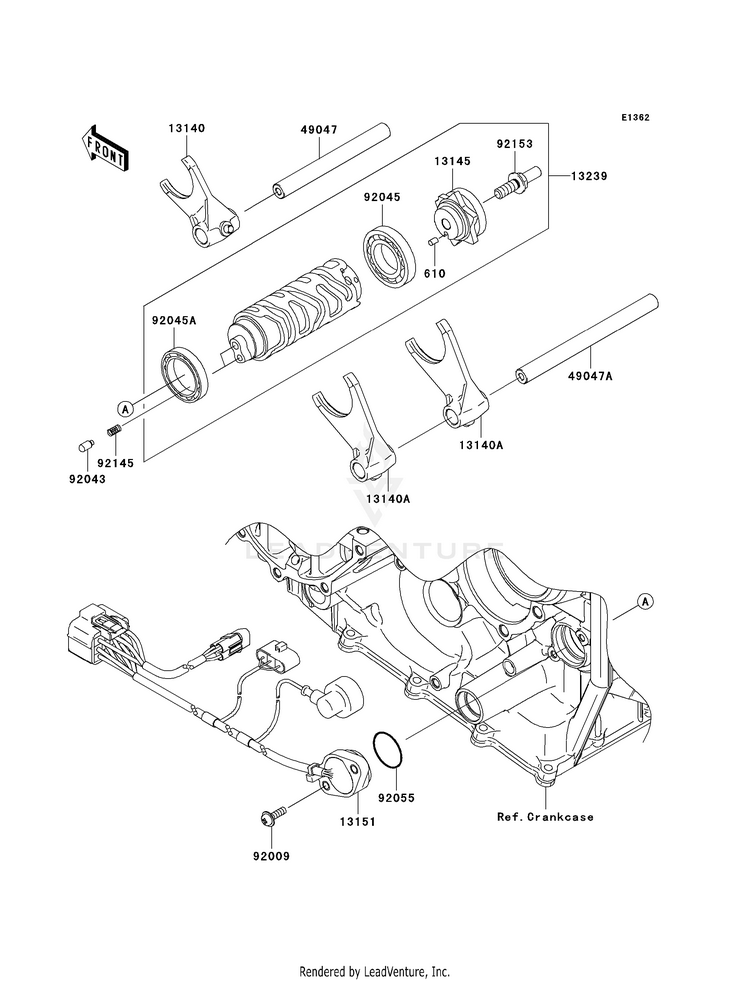

2008 Kawasaki Ninja ZX-10R Gear Change Drum/Shift Fork(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13140	13140-0027	FORK-SHIFT,INPUT	Usually ships in 7-10 business days
13140A	13140-0028	FORK-SHIFT,OUTPUT	Usually ships in 7-10 business days
13145	13145-0039	CAM-CHANGE DRUM	Usually ships in 7-10 business days
13151	13151-0608 (replaces part # 13151-0044)	SWITCH-COMP,NEUTRAL	Usually ships in 7-10 business days
13239	13239-0030	DRUM-ASSY-CHANGE	Usually ships in 7-10 business days
49047	49047-0021	ROD-SHIFT,INPUT	Usually ships in 7-10 business days
49047A	49047-0022	ROD-SHIFT,OUTPUT	Usually ships in 7-10 business days
610	610A0406	ROLLER,4X6	4 In-Stock
92009	92009-1895	SCREW	Usually ships in 7-10 business days
92043	92043-1654	PIN	5 In-Stock
92045	92045-1045	BEARING-BALL,16005	Usually ships in 7-10 business days
92045A	92045-1152	BEARING-BALL,6806	Usually ships in 7-10 business days
92055	92055-091	RING-O,27.7X2.4	10+ In-Stock
92145	92145-1414	SPRING	10+ In-Stock
92153	92154-1883 (replaces part # 92153-1735)	BOLT	Usually ships in 7-10 business days
