2008 Kawasaki Ninja ZX-14R Cowling OEM Parts Diagram

Submodel ZX1400C8F Ninja ZX-14 (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

COWLING

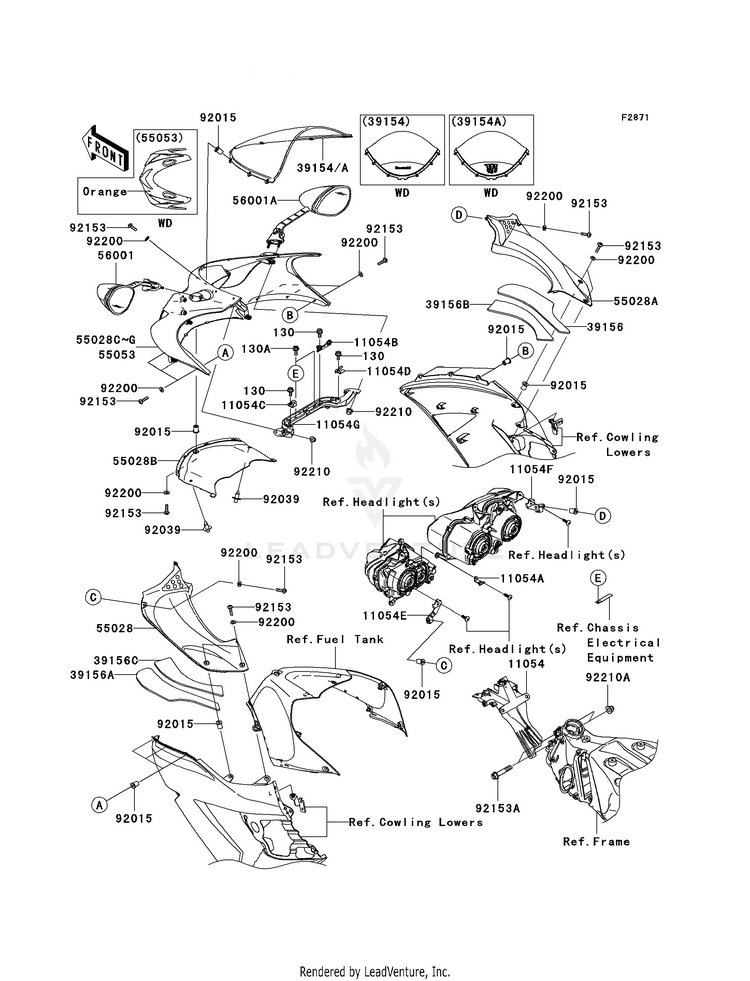

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105411056-1544

(replaces part #
11054-0057)

BRACKET,METER
Usually ships in 7-10 business days
11054A11054-0180BRACKET,UPP COWLING
Usually ships in 7-10 business days
11054B11054-0239BRACKET,DOWN SENSOR
Usually ships in 7-10 business days
11054C11054-0702BRACKET,INNER COWLING
Usually ships in 7-10 business days
11054D11054-0703BRACKET,INNER COWLING
Usually ships in 7-10 business days
11054E11054-1305BRACKET,INNER COWLING
Usually ships in 7-10 business days
11054F11054-1306BRACKET,INNER COWLING
Usually ships in 7-10 business days
11054G11054-1307BRACKET,MIRROR
Usually ships in 7-10 business days
130130BA0614BOLT-FLANGED,6X14
10+ In-Stock
130A130BA0616BOLT-FLANGED,6X16
7 In-Stock
3915439154-5025WINDSHIELD
Usually ships in 7-10 business days
3915639156-0155PAD,INNER COWLING,RH,
Usually ships in 7-10 business days
39156A39156-0156PAD,INNER COWLING,LH,
Usually ships in 7-10 business days
39156B39156-0157PAD,INNER COWLING,RH,
Usually ships in 7-10 business days
39156C39156-0158PAD,INNER COWLING,LH,
Usually ships in 7-10 business days
5502855028-0061COWLING,INNER,LH
Usually ships in 7-10 business days
55028A55028-0062COWLING,INNER,RH
Usually ships in 7-10 business days
55028B55028-0095COWLING,FR,CNT
Usually ships in 7-10 business days
55028D55028-0162-17MCOWLING,UPP,SILVER | [CA,US]
Usually ships in 7-10 business days
55028F55028-0162-19ACOWLING,UPP,M.M.S.BLU
Usually ships in 7-10 business days
5600156001-0397

(replaces part #
56001-0135)

MIRROR-ASSY,LH
Usually ships in 7-10 business days
56001A56001-0398

(replaces part #
56001-0136)

MIRROR-ASSY,RH
Usually ships in 7-10 business days
9201592015-1757NUT,WELL,5MM
10+ In-Stock
9203992039-0023RIVET
10+ In-Stock
9215392153-1244BOLT,SOCKET,5X16
10+ In-Stock
92153A92153-1603BOLT,FLANGED,8X45
Usually ships in 7-10 business days
9220092200-0006WASHER,NYLONE,5.3X11.5X0.5
10+ In-Stock
9221092210-0322NUT,CAP,6MM
Usually ships in 7-10 business days
92210A92210-0325NUT,CAP,8MM
10+ In-Stock
