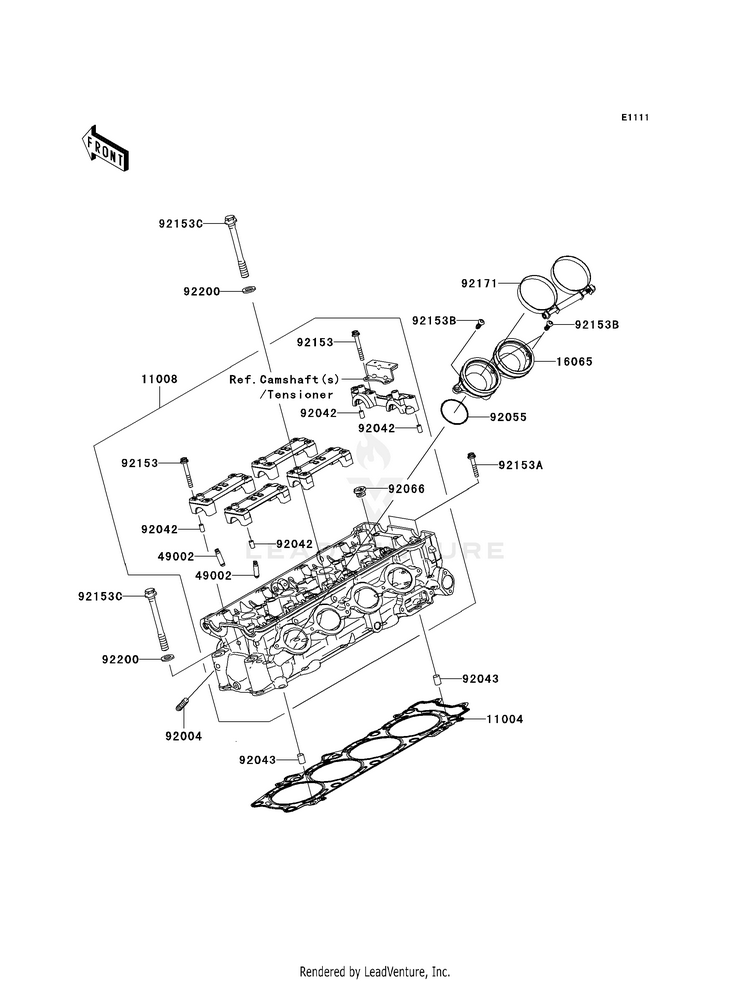

2008 Kawasaki Ninja ZX-14R Cylinder Head OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11004	11004-0059	GASKET-HEAD	1 In-Stock
11008	11008-0743 (replaces part # 11008-0125)	HEAD-COMP-CYLINDER	Usually ships in 7-10 business days
16065	16065-0026	HOLDER-CARBURETOR	Usually ships in 7-10 business days
49002	49002-0014	GUIDE-VALVE	Usually ships in 7-10 business days
92004	92004-0025	STUD,8X22	10+ In-Stock
92042	92042-007	PIN,DOWEL,6.3X8X14	10+ In-Stock
92043	92043-1264	PIN,8.2X10X14	10+ In-Stock
92055	92055-1600	RING-O,47X1.9	10+ In-Stock
92066	92066-0832 (replaces part # 92066-0016)	PLUG,18X10	6 In-Stock
92153	92153-0656	BOLT,SOCKET,6X45	10+ In-Stock
92153A	92153-1556	BOLT,SOCKET,6X35	7 In-Stock
92153B	92153-1629	BOLT,TORX,6X18	Usually ships in 7-10 business days
92153C	92153-1674	BOLT,FLANGED-SHALL,11	Usually ships in 7-10 business days
92171	92171-1892 (replaces part # 92171-0759)	CLAMP	Usually ships in 7-10 business days
92200	92200-0341	WASHER,11.5X21X2.3	Usually ships in 7-10 business days
