2008 Kawasaki Vulcan Classic VN1500 Throttle OEM Parts Diagram

Submodel VN1500N8F Vulcan 1500 Classic (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

THROTTLE

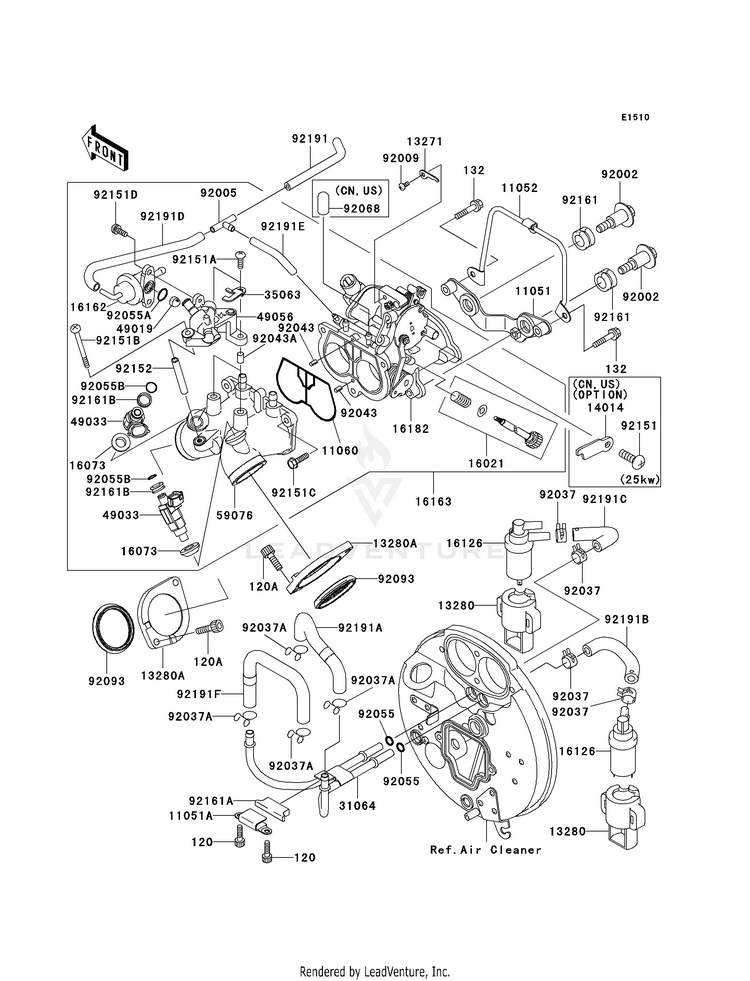

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105111051-1333BRACKET
Usually ships in 7-10 business days
11051A11051-1345BRACKET
Usually ships in 7-10 business days
1105211052-1067BRACKET,HIGH TENSHION
Usually ships in 7-10 business days
1106011060-1928GASKET,THROTTLE BODY
Usually ships in 7-10 business days
120120CB0510

(replaces part #
120S0510)

BOLT-SOCKET,5X10
Usually ships in 7-10 business days
120A120CD0620

(replaces part #
120Z0620)

BOLT-SOCKET
10+ In-Stock
132132BB0625

(replaces part #
132J0625)

BOLT-FLANGED-SMALL,6X25
10+ In-Stock
1327113271-1314PLATE
Usually ships in 7-10 business days
1328013280-1139HOLDER
Usually ships in 7-10 business days
13280A13280-1154HOLDER
Usually ships in 7-10 business days
1401414014-1142PLATE-POSITION | [CN,US] (OPTION)
Usually ships in 7-10 business days
1602116021-1227SCREW-THROTTLE STOP
Usually ships in 7-10 business days
1607316073-1119INSULATOR
Usually ships in 7-10 business days
1612616126-1372VALVE
Usually ships in 7-10 business days
1616216162-1054REGULATOR-FUEL
Usually ships in 7-10 business days
1616316163-1099THROTTLE-ASSY
Usually ships in 7-10 business days
1618216182-1002BODY-THROTTLE
Usually ships in 7-10 business days
3106431064-1227PIPE-COMP
Usually ships in 7-10 business days
3506335063-1148STAY
Usually ships in 7-10 business days
4901949019-3707FILTER-FUEL,STRAINER
Usually ships in 7-10 business days
4903349033-1057NOZZLE-INJECTION
Usually ships in 7-10 business days
4905649056-1054PIPE-INJECTION
Usually ships in 7-10 business days
5907659076-1110MANIFOLD-INTAKE
Usually ships in 7-10 business days
9200292002-1595BOLT,HEAD COVER
Usually ships in 7-10 business days
9200592005-1366FITTING
Usually ships in 7-10 business days
9200992009-1903SCREW
Usually ships in 7-10 business days
9203792037-1181CLAMP,HOSE CLIP
10+ In-Stock
92037A92037-1271CLAMP,12.5MM
5 In-Stock
9204392043-1600PIN,THROTTLE BODY
Usually ships in 7-10 business days
92043A92043-1601PIN,DELIVERY PIPE
Usually ships in 7-10 business days
9205592055-0290 RING,8MM
4 In-Stock
92055A92055-1620RING-O,FUEL REGULATOR
Not Shipping
92055B92055-1622RING-O,INJECTION NOZZLE
10+ In-Stock
9206892068-006PLUG,12X25 | [CN,US]
10+ In-Stock
9209392093-0072SEAL
6 In-Stock
9215192151-1528BOLT | [CN,US] (OPTION)
Usually ships in 7-10 business days
92151A92151-1585BOLT,5X20
Usually ships in 7-10 business days
92151B92151-1586BOLT,5X75
Usually ships in 7-10 business days
92151C92151-1587BOLT,THROTTLE BODY
Usually ships in 7-10 business days
92151D92151-1588BOLT,6X12
Not Shipping
9215292152-1206COLLAR,DELIVERY PIPE
Usually ships in 7-10 business days
9216192161-1058DAMPER
Usually ships in 7-10 business days
92161A92161-1062DAMPER
Usually ships in 7-10 business days
92161B92161-1083DAMPER,INJECTION NOZZ
Usually ships in 7-10 business days
9219192191-1298TUBE,THROTTLE-BOOST
Usually ships in 7-10 business days
92191A92191-1366TUBE,FRONT PORT,RED
Usually ships in 7-10 business days
92191B92191-1367TUBE,REAR VALVE,RED
Usually ships in 7-10 business days
92191C92191-1368TUBE,FRONT VALVE,BLUE
Usually ships in 7-10 business days
92191D92191-1402TUBE,L=130
Usually ships in 7-10 business days
92191E92191-1403TUBE,L=55
Usually ships in 7-10 business days
92191F92191-1564TUBE,REAR PORT,BLUE
Usually ships in 7-10 business days
