2008 Kawasaki Vulcan Nomad VN1600D Clutch OEM Parts Diagram

Submodel VN1600D8F Vulcan 1600 Nomad (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

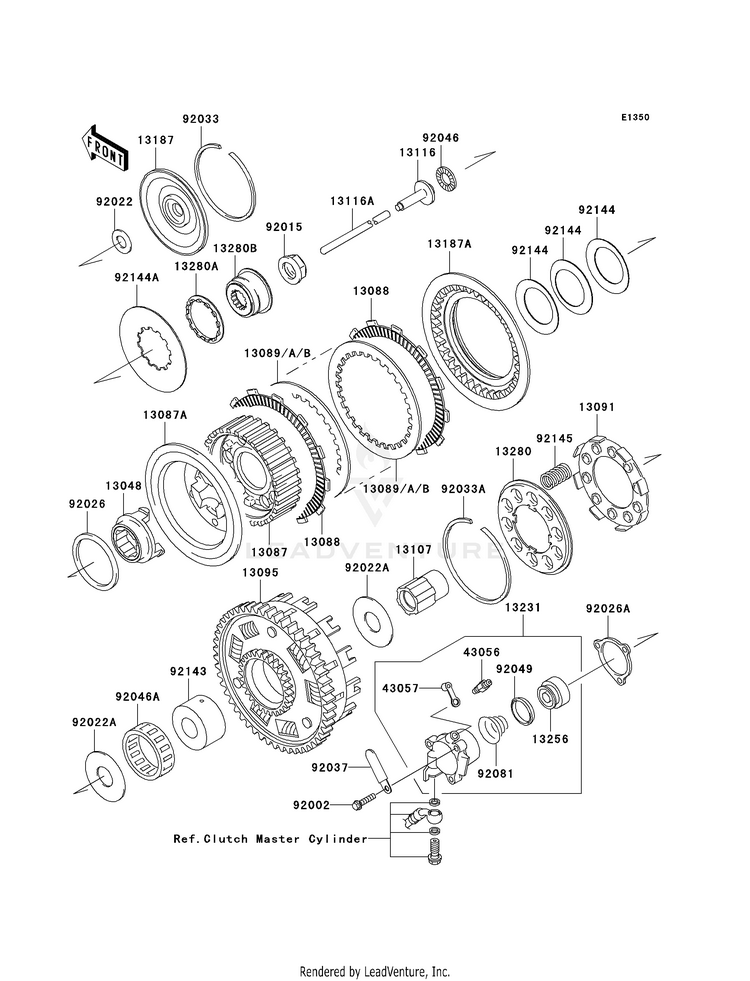

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1304813048-0015

(replaces part #
13048-1087)

CAM-DAMPER
Usually ships in 7-10 business days
1308713087-1103HUB-CLUTCH,OUTER
Usually ships in 7-10 business days
13087A13087-1110HUB-CLUTCH,INNER
Usually ships in 7-10 business days
1308813088-1146PLATE-FRICTION
8 In-Stock
1308913089-1075PLATE-CLUTCH,T=2.0
10+ In-Stock
13089A13089-1080PLATE-CLUTCH,T=1.6
5 In-Stock
13089B13089-1081PLATE-CLUTCH,T=2.3
10+ In-Stock
1309113091-1495HOLDER,DAMPER SPRING
Usually ships in 7-10 business days
1309513095-1395HOUSING-COMP-CLUTCH
Usually ships in 7-10 business days
1310713107-1237SHAFT,CLUTCH CAM DAMPER
Usually ships in 7-10 business days
1311613116-1102ROD-PUSH,CLUTCH
Usually ships in 7-10 business days
13116A13116-1132ROD-PUSH
Usually ships in 7-10 business days
1318713187-1063PLATE-CLUTCH OPERATING
Usually ships in 7-10 business days
13187A13187-1066PLATE-CLUTCH OPERATING
Usually ships in 7-10 business days
1323113231-1071RELEASE-ASSY-CLUTCH
Usually ships in 7-10 business days
1325613256-1052PISTON
Usually ships in 7-10 business days
1328013280-1303HOLDER,DAMPER SPRING
Usually ships in 7-10 business days
13280A13280-1306HOLDER
Usually ships in 7-10 business days
13280B13280-1307HOLDER
Usually ships in 7-10 business days
4305643056-1056

(replaces part #
43056-1055)

BREATHER-BRAKE
10+ In-Stock
4305743057-1001CAP-BREATHER
10+ In-Stock
9200292002-1612BOLT,6X25
Usually ships in 7-10 business days
9201592015-1461NUT,20MM
Usually ships in 7-10 business days
9202292022-1463WASHER,15.1X29X1.0
3 In-Stock
92022A92022-1857WASHER,25.3X56X2.0
Usually ships in 7-10 business days
9202692026-1043SPACER,59X70X3.5
Usually ships in 7-10 business days
92026A92026-1263SPACER,CLUTCH RELEASE
3 In-Stock
9203392033-1238RING-SNAP
Usually ships in 7-10 business days
92033A92033-1239RING-SNAP
Usually ships in 7-10 business days
9203792037-1539CLAMP,L=45
8 In-Stock
9204692046-1052BEARING-NEEDLE,AXK1102
10+ In-Stock
92046A92046-1175BEARING-NEEDLE
Usually ships in 7-10 business days
9204992049-1165SEAL-OIL,PISTON
5 In-Stock
9208192081-1644SPRING,CLUTCH RELEASE
3 In-Stock
9214392143-1076COLLAR,INPUT SHAFT
Usually ships in 7-10 business days
9214492144-1188SPRING,LIMITER
Usually ships in 7-10 business days
92144A92144-1295SPRING,CLUTCH
Usually ships in 7-10 business days
9214592145-1243SPRING
Usually ships in 7-10 business days
