2008 Kawasaki Vulcan Nomad VN1600D Ignition System OEM Parts Diagram

Submodel VN1600D8FA Vulcan 1600 Nomad (2008)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

IGNITION SYSTEM

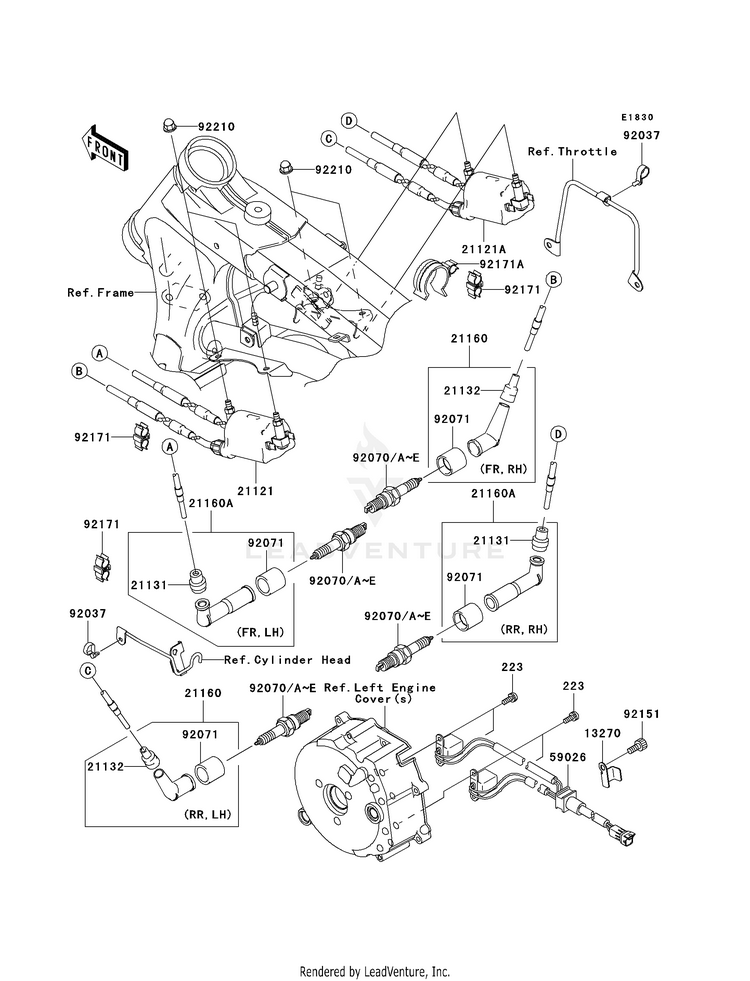

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1327013270-1979PLATE
Usually ships in 7-10 business days
2112121121-0003COIL-IGNITION,FR
Usually ships in 7-10 business days
21121A21121-0004COIL-IGNITION,RR
Usually ships in 7-10 business days
2113121131-005GROMMET,HIGH TENSION
4 In-Stock
2113221132-005GROMMET,HIGH TENSION
8 In-Stock
2116021160-0004CAP-ASSY-PLUG
Usually ships in 7-10 business days
21160A21160-1091CAP-ASSY-PLUG
Usually ships in 7-10 business days
223223AA0516

(replaces part #
223B0516)

SCREW-PAN-WS-CROS,5X16
1 In-Stock
5902659026-1157COIL-PULSING
Not Shipping
9203792037-1290CLAMP,SPEED,L=43
5 In-Stock
92070ADPR7EA9

(replaces part #
92070-1125)

SPARK PLUG DPR7EA-9 | (OPTION)
10+ In-Stock
92070BDPR6EA9

(replaces part #
92070-1138)

SPARK PLUG DPR6EA9
10+ In-Stock
92070D92070-1250SPARK PLUG DPR5EA-9 | (OPTION)
10+ In-Stock
9207192071-1184GROMMET,PLUG CAP
9 In-Stock
9215192151-3704BOLT,SOCKET,6X10
Usually ships in 7-10 business days
9217192171-0129CLAMP
Usually ships in 7-10 business days
92171A92171-0130CLAMP
Usually ships in 7-10 business days
9221092210-0003NUT,CAP,6MM
10+ In-Stock
