Assemblies

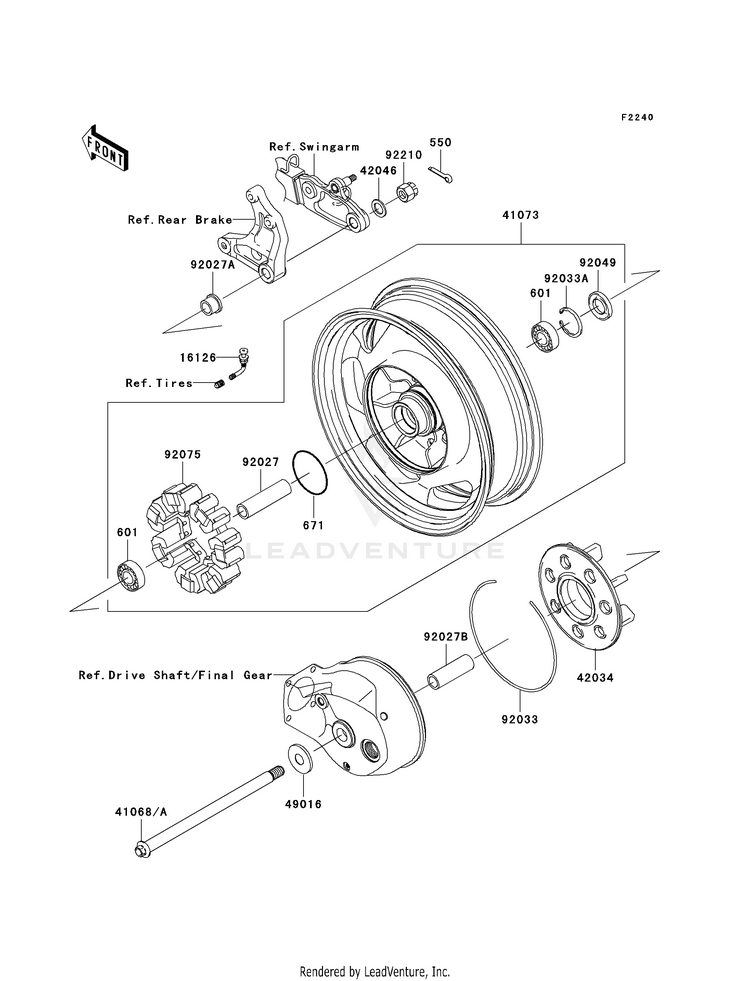

2008 Kawasaki Vulcan Nomad VN1600D Rear Wheel/Chain OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
16126	16126-1365	VALVE	Usually ships in 7-10 business days
41068	41068-0045	AXLE,RR	Usually ships in 7-10 business days
41073	41073-0032	WHEEL-ASSY,RR	Usually ships in 7-10 business days
42034	42034-0754 (replaces part # 42034-0002)	COUPLING,RR HUB	Usually ships in 7-10 business days
42046	42046-003	WASHER,21X33X2.6	Usually ships in 7-10 business days
49016	49016-1019	COVER-SEAL	Usually ships in 7-10 business days
550	550AA4035 (replaces part # 550D4035)	PIN-COTTER,4.0X35	10+ In-Stock
601	601B6304UU	BEARING-BALL,#6304UUC3	2 In-Stock
671	671B2580	O RING,80MM	Usually ships in 7-10 business days
92027	92027-1901	COLLAR,20.2X28X105.5	Usually ships in 7-10 business days
92027A	92027-1902	COLLAR,RR AXLE,L=21.5	Usually ships in 7-10 business days
92027B	92027-1969	COLLAR,20.2X28X86	Usually ships in 7-10 business days
92033	92033-1230 (replaces part # 92033-0012)	RING-SNAP,220MM	Usually ships in 7-10 business days
92033A	92033-1043	RING-SNAP,52MM	4 In-Stock
92049	92049-1061	SEAL-OIL,28X52X5	1 In-Stock
92075	92075-1121	DAMPER,SHOCK,RR HUB	Usually ships in 7-10 business days
92210	92210-1134	NUT,CASTLE,18MM	Usually ships in 7-10 business days
