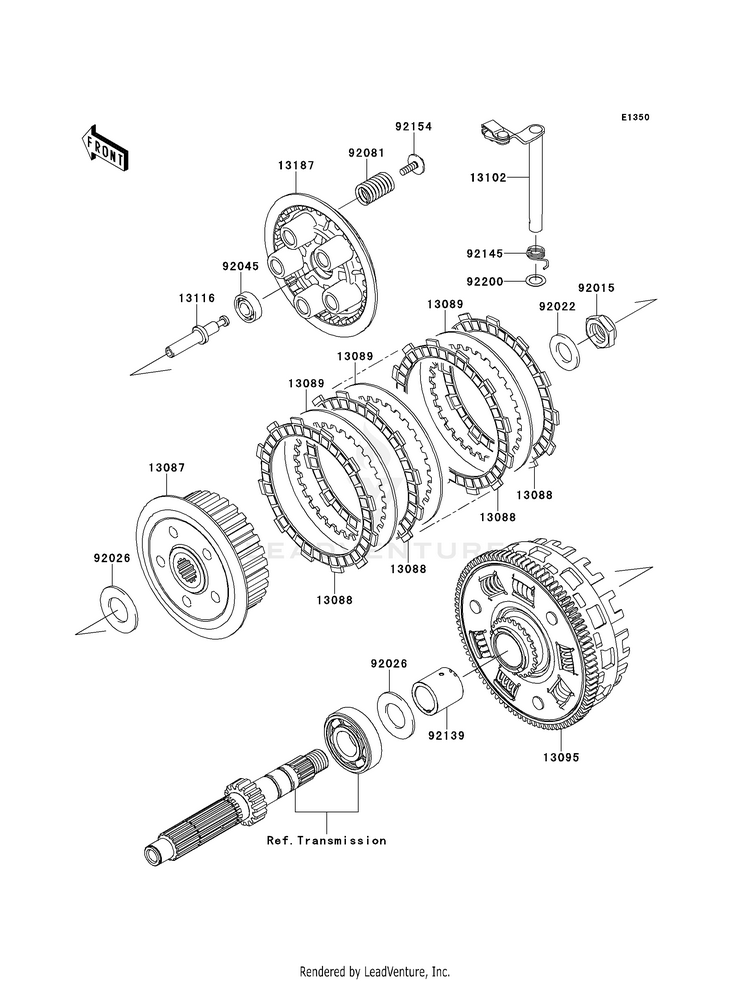

2009 Kawasaki ER650C (ER-6n) Clutch OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13087	13087-0046	HUB-CLUTCH	Usually ships in 7-10 business days
13088	13088-1105	PLATE-FRICTION	10+ In-Stock
13089	13089-0016	PLATE-CLUTCH,T=2.3	10+ In-Stock
13095	13095-0115	HOUSING-COMP-CLUTCH	Usually ships in 7-10 business days
13102	13102-0037	RELEASE-COMP-CLUTCH	Usually ships in 7-10 business days
13116	13116-0035	ROD-PUSH	Usually ships in 7-10 business days
13187	13187-0017	PLATE-CLUTCH OPERATING	Usually ships in 7-10 business days
92015	92015-1555	NUT,20MM	7 In-Stock
92022	92022-1868	WASHER,20.3X36X3.7	7 In-Stock
92026	92026-022	SPACER,25.5X47X2.5	Usually ships in 7-10 business days
92045	92045-1235	BEARING-BALL,6001C3ML01	10+ In-Stock
92081	92081-1033	SPRING,CLUTCH	10+ In-Stock
92139	92139-0106	BUSHING	Usually ships in 7-10 business days
92145	92145-0066	SPRING,CLUTCH RELEASE	Usually ships in 7-10 business days
92154	92154-0079	BOLT,UPSET-WP,6X20	Usually ships in 7-10 business days
92200	92200-1487	WASHER,12X18.5X0.5	7 In-Stock
