2009 Kawasaki ER650C (ER-6n) Front Fork OEM Parts Diagram

Submodel ER650C9F ER-6n (2009)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

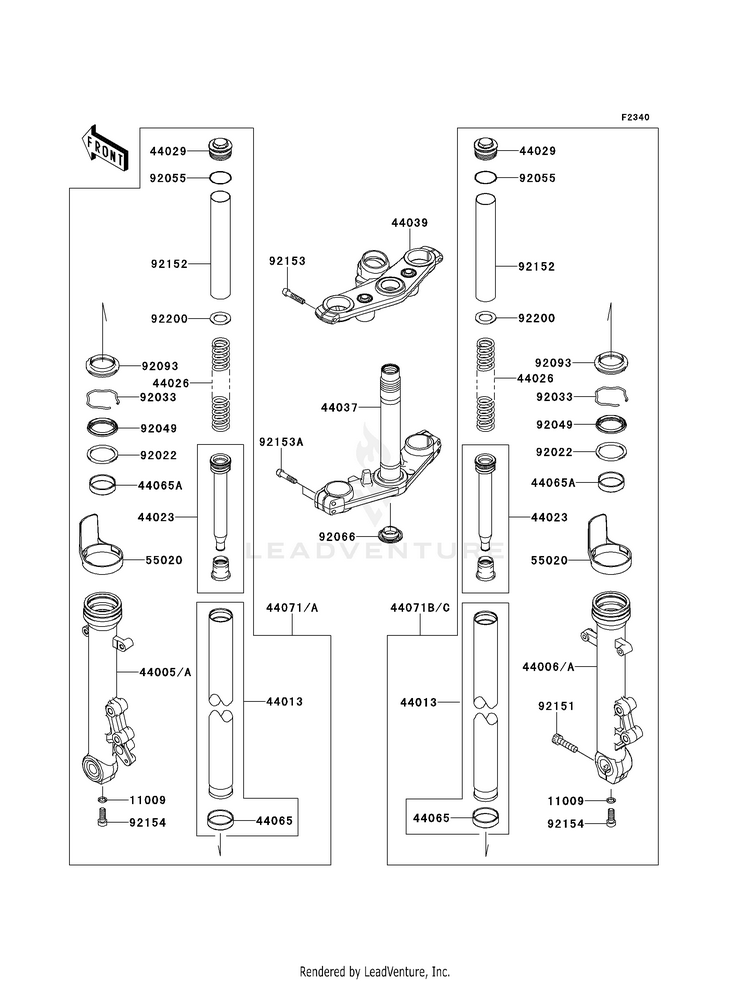

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100944045-057

(replaces part #
11009-1325)

GASKET,FORK CYLINDER
10+ In-Stock
44005A44005-0066-458PIPE-LEFT FORK OUTER,
Usually ships in 7-10 business days
44006A44006-0062-458PIPE-RIGHT FORK OUTER
Usually ships in 7-10 business days
4401344013-0055PIPE-FORK INNER
Usually ships in 7-10 business days
4402344023-0072CYLINDER-SET-FORK
Usually ships in 7-10 business days
4402644026-0133SPRING-FRONT FORK
Usually ships in 7-10 business days
4402944029-0005SEAT-FORK SPRING
Usually ships in 7-10 business days
4403744037-0100

(replaces part #
44037-0106)

HOLDER-FORK UNDER
Usually ships in 7-10 business days
4403944039-0089HOLDER-FORK UPPER
Usually ships in 7-10 business days
4406544065-0014BUSHING-FRONT FORK,INNER TUBE
6 In-Stock
44065A44065-1115BUSHING-FRONT FORK,OUTER TUBE
7 In-Stock
44071A44071-0543-458DAMPER-ASSY,FORK,LH,P
Usually ships in 7-10 business days
44071C44071-0544-458DAMPER-ASSY,FORK,RH,P
Usually ships in 7-10 business days
5502055020-1691GUARD,FORK
Usually ships in 7-10 business days
9202292022-1298WASHER,FORK OUTER TUBE
Usually ships in 7-10 business days
9203392033-1036RING-SNAP
9 In-Stock
9204992049-0073SEAL-OIL
7 In-Stock
9205592055-1321RING-O
6 In-Stock
9206692066-0032PLUG
Usually ships in 7-10 business days
9209392093-1472SEAL,FORK OUTER TUBE
9 In-Stock
9215192151-1357BOLT,SOCKET,10X40
Usually ships in 7-10 business days
9215292152-0767COLLAR,FORK
Usually ships in 7-10 business days
9215392153-0506BOLT,SOCKET,8X40
Usually ships in 7-10 business days
92153A92153-1472BOLT,SOCKET,8X35
Usually ships in 7-10 business days
9215492154-0296BOLT,SOCKET,FORK CYLINDER
Usually ships in 7-10 business days
9220092200-1302WASHER
Usually ships in 7-10 business days
