2009 Kawasaki Vulcan Classic LT VN1700 Cooling OEM Parts Diagram

Submodel VN1700G9F Vulcan 1700 Classic LT (2009)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

COOLING

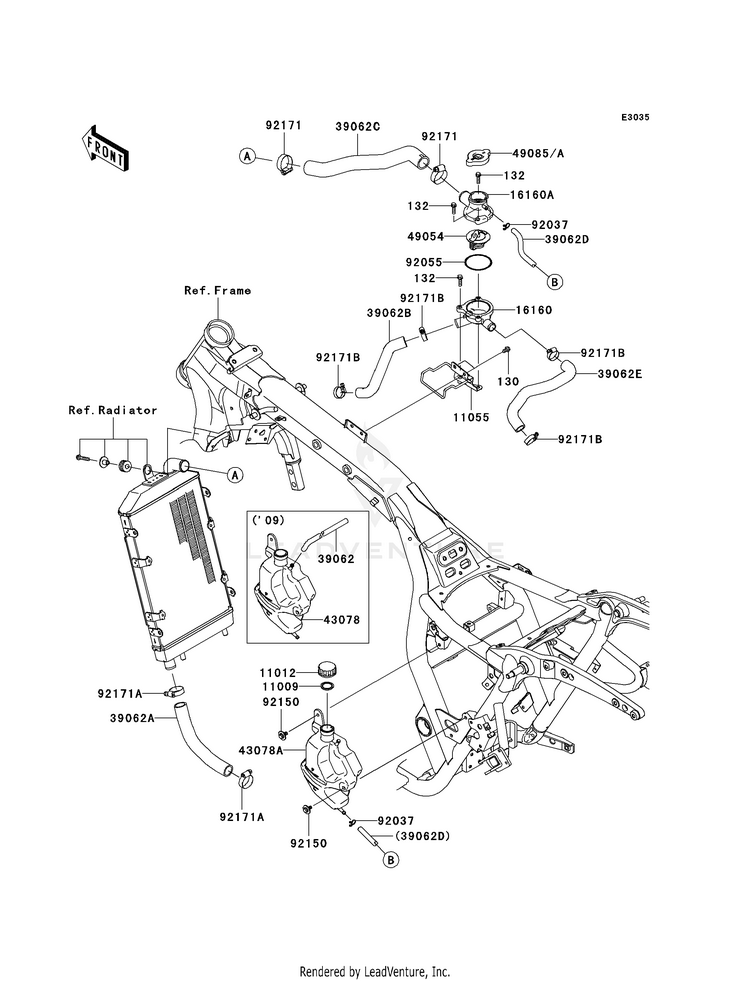

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
1105511055-0571BRACKET,THERMOCASE
Usually ships in 7-10 business days
130130BA0610BOLT-FLANGED,6X10
10+ In-Stock
132132BA0620BOLT-FLANGED-SMALL,6X20
10+ In-Stock
1616016160-0780

(replaces part #
16160-0158)

BODY,LWR
Usually ships in 7-10 business days
16160A16160-0775

(replaces part #
16160-1152)

BODY,UPP
Usually ships in 7-10 business days
3906239062-0107HOSE-COOLING,OVER FLO
Usually ships in 7-10 business days
39062A39062-0244HOSE-COOLING,RAD-W/P IN PIPE
Usually ships in 7-10 business days
39062B39062-0245HOSE-COOLING,FR HEAD-THERMO
Usually ships in 7-10 business days
39062C39062-0247HOSE-COOLING,THERMO-RAD
Usually ships in 7-10 business days
39062D39062-0291HOSE-COOLING
Usually ships in 7-10 business days
39062E39062-0315HOSE-COOLING,RR HEAD-THERMO
Usually ships in 7-10 business days
4307843078-0061RESERVOIR
Usually ships in 7-10 business days
4905449054-0004

(replaces part #
49054-1067)

THERMOSTAT
10+ In-Stock
4908549085-1070CAP-ASSY-PRESSURE,P1.1
6 In-Stock
9203792037-147CLAMP,TUBE
10+ In-Stock
9205592055-112RING-O,53.5X2.6
10+ In-Stock
9215092150-1504

(replaces part #
92150-1392)

BOLT
8 In-Stock
9217192171-0179CLAMP
10+ In-Stock
92171A92171-0261CLAMP
10+ In-Stock
92171B92171-0338CLAMP
10+ In-Stock
