2009 Kawasaki Vulcan Classic LT VN1700 Front Brake OEM Parts Diagram

Submodel VN1700G9F Vulcan 1700 Classic LT (2009)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BRAKE

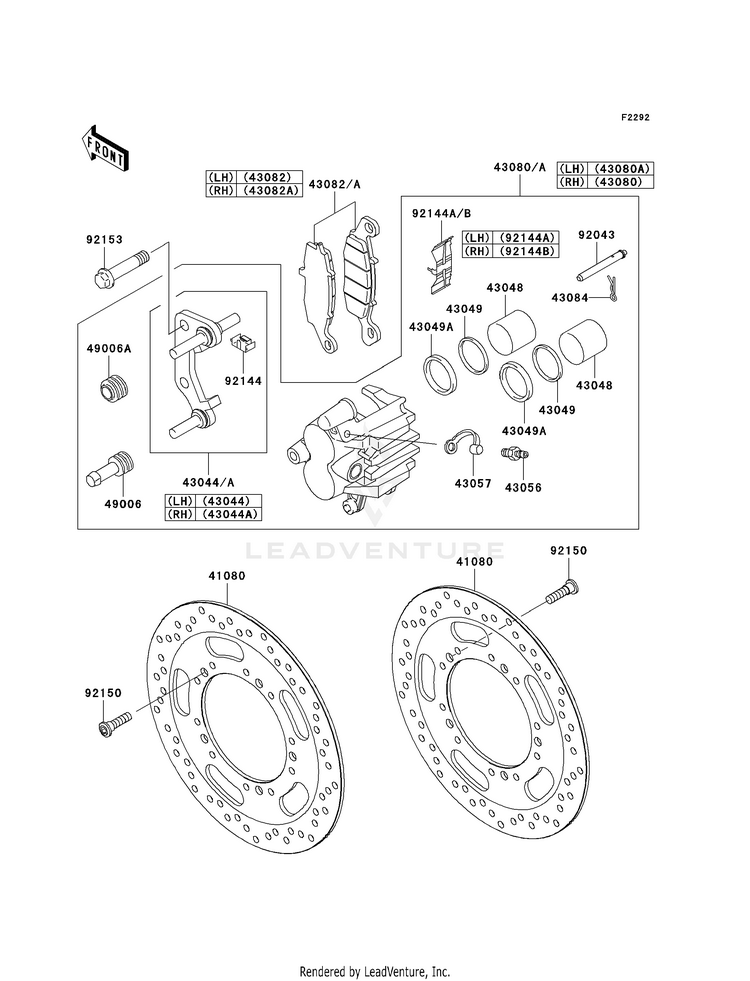

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
4108041080-0181-CMDISC,FR,SILVER
Usually ships in 7-10 business days
4304443044-1115HOLDER-COMP-CALIPER,FR,LH
Usually ships in 7-10 business days
43044A43044-1116HOLDER-COMP-CALIPER,FR,RH
Usually ships in 7-10 business days
4304843048-1073PISTON-CALIPER
Usually ships in 7-10 business days
4304943049-1068PACKING
9 In-Stock
43049A43049-1092PACKING,PISTON SEAL
10+ In-Stock
4305643085-001

(replaces part #
43056-1054)

BLEEDER SET
4 In-Stock
4305743057-003CAP-BREATHER
10+ In-Stock
4308043080-5015-GNCALIPER-SUB-ASSY,FR,R
Usually ships in 7-10 business days
43080A43080-5017-GNCALIPER-SUB-ASSY,FR,L
Usually ships in 7-10 business days
4308243082-0061PAD-ASSY-BRAKE,LH
Usually ships in 7-10 business days
43082A43082-0062PAD-ASSY-BRAKE,RH
Usually ships in 7-10 business days
4308443084-003CLAMP,PAD
10+ In-Stock
4900649006-1054BOOT,CALIPER
10+ In-Stock
49006A49006-1095BOOT,CALIPER
5 In-Stock
9204392043-1489PIN,PAD
Usually ships in 7-10 business days
9214492144-1831SPRING,STOPPER
8 In-Stock
92144A92144-1832SPRING,PAD,LH
Usually ships in 7-10 business days
92144B92144-1844SPRING,PAD,RH
Usually ships in 7-10 business days
9215092154-1865

(replaces part #
92150-1771)

BOLT,SOCKET,8X30
10+ In-Stock
9215392153-0740BOLT,FLANGED,10X47
Usually ships in 7-10 business days
