2009 Kawasaki Vulcan Classic LT VN1700 Front Master Cylinder OEM Parts Diagram

Submodel VN1700G9F Vulcan 1700 Classic LT (2009)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

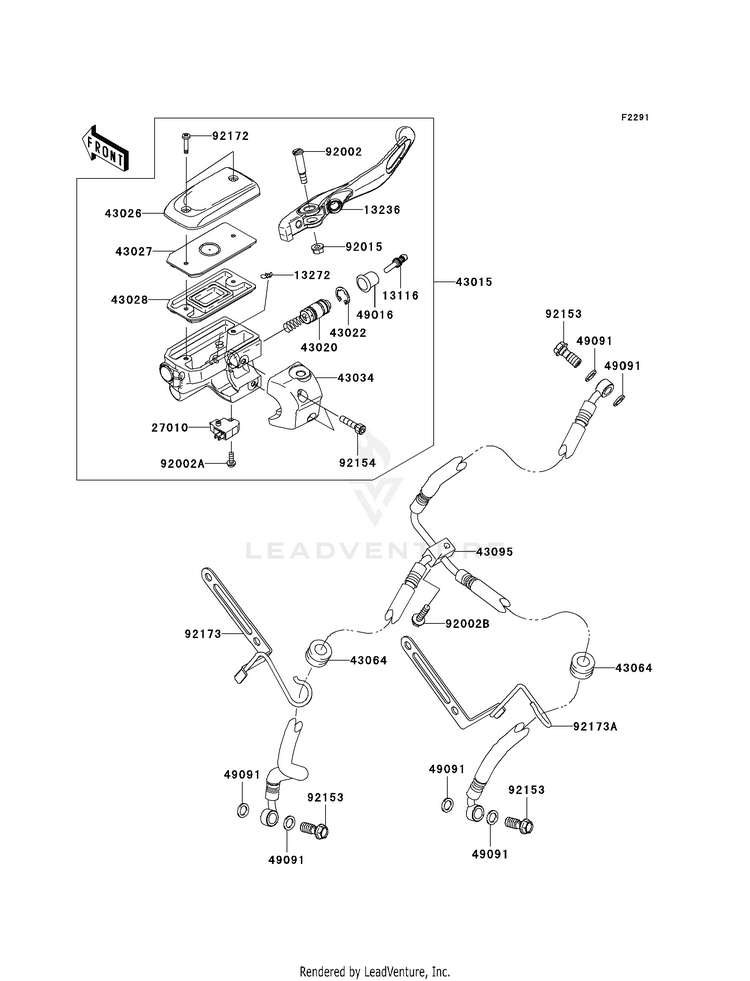

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1311613116-0039ROD-PUSH
Usually ships in 7-10 business days
1323613236-0181LEVER-COMP,FRONT BRAK
Usually ships in 7-10 business days
1327213272-0573PLATE
Usually ships in 7-10 business days
2701027010-1170

(replaces part #
27010-0025)

SWITCH,BRAKE
4 In-Stock
4301543015-0568

(replaces part #
43015-0131)

CYLINDER-ASSY-MASTER,
Usually ships in 7-10 business days
4302043020-0014PISTON-COMP-BRAKE
Usually ships in 7-10 business days
4302243022-1010STOPPER-BRAKE,PISTON
8 In-Stock
4302643026-0017CAP-BRAKE
Usually ships in 7-10 business days
4302743027-0004PLATE-DIAPHRAGM
Usually ships in 7-10 business days
4302843028-0010DIAPHRAGM
Usually ships in 7-10 business days
4303443034-0041HOLDER-BRAKE,MASTER CYLINDER
Usually ships in 7-10 business days
4306443064-006GROMMET,HOSE CLAMP
4 In-Stock
4309543095-0458HOSE-BRAKE,FR
Usually ships in 7-10 business days
4901649016-1044COVER-SEAL,MASTER CYLINDER
6 In-Stock
4909149091-0001WASHER-SEAL,10.1X14.5X1.5
10+ In-Stock
9200292002-1322BOLT,LEVER SET,BLACK
2 In-Stock
92002A92002-1323BOLT,SCREW,4X12
5 In-Stock
92002B92002-1912BOLT,6X25
Usually ships in 7-10 business days
9201592015-1233NUT,FLANGED,6MM,BLACK
10+ In-Stock
9215392153-0627BOLT,OIL,L=23
10+ In-Stock
9215492154-0167BOLT,SOCKET
Usually ships in 7-10 business days
9217292172-0385SCREW,4MM
Usually ships in 7-10 business days
9217392173-0073CLAMP,FRONT BRAKE HOS
Usually ships in 7-10 business days
92173A92173-0074CLAMP,FRONT FENDER,RH
Usually ships in 7-10 business days
