2009 Kawasaki Vulcan Classic LT VN1700 Fuel Tank OEM Parts Diagram

Submodel VN1700G9F Vulcan 1700 Classic LT (2009)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

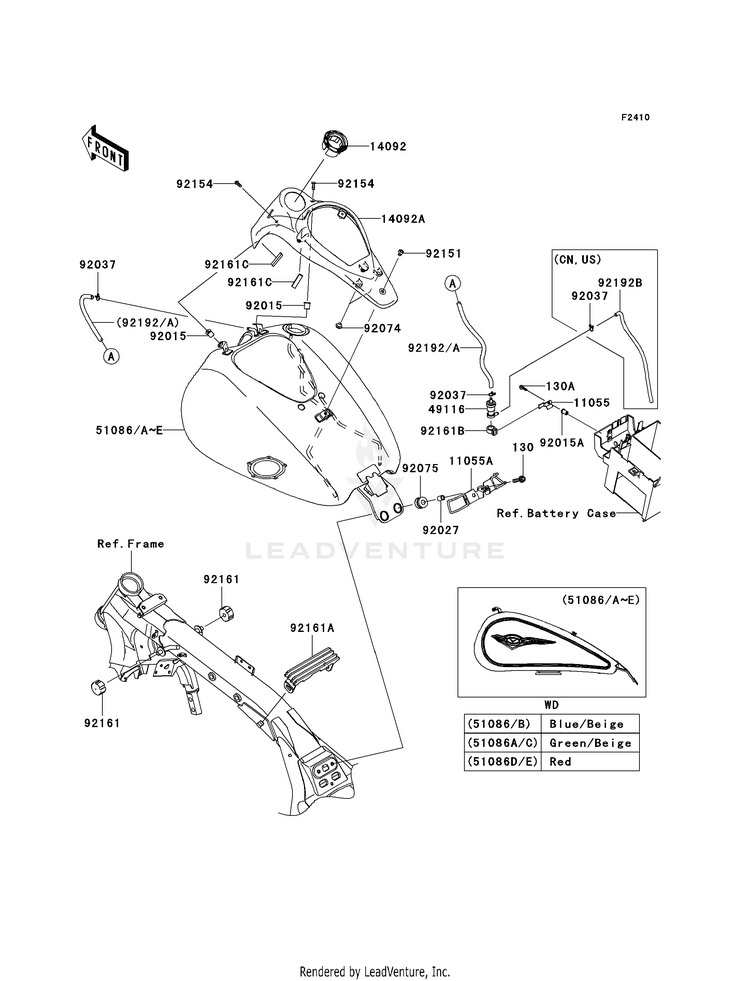

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105511055-1512BRACKET,CHECK VALVE
Usually ships in 7-10 business days
11055A11055-1552BRACKET,SEAT
Usually ships in 7-10 business days
130130BA0830BOLT-FLANGED,8X30
8 In-Stock
130A130BB0516BOLT-FLANGED,5X16
9 In-Stock
1409214092-0046COVER,IGNITION SWITCH
Usually ships in 7-10 business days
14092A14092-0117COVER,METER
Usually ships in 7-10 business days
4911649116-0014VALVE-ASSY,CHECK
Usually ships in 7-10 business days
5108651086-5101-27ATANK-COMP-FUEL,BLUE/B | [CN,US]
Usually ships in 7-10 business days
51086A51086-5103-27BTANK-COMP-FUEL,GREEN/ | [CN,US]
Usually ships in 7-10 business days
51086B51086-5224-27ATANK-COMP-FUEL,BLUE/B | [CA]
Usually ships in 7-10 business days
51086C51086-5225-27BTANK-COMP-FUEL,GREEN/ | [CA]
Usually ships in 7-10 business days
9201592015-1700NUT
5 In-Stock
92015A92015-1757NUT,WELL,5MM
10+ In-Stock
9202792027-034COLLAR,8.8X12X17
Usually ships in 7-10 business days
9203792037-147CLAMP,TUBE | [CN,US]
10+ In-Stock
9207492074-028PLUG,7X2
2 In-Stock
9207592075-1736DAMPER
6 In-Stock
9215192151-1449BOLT,SOCKET,6X10
10+ In-Stock
9215492154-0242BOLT,SOCKET,6X16
Usually ships in 7-10 business days
9216192161-0293DAMPER,FUEL TANK
Usually ships in 7-10 business days
92161A92161-0577DAMPER,FUEL TANK
Usually ships in 7-10 business days
92161B92161-0744DAMPER,CHECK VALVE
Usually ships in 7-10 business days
92161C92161-0804DAMPER,TANK COVER
Usually ships in 7-10 business days
9219292192-0829TUBE,5X10X980 | [CN,US]
Usually ships in 7-10 business days
92192A92192-0830TUBE,5X10X980 | [CA]
Usually ships in 7-10 business days
92192B92192-0837TUBE | [CN,US]
Usually ships in 7-10 business days
