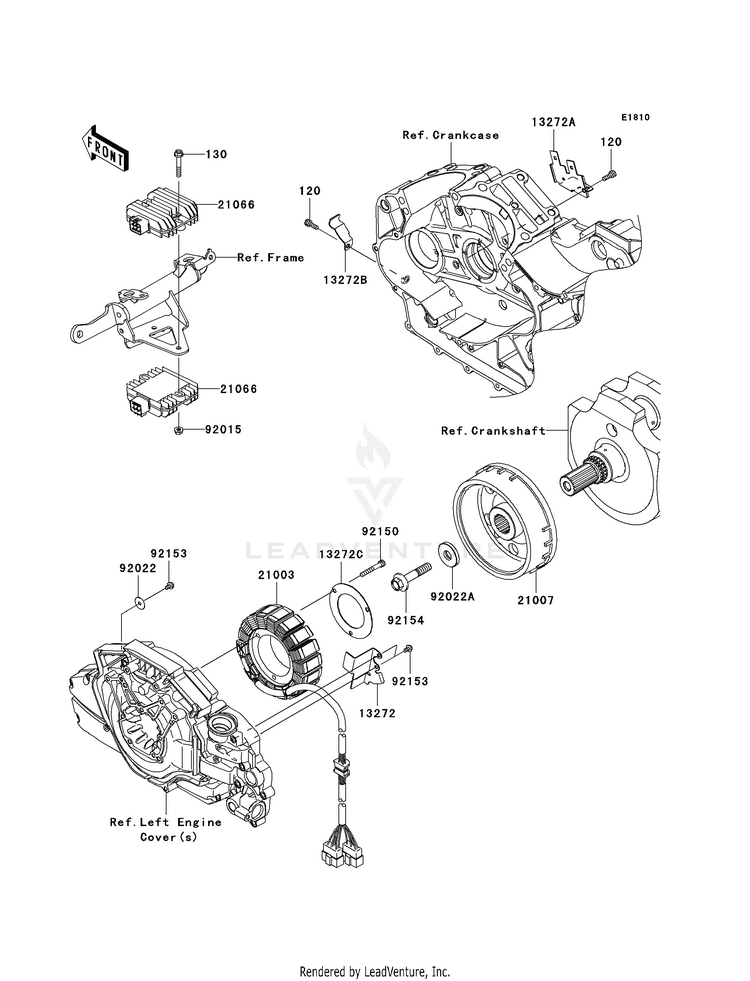

2009 Kawasaki Vulcan Classic LT VN1700 Generator OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
120	120CA0616	BOLT-SOCKET,6X16	10+ In-Stock
130	130BB0640	BOLT-FLANGED,6X40	Usually ships in 7-10 business days
13272	13272-0320	PLATE,INNER GENE. COVER	Usually ships in 7-10 business days
13272A	13272-0426	PLATE,COUPLER	Usually ships in 7-10 business days
13272B	13272-0427	PLATE,FR RH CASE	Usually ships in 7-10 business days
13272C	13272-0683	PLATE,STATOR	Usually ships in 7-10 business days
21003	21003-0076	STATOR	Usually ships in 7-10 business days
21007	21007-0116	ROTOR	Usually ships in 7-10 business days
21066	21066-0729 (replaces part # 21066-0032)	REGULATOR-VOLTAGE	Usually ships in 7-10 business days
92015	92015-1233 (replaces part # 92015-1386)	NUT,FLANGED,6MM,BLACK	10+ In-Stock
92022	92022-1405 (replaces part # 92022-104)	WASHER,5.5X20X1.2	3 In-Stock
92022A	92022-1904	WASHER,12X40X6	Usually ships in 7-10 business days
92150	92150-1958	BOLT,SOCKET,6X40	Usually ships in 7-10 business days
92153	92153-0687	BOLT,5X10	Usually ships in 7-10 business days
92154	92154-0032	BOLT,ROTOR,12X60	Usually ships in 7-10 business days
