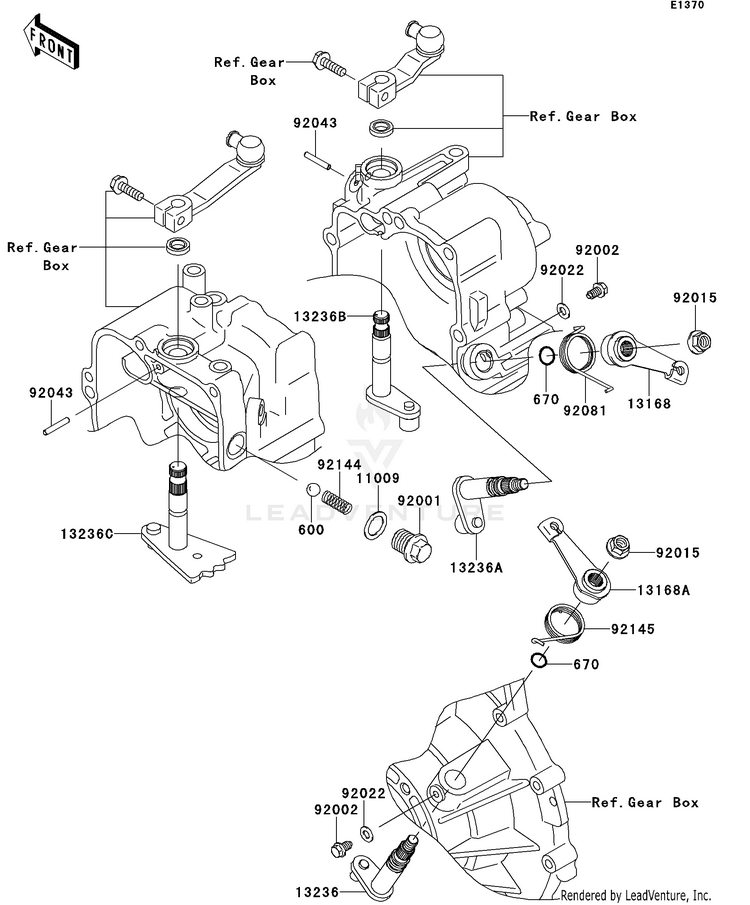

2010 Kawasaki MULE 4010 TRANS 4x4 Diesel Gear Change Mechanism OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11009	11009-1008	GASKET,15.5X22X1	4 In-Stock
13168	13168-1268	LEVER	Usually ships in 7-10 business days
13168A	13168-1523	LEVER,DIFF LOCK	Usually ships in 7-10 business days
13236	13236-1219	LEVER-COMP,DIFF LOCK	Usually ships in 7-10 business days
13236A	13236-1247	LEVER-COMP,CHANGE,2WD/4WD	Usually ships in 7-10 business days
13236B	13236-1360	LEVER-COMP,HI/LOW	Usually ships in 7-10 business days
13236C	13236-1366	LEVER-COMP,FR/RR	4 In-Stock
600	600A1300	BALL-STEEL,13/32	10+ In-Stock
670	670B2010	O RING,10MM	10+ In-Stock
92001	92001-1037	BOLT,NEUTRAL POSITION	Usually ships in 7-10 business days
92002	92002-1962	BOLT,FLANGED-SMALL,6X8.1X2.5	Usually ships in 7-10 business days
92015	92015-1406	NUT,FLANGED,8MM	10+ In-Stock
92022	92022-077	WASHER,6.1X12X1	10+ In-Stock
92043	92043-1415	PIN	Usually ships in 7-10 business days
92081	92081-1853	SPRING	Usually ships in 7-10 business days
92144	92144-1702	SPRING,CHANGE LEVER,FR/RR	Usually ships in 7-10 business days
92145	92145-0253	SPRING	1 In-Stock
