2010 Kawasaki Vulcan Classic LT VN1700 Crankshaft OEM Parts Diagram

Submodel VN1700GAF Vulcan 1700 Classic LT (2010)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT

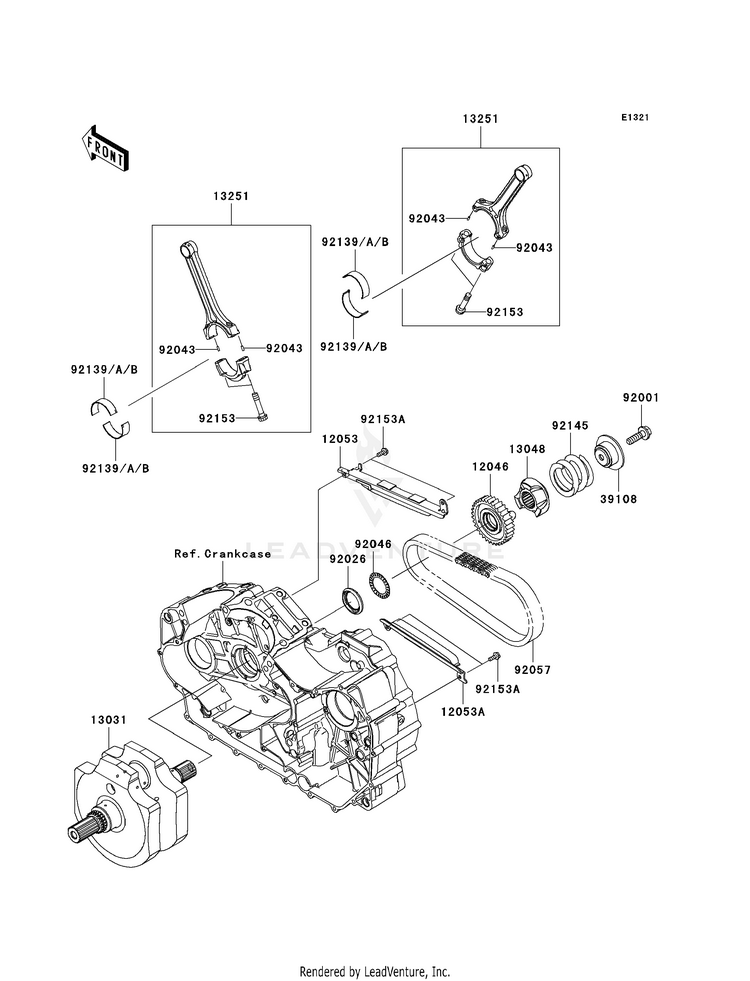

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1204612046-0065SPROCKET,PRIMARY,33T
Usually ships in 7-10 business days
1205312053-0122GUIDE-CHAIN,PRIMARY,UPP
Usually ships in 7-10 business days
12053A12053-0123GUIDE-CHAIN,PRIMARY,L
Usually ships in 7-10 business days
1303113031-0104CRANKSHAFT-COMP
Usually ships in 7-10 business days
1304813048-0017CAM-DAMPER
Usually ships in 7-10 business days
1325113251-0026ROD-ASSY-CONNECTING
Usually ships in 7-10 business days
3910839108-0013RETAINER-SPRING
Usually ships in 7-10 business days
9200192001-1146BOLT,FLANGED,12X40
Usually ships in 7-10 business days
9202692026-0145SPACER
Usually ships in 7-10 business days
9204392043-0033PIN,3X8.5
9 In-Stock
9204692046-0033BEARING-NEEDLE
Usually ships in 7-10 business days
9205792057-0155CHAIN,PRIMARY,89HV303CF-92
Usually ships in 7-10 business days
9213992139-0225BUSHING,CONNECTING ROD,BLUE
Usually ships in 7-10 business days
92139A92139-0226BUSHING,CONNECTING ROD,BLACK
Usually ships in 7-10 business days
92139B92139-0227BUSHING,CONNECTING ROD,BROWN
Usually ships in 7-10 business days
9214592145-0592SPRING,58X11X46.5
Usually ships in 7-10 business days
9215392153-0314BOLT,CONNECTING ROD
Usually ships in 7-10 business days
92153A92153-0713BOLT,FLANGED,6X16
Usually ships in 7-10 business days
