2010 Kawasaki Vulcan Classic LT VN1700 Cylinder Head OEM Parts Diagram

Submodel VN1700GAF Vulcan 1700 Classic LT (2010)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER HEAD

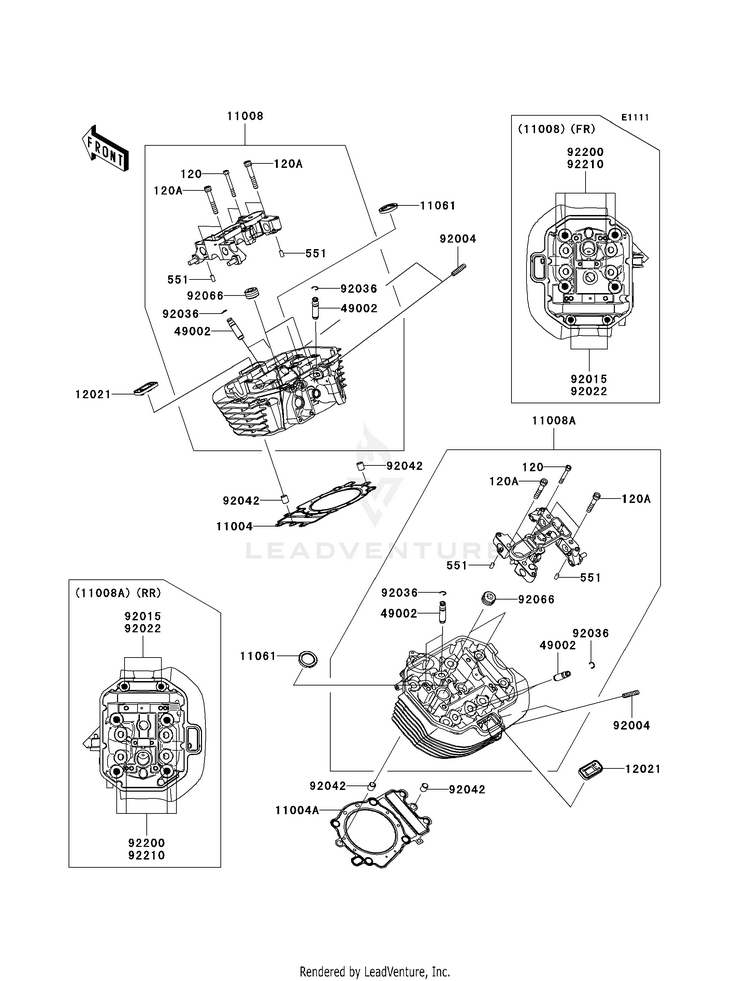

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100411004-0076GASKET-HEAD,FR
Usually ships in 7-10 business days
11004A11004-0077GASKET-HEAD,RR
Usually ships in 7-10 business days
1100811008-0178HEAD-COMP-CYLINDER
Usually ships in 7-10 business days
11008A11008-0179HEAD-COMP-CYLINDER
Usually ships in 7-10 business days
1106111061-0409

(replaces part #
11061-0333)

GASKET,PLUG HOLE
Usually ships in 7-10 business days
120120Q0650BOLT-SOCKET,6X50
Usually ships in 7-10 business days
1202112021-0017VALVE-ASSY-REED
Usually ships in 7-10 business days
120A120Q0850BOLT-SOCKET,8X50
Usually ships in 7-10 business days
4900249002-0707

(replaces part #
49002-0008)

GUIDE-VALVE
Usually ships in 7-10 business days
551551A0612PIN-DOWEL,6X12
10+ In-Stock
9200492004-0046STUD,8X20
Usually ships in 7-10 business days
9201592015-1415

(replaces part #
92015-077)

NUT,FLANGED,10MM
10+ In-Stock
9202292022-3742WASHER,10.2X20X1.5
10+ In-Stock
9203692036-023RING-SNAP,VALVE GUIDE
10+ In-Stock
9204292043-0963

(replaces part #
92042-031)

PIN,12X14
Usually ships in 7-10 business days
9206692066-0002PLUG,PT1/2X12.5
9 In-Stock
9220092200-0422WASHER,12.3X25X3.2
Usually ships in 7-10 business days
9221092210-0546NUT,12MM
Usually ships in 7-10 business days
