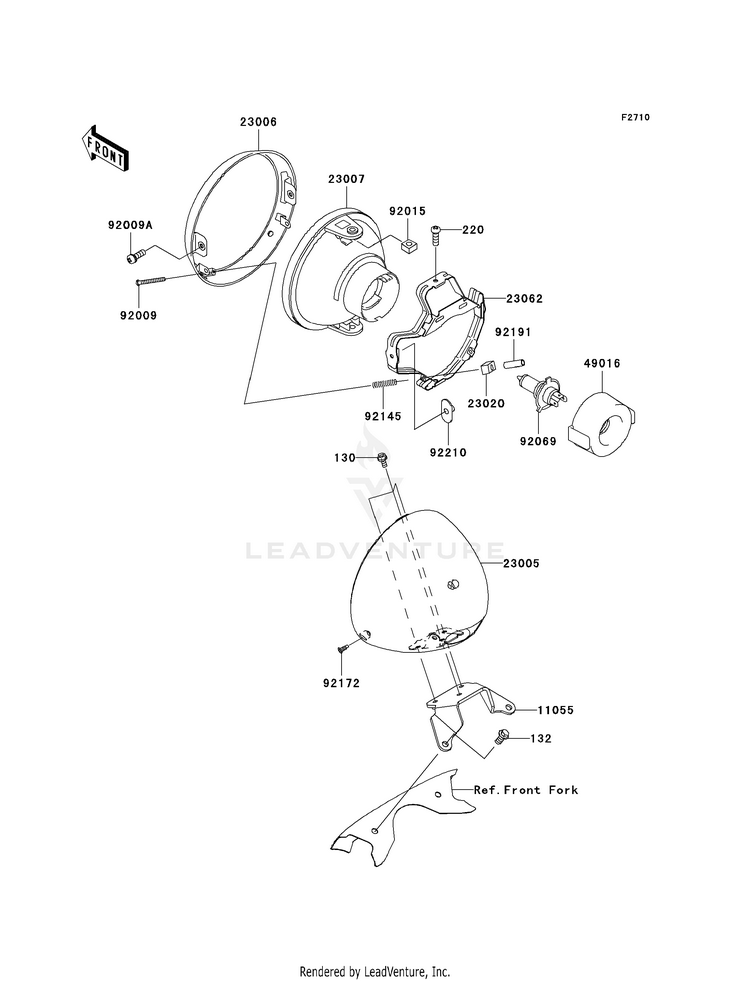

2010 Kawasaki Vulcan Classic VN1700 Headlight(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11055	11055-0436	BRACKET,HEAD LAMP	Usually ships in 7-10 business days
130	130BA0614	BOLT-FLANGED,6X14	10+ In-Stock
132	132BA0816	BOLT-FLANGED-SMALL,8X16	9 In-Stock
220	220AA0516	SCREW-PAN-CROS,5X16	5 In-Stock
23005	23005-0044 (replaces part # 23005-1205)	BODY-COMP-HEAD LAMP	Usually ships in 7-10 business days
23006	23006-1081	RIM-LAMP	Usually ships in 7-10 business days
23007	23007-1396	LENS-COMP,HEAD LAMP	Usually ships in 7-10 business days
23020	23020-018	NUT,4MM,FOCUS ADJUST	2 In-Stock
23062	23062-1132	BRACKET-COMP,HEAD LAMP	Usually ships in 7-10 business days
49016	49016-1203	COVER-SEAL,SOCKET	Usually ships in 7-10 business days
92009	92009-1816	SCREW,FOCUS ADJUST,4X60	2 In-Stock
92009A	92009-1879	SCREW,5X16	Usually ships in 7-10 business days
92015	92015-1157	NUT,5MM	Usually ships in 7-10 business days
92069	92069-0050 (replaces part # 92069-1002)	BULB,12V 60/55W,H4	5 In-Stock
92145	92145-1268	SPRING,HEAD LAMP LENS	2 In-Stock
92172	92172-0145	SCREW,5X14	3 In-Stock
92191	92191-1217	TUBE,3.5X5.5X19	Usually ships in 7-10 business days
92210	92210-1060	NUT,SPECIAL,5MM	Usually ships in 7-10 business days
