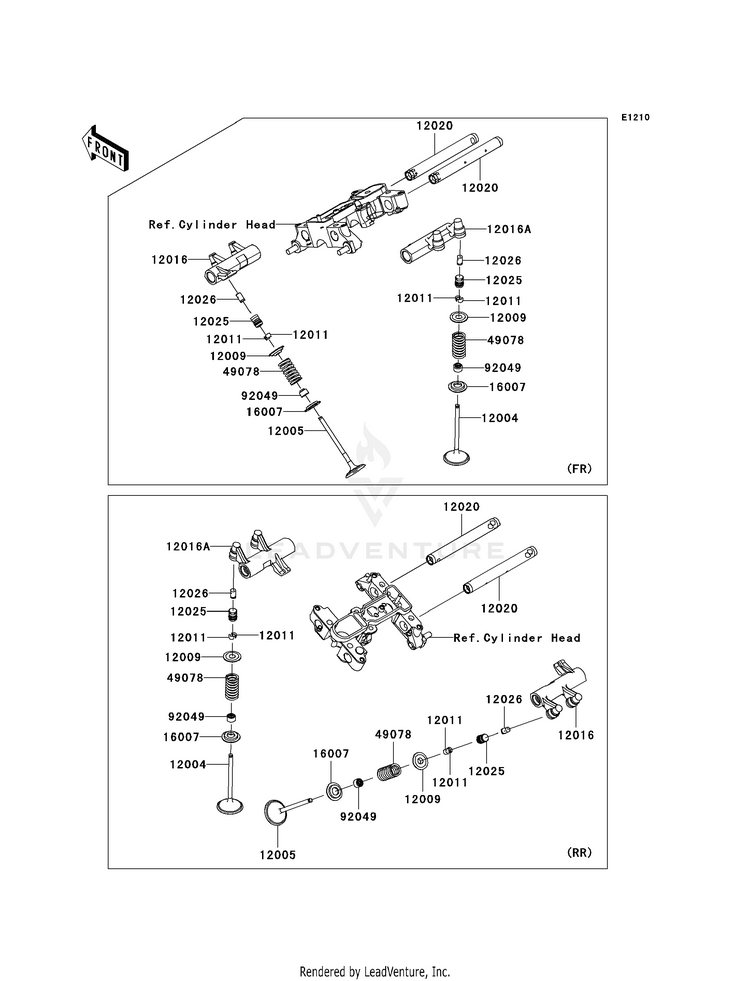

2010 Kawasaki Vulcan Classic VN1700 Valve(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
12004	12004-0001	VALVE-INTAKE	Usually ships in 7-10 business days
12005	12005-0001	VALVE-EXHAUST	Usually ships in 7-10 business days
12009	12009-0002	RETAINER-VALVE SPRING	Usually ships in 7-10 business days
12011	12011-0001	COLLET	Usually ships in 7-10 business days
12016	12016-0027	ARM-ROCKER	Usually ships in 7-10 business days
12016A	12016-0028	ARM-ROCKER	Usually ships in 7-10 business days
12020	12020-0008	SHAFT-ROCKER	Usually ships in 7-10 business days
12025	12025-1053	ADJUSTER-LASH	Usually ships in 7-10 business days
12026	12026-1001	CHAMBER,OIL	Usually ships in 7-10 business days
16007	16007-0001	SEAT-SPRING	Usually ships in 7-10 business days
49078	49078-0001	SPRING-ENGINE VALVE	Usually ships in 7-10 business days
92049	92049-0009	SEAL-OIL,RVC2 6 10.5 9.4	Usually ships in 7-10 business days
